纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-030) - LEVER ASSY, CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
958 次

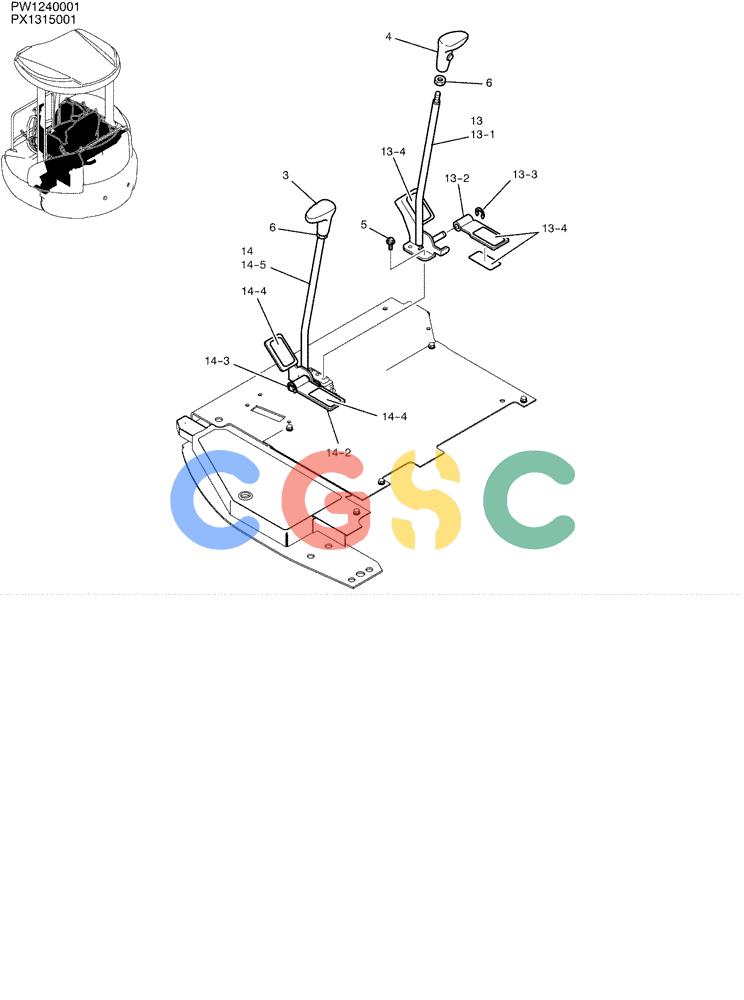

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PM50M00004F3 | [1] | LEVER ASSY., CONTROL | |
| 3. | YN03M01040P1 | [1] | GRIP | KOB |
| 4. | YN03M01286F1 | [1] | GRIP | KOB |
| 5. | PA21C01133P1 | [4] | BOLT | KOB |
| 6. | 2420Z1232 | [2] | NUT | KOB |
| 13. | PF50M01025F1 | [1] | LEVER ASSY. | KOB |
| 13-1. | PF50M01022P1 | [1] | LEVER | KOB |
| 13-2. | PF55M01007P1 | [1] | PEDAL | KOB |
| 13-3. | ZR36X01200 | [1] | RING | KOBRETAINING |
| 13-4. | PF55M01006P1 | [3] | SEAT | KOB |
| 14. | PF50M01025F2 | [1] | LEVER ASSY. | KOB |
| 14-5. | PF50M01023P1 | [1] | LEVER | KOB |
