神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (06-006) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
818 次

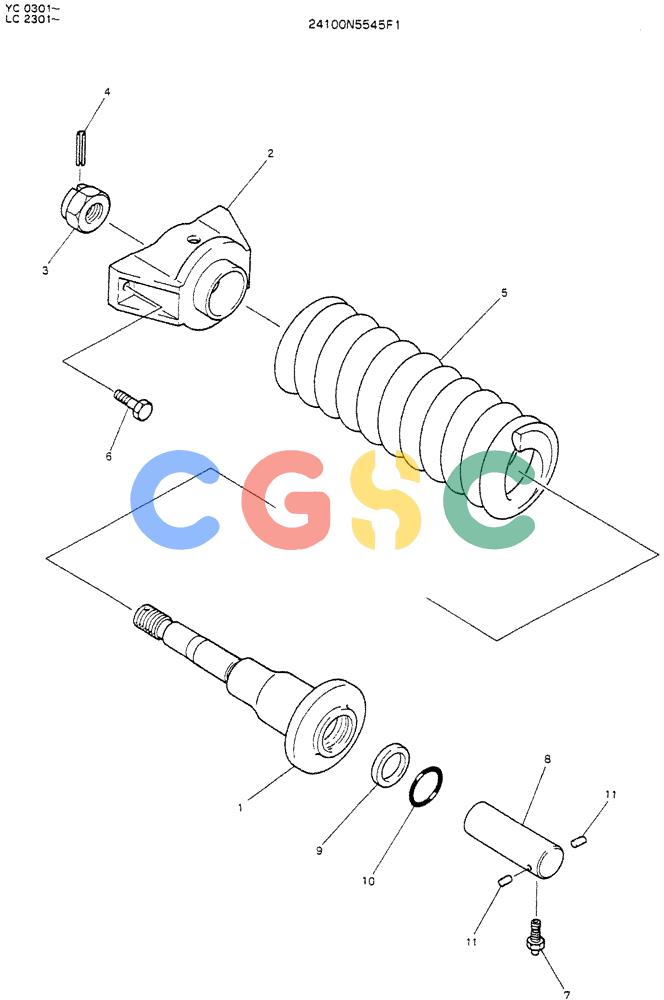

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5545F1 | [1] | SPRING | KOBSPRING ASSY,TRACK Superseded by part number: LC54DU0001F1 |
| 1. | 2438N256 | [1] | CYLINDER | KOB Superseded by part number: LC54DU0002F1 |
| 2. | 2416N3478 | [1] | BRACKET | BRACKET |
| 3. | 2420T4849 | [1] | NUT | KOB |
| 4. | ZP26D08070 | [1] | ROLL PIN | KOB |
| 5. | 2417P265 | [1] | SPRING | KOB |
| 6. | ZS13C24060 | [2] | SCREW | KOBM24x3.0x60mm |
| 7. | 2444R923 | [1] | LUBE NIPPLE | KOBLube -- 5/8" - 18 UNF, Straight Superseded by part number: 2444P803 |
| 8. | 2439P174 | [1] | PISTON | KOB |
| 9. | 2445Z1034 | [1] | GASKET,90mm ID x 105mm OD x 10mm Thk | KOB |
| 10. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 11. | 2419T4748 | [2] | PIN | KOB Superseded by part number: LQ54D01023P1 |
