神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (06-011) - INSTAL, CRAWLER TRACK (FOR LONG CRAWLER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
610 次

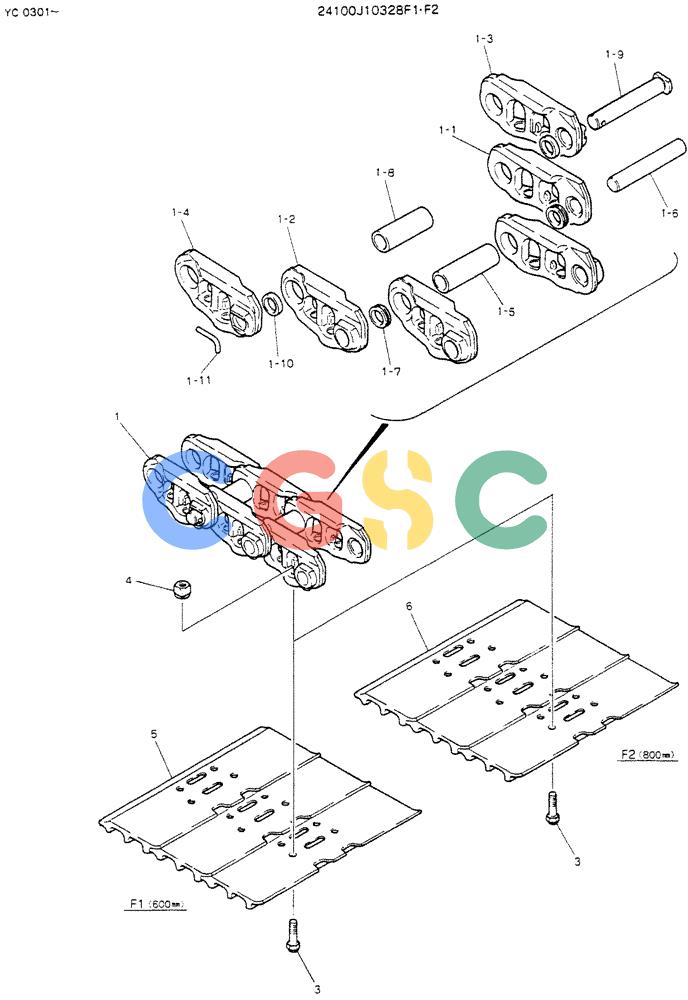

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10328F1 | [1] | INSTAL, TRACK, CRAWL | INSTAL, TRACK, CRAWL |
| 1. | 24100J10382F1 | [2] | CHAIN | KOB Superseded by part number: 24100J10382F3 |
| 1-1. | 2424P104D3 | [49] | CHAIN | KOB |
| 1-2. | 2424P104D4 | [49] | CHAIN | KOB |
| 1-3. | 2424P105D3 | [2] | CONNECTING LINK | KOB |
| 1-4. | 2424P105D4 | [2] | CONNECTING LINK | KOB |
| 1-5. | 2405P508 | [49] | BUSHING | KOB Superseded by part number: 77250360, 2405P709 |
| 1-6. | 2419T4517 | [49] | PIN | KOB |
| 1-7. | 2445Z1427 | [98] | DUST CAP | KOB |
| 1-8. | 2405T1207 | [2] | BUSHING | KOB |
| 1-9. | 2419T4518 | [2] | PIN | KOB Superseded by part number: 2419T7212 |
| 1-10. | 2418T8622 | [4] | COLLAR CLAMP | KOB |
| 1-11. | 2419T3151 | [2] | PIN | KOB |
| 3. | 2420T5546 | [408] | BOLT | KOB |
| 4. | 2420T2751 | [408] | NUT | KOB |
| 5. | 2424N141 | [102] | SHOE | KOB Superseded by part number: 2415N371 |
| . . | 24100J10328F2 | [1] | INSTAL, TRACK, CRAWL INCLUDE ITEM 1,3 & 4 | INSTAL, TRACK, CRAWL INCLUDE ITEM 1,3 & 4 |
| 6. | 2424N142 | [102] | SHOE, 800 GROUSER | SHOE, 800 GROUSER |
