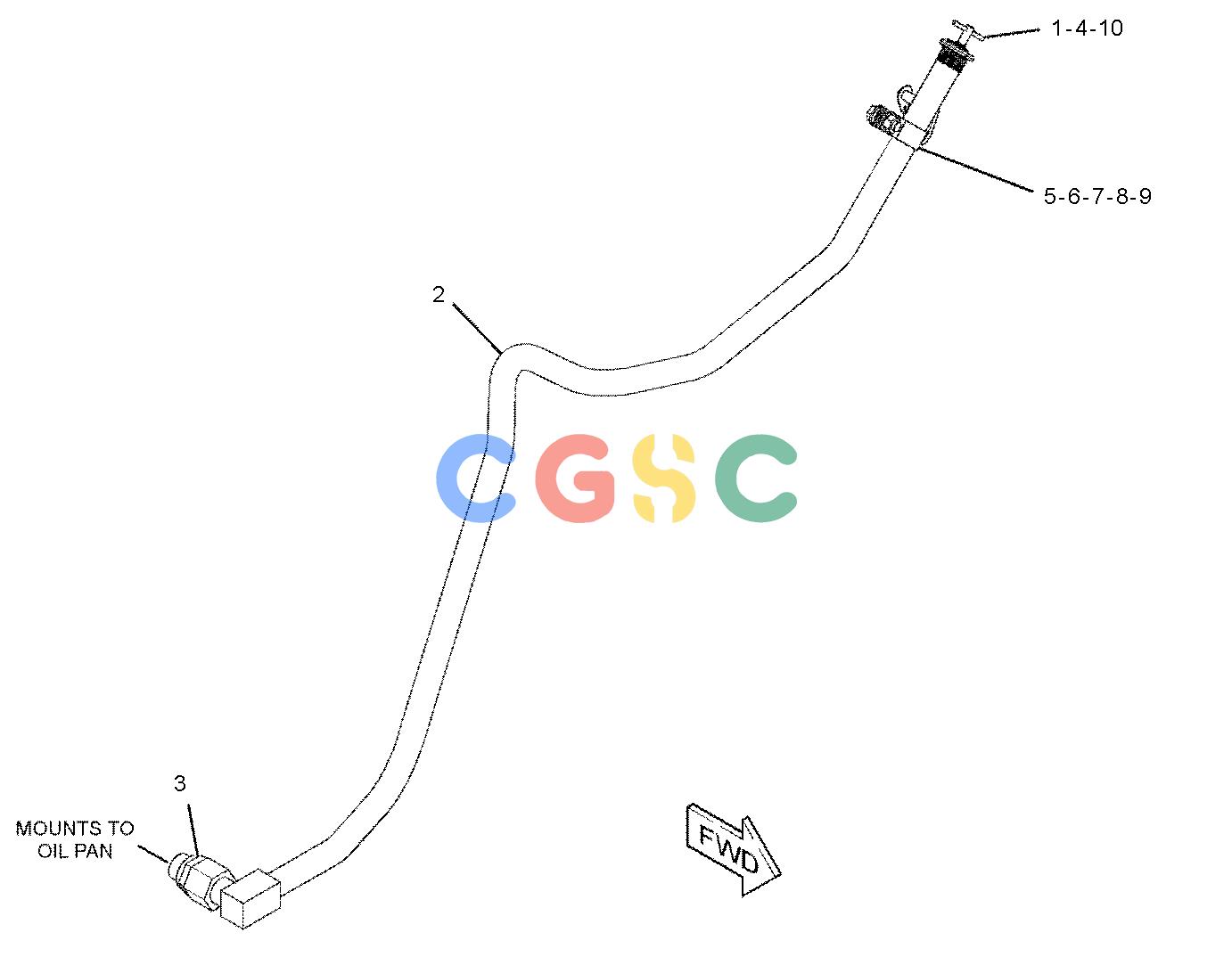

卡特零件查询（730C） 436-2978: FILLER GP-POWER TRAIN OIL
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 445-5342 | [1] | CAP-OIL FILLER(POWER TRAIN OIL) | |
| 2. | 447-1429 | [1] | TUBE AS | |
| 3. | 148-8333 | [1] | CONNECTOR AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-7927 | [1] | CONNECTOR | |
| 4. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 5. | 8S-0023 | [1] | CLIP(SLOT) | |
| 6. | 8S-0024 | [1] | CLIP(TAB) | |
| 7. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 329-3356M | [1] | NUT(M12X1.75-THD) | |
| 9. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 10. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
