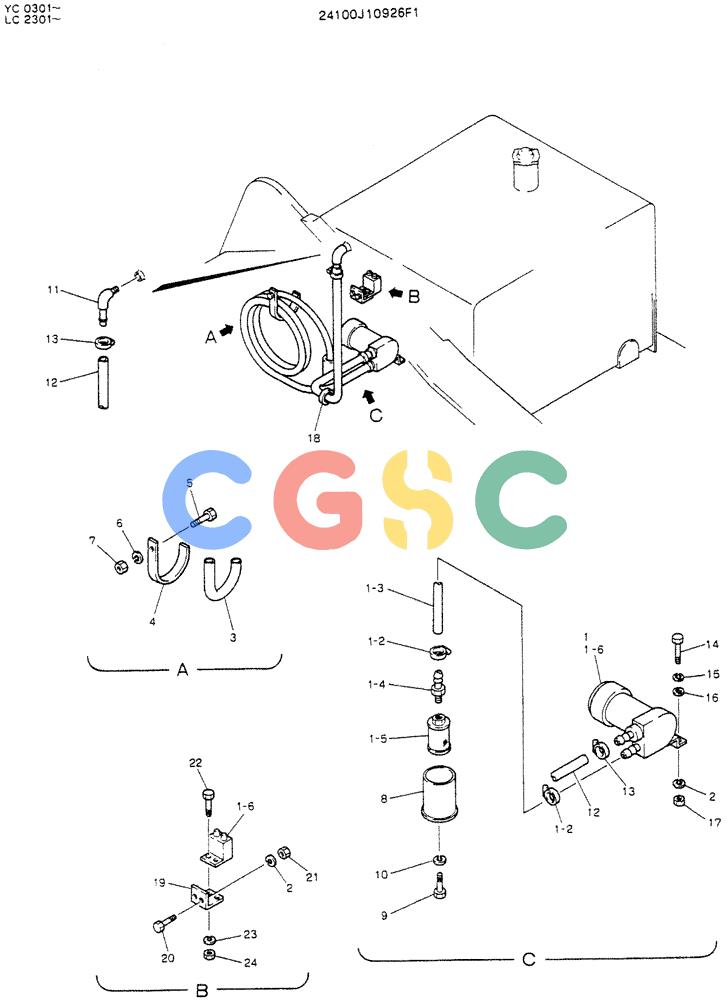

神钢零件查询(K912) - MARK II EXCAVATOR ASN LC-2301 (11/88-12/03) (08-001) - PUMP ASSY, FUEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
386 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10926F1 | [1] | PUMP ASSY, FUEL | |
| 1. | 24100R156F2 | [1] | FUEL PUMP | KOB |
| 1-2. | ZC15X02600 | [2] | CLAMP | KOB |
| 1-3. | 2444Z2252D1 | [1] | HOSE | KOB |
| 1-4. | 2444Z1233D7 | [1] | ELEC CONNECTOR | KOB |
| 1-5. | 2446Z143 | [1] | STRAINER ASSY. | KOB |
| 1-6. | 2437U180 | [1] | FUEL PUMP | KOB |
| 2. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 3. | 2418Z731 | [1] | TUBE,VINYL | |
| 4. | 2408T341 | [1] | HOOK | |
| 5. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 6. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 7. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 8. | 2416T13252 | [1] | SUPPORT | KOB |
| 9. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 10. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | 2418P12300 | [1] | TUBE | KOB |
| 12. | 2444Z2201D6 | [1] | HOSE | |
| 13. | ZC15X02600 | [2] | CLAMP | KOBCLIP |
| 14. | NSS | [3] | NOT SOLD SEPARAT | CONCAPSCREW,(WITH PUMP) |
| 15. | NSS | [3] | NOT SOLD SEPARAT | CONLOCK WASHER,(WITH PUMP) |
| 16. | NSS | [3] | NOT SOLD SEPARAT | CONWASHER,(WITH PUMP) |
| 17. | NSS | [3] | NOT SOLD SEPARAT | CONNUT,WITH PUMP) |
| 18. | 2420Z699 | [1] | GROMMET | KOB |
| 19. | 2418T17276 | [1] | PLATE | |
| 20. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 21. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 22. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 23. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
