纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-041[02]) - CAB ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1013 次

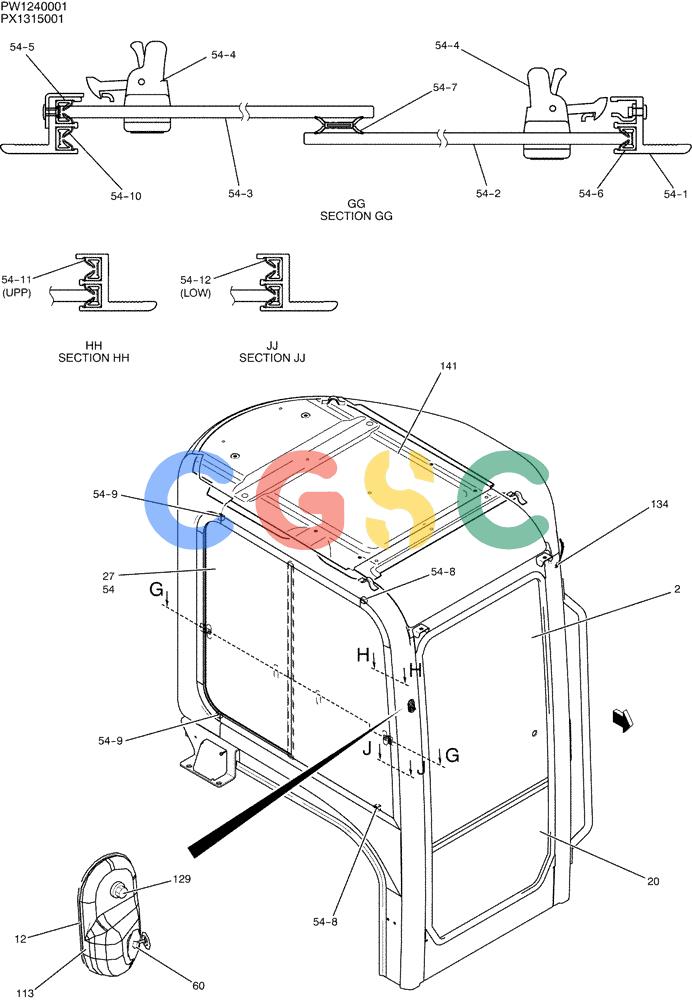

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | PW50C00002F1 | [1] | WINDOW | KOBASSY, FR, SEE FIGURE 01-043 |
| 12. | PM02C01475P1 | [1] | RUBBER | KOB |
| 20. | PW02C01117P1 | [1] | GLASS | KOB |
| 27. | PM02C01172D3 | [1] | SEAL,7mm W x 4.8mm H x 4000mm L | KOB Superseded by part number: YR02C01573D3 |
| 54. | PW02C01114F1 | [1] | GLASS | KOB |
| 54-1. | PW02C01114S001 | [1] | FRAME ASSY | KOB |
| 54-2. | PW02C01224P1 | [1] | GLASS | KOB |
| 54-3. | PW02C01225P1 | [1] | GLASS | KOB |
| 54-4. | PW02C01114S004 | [2] | LOCK ASSY | KOB |
| 54-5. | PW02C01114S005 | [1] | SEAL | KOB |
| 54-6. | PW02C01114S006 | [1] | SEAL | KOB |
| 54-7. | PW02C01114S007 | [1] | SEAL | KOB |
| 54-8. | PW02C01114S008 | [2] | STOP | KOB |
| 54-9. | PW02C01114S009 | [2] | STOP | KOB |
| 54-10. | PW02C01114S010 | [1] | SEAL | KOB |
| 54-11. | PW02C01114S011 | [1] | SEAL | KOB |
| 54-12. | PW02C01114S012 | [1] | SEAL | KOB |
| 60. | PM02C01480P1 | [1] | NOZZLE | KOB |
| 113. | PM02C01474P1 | [1] | BASE | KOB |
| 129. | ZM46C05020 | [1] | BOLT (STEP) | KOB |
| 134. | PW02C01162P1 | [1] | GROMMET | KOB |
| 141. | PW02C01295P2 | [1] | FOAM INSULATION | KOB |
