卡特零件查询（730C） 480-5783: FILTER GP-OIL
广数供应链运营团队, 15 02月, 2025，浏览：
549 次

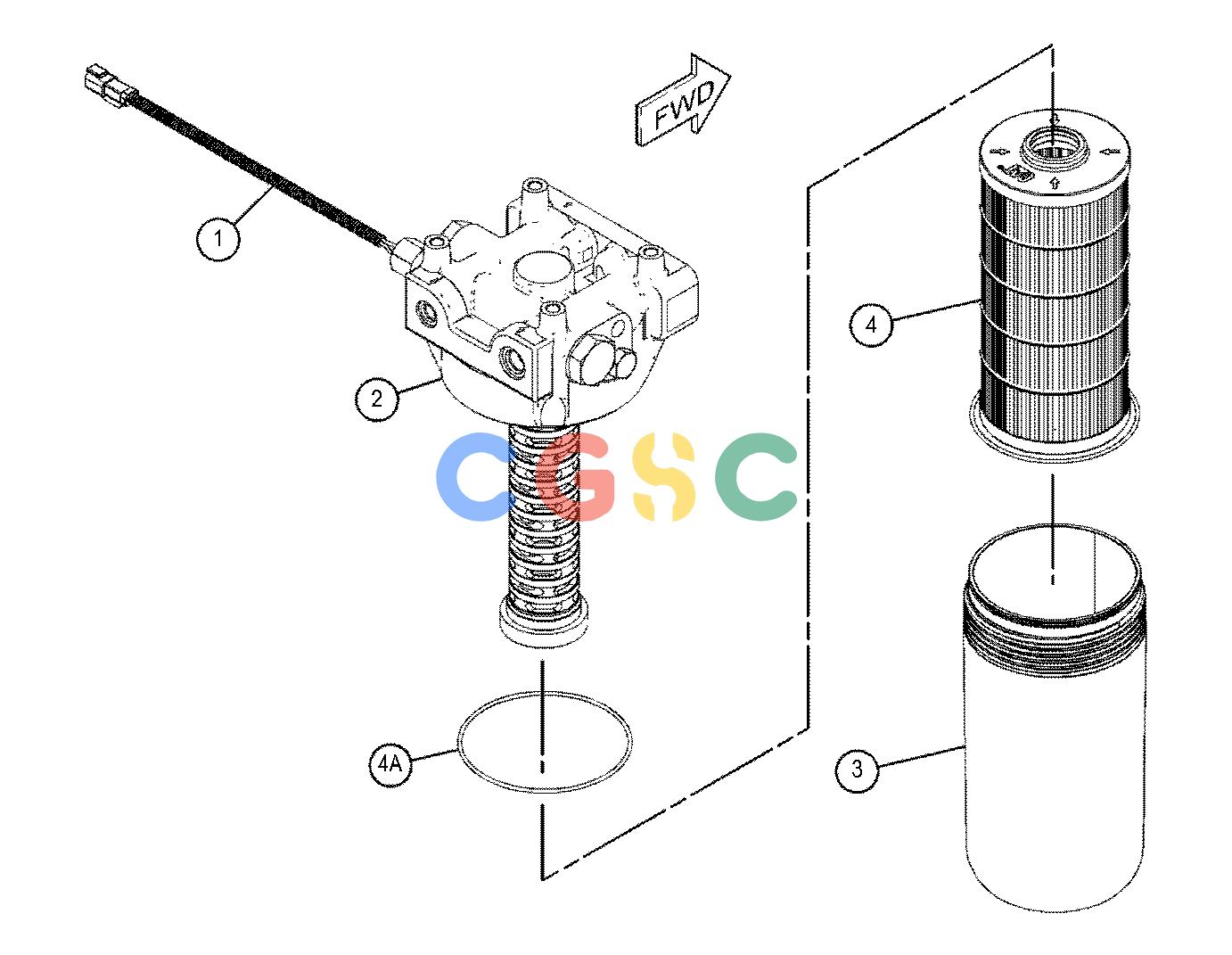

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 341-6644 | [1] | SWITCH AS-PRESSURE(OIL FILTER BYPASS) | |
| | 033-6033 | [1] | SEAL-O-RING | |
| | 206-9295 | [1] | SEAL-O-RING | |
| 2. | 346-5572 | [1] | BASE AS-OIL FILTER(TRANSMISSION) | |
| | 5P-7701 | [2] | SEAL-O-RING | |
| | 8L-2786 | [2] | SEAL-O-RING | |
| | 9S-4181 | [2] | PLUG(1-5/16-12-THD) | |
| | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| 3. | 353-4688Y | [1] | FILTER GP-OIL(TRANSMISSION) | |
| 4. | 337-5270 | [1] | FILTER ELEMENT AS-OIL(TRANSMISSION)(TRANSMISSION) | |
| 4A. | 095-1678 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
