纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (01-055[01]) - GUARD INSTAL (CAB), P/N PW21C000028F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
961 次

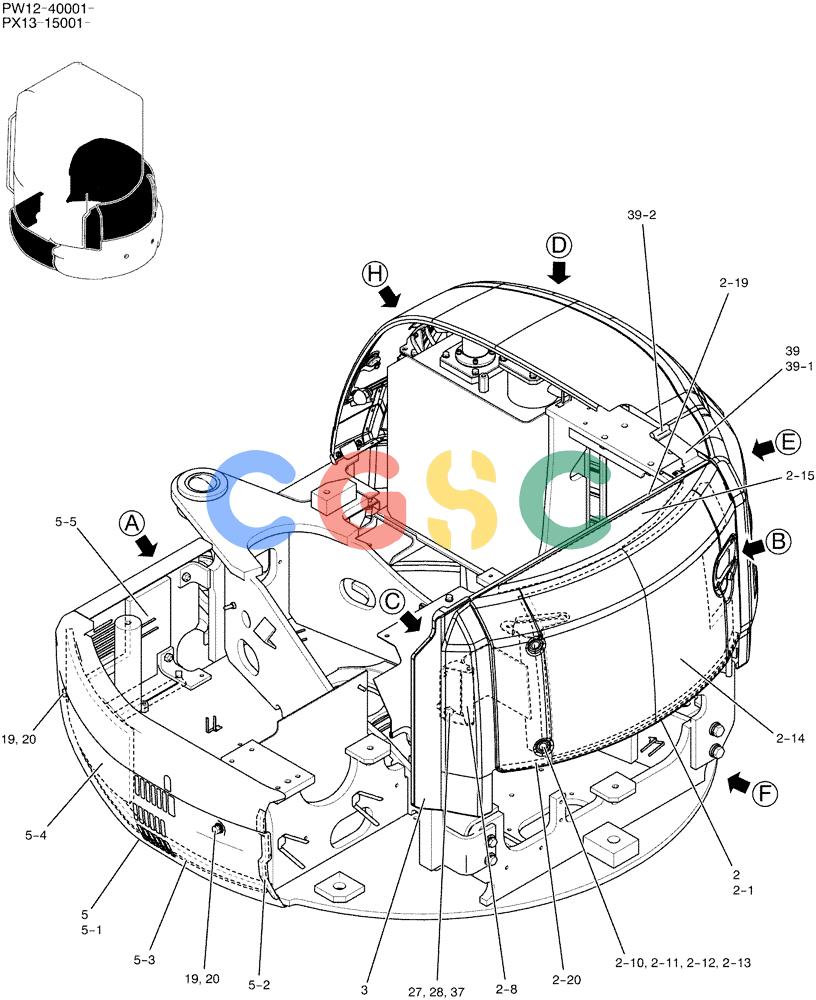

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PW21C00028F1 | [1] | GUARD INSTAL | |
| 2. | PW22C00021F1 | [1] | ENGINE HOOD | KOBBONNET ASSY Superseded by part number: PW22C00022F1 |
| 2-1. | PW22C01148P1 | [1] | ACCESS COVER | KOBBONNET |
| 2-8. | PW22C01161P2 | [1] | CHECK VALVE | KOBHINGE |
| 2-10. | PW21C01413P1 | [2] | CAPSCREW | KOBSCREW CAP |
| 2-11. | ZW16X08000 | [2] | WASHER | KOB |
| 2-12. | ZW26X08000 | [2] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 2-13. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 2-14. | PW22C01159P1 | [1] | FOAM INSULATION | KOB |
| 2-15. | PW22C01130P1 | [1] | FOAM INSULATION | KOB |
| 2-19. | YR21C01165D8 | [1] | WEATHERSTRIP | KOB |
| 2-20. | YN21C01712DD | [1] | WEATHERSTRIP | KOB |
| 3. | PW21C01695F1 | [1] | COVER ASSY | |
| 5. | PW21C01804F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| 5-1. | PW21C01790P1 | [1] | COVER ASSY | KOBCOVER ASSY Superseded by part number: PW21C01790P2 |
| 5-2. | PM21C01233P1 | [1] | RUBBER | KOB |
| 5-3. | PM21C01152DV | [1] | WEATHERSTRIP | KOB |
| 5-4. | PW21C01683P1 | [1] | FOAM INSULATION | KOB |
| 5-5. | PW21C01684P1 | [1] | FOAM INSULATION | KOB |
| 19. | PA41C01005D3 | [2] | BOLT | KOB |
| 20. | YT21C01187P2 | [2] | WASHER | KOB |
| 27. | ZW26X12000 | [2] | WASHER | KOB |
| 28. | 2418T10357 | [2] | WASHER | KOB Superseded by part number: 2418T12345 |
| 37. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBCAP |
| 39. | PW21C01702F1 | [1] | COVER ASSY | KOBCOVER ASSY |
| 39-1. | PW21C01732P3 | [1] | COVER | KOB |
| 39-2. | LE21C01070DL | [1] | WEATHERSTRIP | KOB |
