神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
938 次

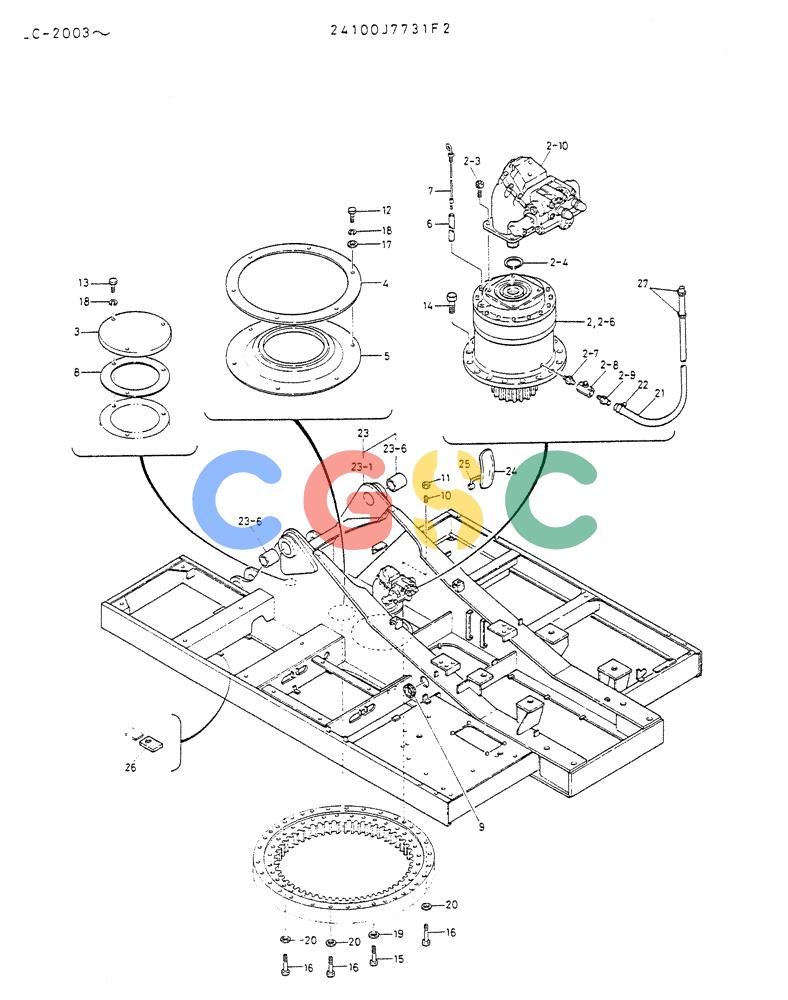

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7731F2 | [1] | FRAME ASSY,UPP | |
| 2. | 24100J6740F2 | [1] | MOTOR ASSY | |
| 2-3. | ZS23C16040 | [3] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW M16x2.0x40mm |
| 2-4. | ZR16X04000 | [4] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 2-6. | 24100J6739F2 | [6] | REDUCTION UNIT SEE FIG 02-016 | REDUCTION UNIT SEE FIG 02-016 |
| 2-7. | ZG22E12000 | [7] | NIPPLE | NIPPLE |
| 2-8. | 2436R1108D1 | [8] | COCK, DRAIN | COCK, DRAIN |
| 2-9. | 2444T3117 | [9] | CONNECTOR | CONNECTOR |
| 2-10. | 2441U683F1 | [10] | HYDRAULIC MOTOR | KOB |
| 3. | 2414T1412 | [1] | COVER | KOB |
| 4. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 5. | 2414Z234 | [1] | COVER | KOB |
| 6. | 2420T4039C2D8 | [1] | PIPE | KOB |
| 7. | 2420R561D2 | [1] | LEVEL GAUGE | KOB |
| 8. | R45T0005 | [1] | GASKET | KOB |
| 9. | 2420T4986 | [1] | GROMMET | |
| 10. | 2420T3998D2 | [1] | SET OF SCREWS | KOB |
| 11. | ZN18C22018 | [1] | NUT | KOBM22x2.5mm |
| 12. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZS18C10014 | [3] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 14. | 2420Z1666 | [16] | CAPSCREW | |
| 15. | 2420Z1624 | [31] | SCREW | KOBCAPSCREW |
| 16. | 2420Z1625 | [3] | SCREW | KOBCAPSCREW |
| 17. | 2418T5373C2 | [6] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 18. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 19. | ZW16H22000 | [31] | WASHER | KOBID 23 x OD 44 x Th 6.0mm |
| 20. | ZW16H24000 | [3] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 21. | R18P0140D106 | [1] | HOSE | |
| 22. | ZC15X02600 | [1] | CLAMP | KOB |
| 23. | 2422X916F1 | [1] | FRAME,OPP | |
| 23-1. | 2422X916 | [1] | FRAME,OPP | |
| 23-6. | 2405T1253 | [2] | BUSHING | KOB |
| 24. | 2456Z253 | [1] | MIRROR | KOBASSY |
| 25. | 2406P2568 | [1] | STAY | KOB |
| 26. | ZW16H12000 | [14] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 27. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
