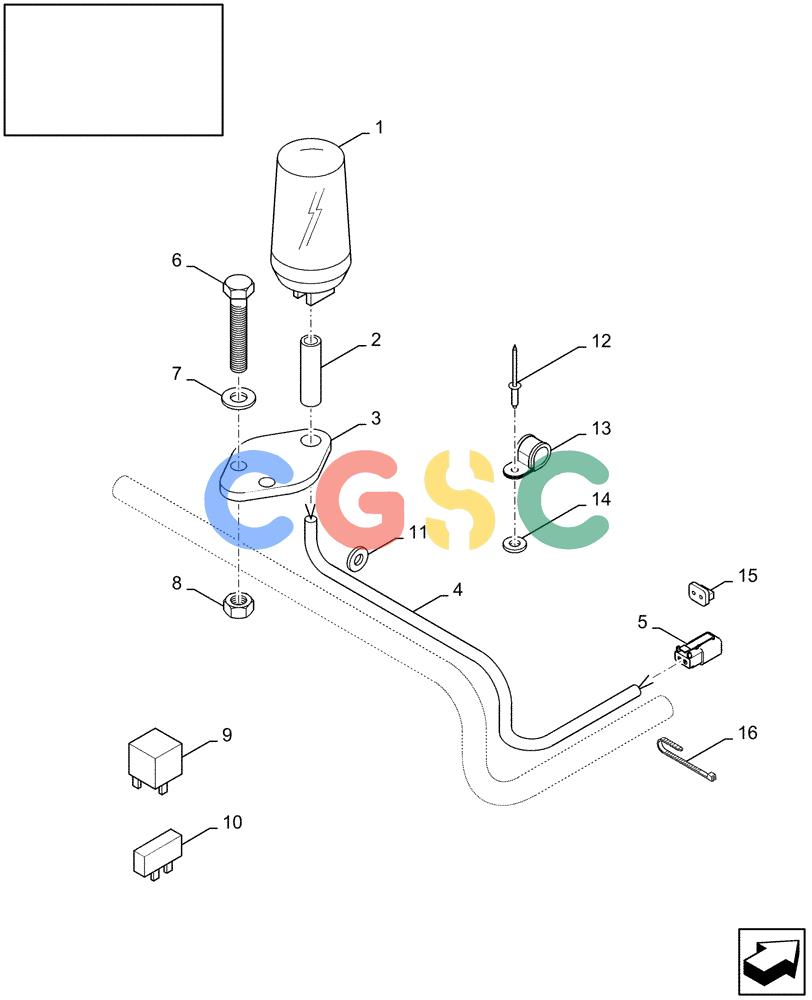

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.84110773[01]) - DIA : REVOLVING FLASHLIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
342 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84110773
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
9513421
|
[1] |
BEACON
|
ZED
|
| 2. |
9513422
|
[1] |
BASE
|
ZED
|
| 3. |
84073655
|
[1] |
SUPPORT
|
ZED
|
| 4. |
84073092
|
[1] |
WIRE HARNESS
|
ZED
|
| 5. |
84074631
|
[1] |
CONTACT HOUSING,Female, 2 Pole
|
ZED
Superseded by part number: 87695582
|
| 6. |
43129
|
[2] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 7. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 8. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 9. |
86509590
|
[1] |
RELAY
|
NH
Superseded by part number: 87414866
|
| 10. |
84100298
|
[1] |
FUSE
|
ZED
Superseded by part number: 9811773
|
| 11. |
411809
|
[1] |
GROMMET
|
ZED
|
| 12. |
9512968
|
[1] |
RIVET,Pop, 4.8mm OD x 11.2mm L
|
ZED
|
| 13. |
9507807
|
[1] |
CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 14. |
322356
|
[1] |
BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk
|
ZED
|
| 15. |
84074638
|
[1] |
LOCKING TAB,Locking Wedge, Green
|
ZED
|
| 16. |
323597
|
[2] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP Superseded by part number: 14560287
|
