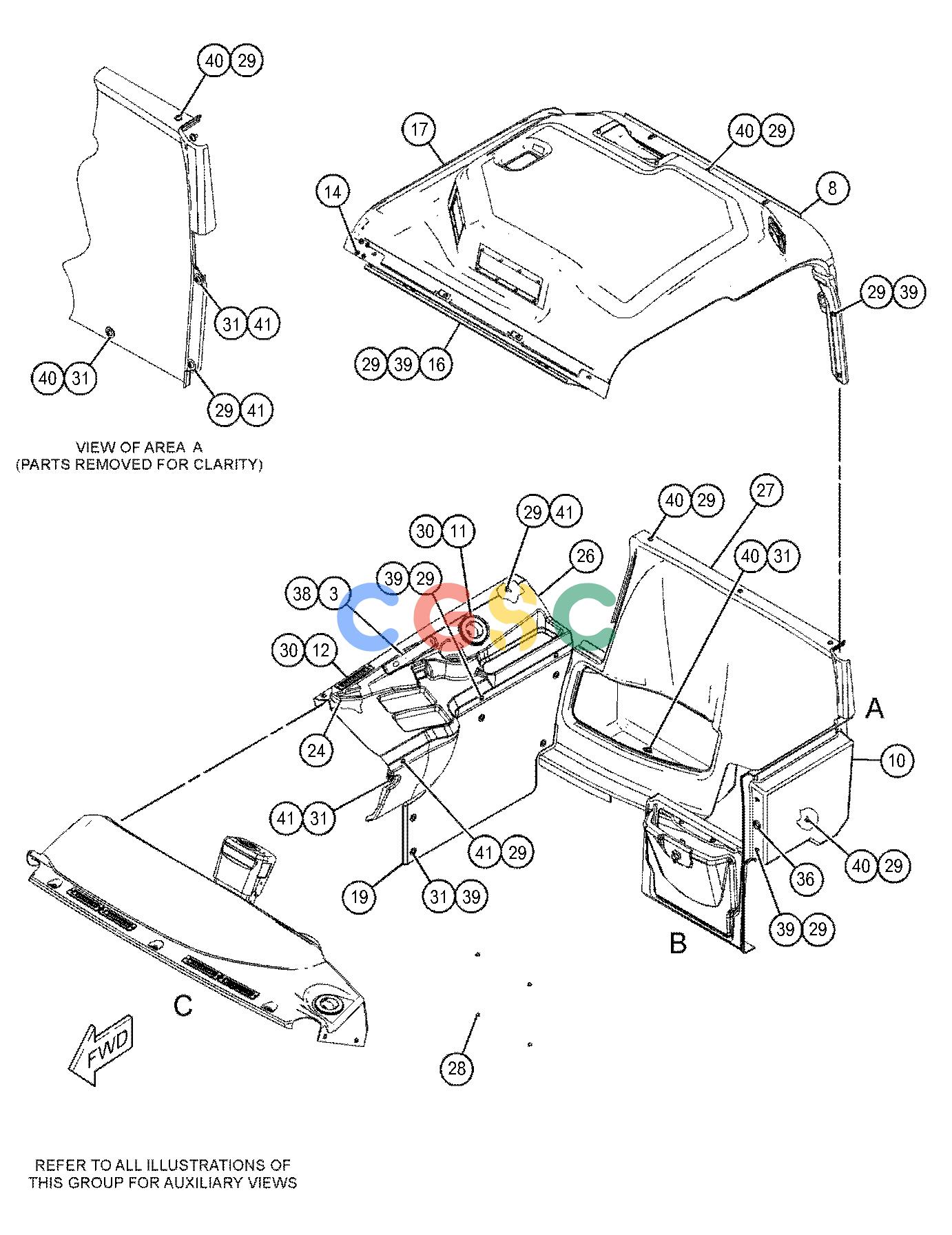

卡特零件查询（730C） 381-1687: LINER GP-CAB
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-8928 | [1] | HOOK-COAT | |
| 2. | 8C-0618 | [1] | ASHTRAY AS | |
| 3. | 126-2373 | [2] | HANDLE AS-PULL | |
| 4. | 154-7468 | [1] | COVER AS | |
| 5. | 154-7470 | [1] | COVER | |
| 6. | 155-9708 | [1] | COVER AS | |
| 7. | 155-9709 | [1] | COVER(BOTTOM) | |
| 8. | 160-8686 | [1] | CHANNEL-REAR | |
| 10. | 160-8728 | [1] | TRIM | |
| 11. | 164-8473 | [3] | LOUVER AS(LH) | |
| 12. | 171-4047 | [5] | LOUVER AS-VENT | |
| 14. | 224-2669 | [4] | PLUG-PLASTIC | |
| 15. | 228-7260 | [1] | DOOR AS | |
| | 3H-0240 | [11] | WASHER(5X9.7X0.8-MM THK) | |
| | 9M-5733 | [11] | RIVET-POP | |
| | 165-0399 | [1] | HINGE AS | |
| | 302-4764 | [1] | LATCH AS | |
| | 228-7261 | [1] | TRIM-SEAT | |
| 16. | 289-8726 | [1] | PLATE AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 247-5834 | [1] | PLATE | |
| 17. | 322-7873 | [1] | LINER AS-CAB | |
| | 9X-1046M | [8] | SCREW(M4X0.7X18-MM) | |
| | 124-6047 | [2] | COVER-SPEAKER | |
| 18. | 442-9429 | [1] | COVER-POST | |
| 19. | 340-7387 | [1] | COVER AS | |
| 20. | 340-7388 | [1] | DASH AS | |
| 21. | 442-9427 | [1] | COVER-REAR WIPER | |
| 22. | 344-2597 | [2] | GASKET | |
| 23. | 442-9430 | [1] | COVER | |
| 24. | 349-5798 | [1] | GASKET | |
| 25. | 354-0742 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| 26. | 381-1089 | [1] | COVER AS | |
| | 240-2169 | [1] | RETAINER | |
| 27. | 381-1090 | [1] | PANEL AS | |
| 28. | 396-1170 | [4] | PLUG-PLASTIC | |
| 29. | 114-6658 | [39] | WASHER(6.5X17X1-MM THK) | |
| 30. | 104-2091 | [24] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 31. | 7X-0579 | [19] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 33. | 244-2331 | [2] | WASHER(4X8X1-MM THK) | |
| 35. | 3E-4313M | [10] | SCREW-BUTTON HEAD(M4X0.7X8-MM) | |
| 36. | 6V-0292 | [1] | PLUG | |
| 37. | 8T-0267M | [2] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 38. | 8T-0269M | [2] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 39. | 9X-2042M | [18] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 40. | 9X-2044M | [26] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 41. | 9X-2045M | [15] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 42. | 148-7361E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(8-CM) | |
| 43. | 148-7362E | | FASTENER-HOOK & LOOP(ADHESIVE BACKED)(5-CM EACH) | |
| 44. | 124-6047 | [2] | COVER-SPEAKER | |
| 45. | 510-7162 | [1] | HAMMER GP | |
| 46. | 8T-2659M | [2] | LOCKNUT(M4X0.7-THD) | |
| 47. | 6V-9672M | [2] | SCREW-MACHINE(M4X0.7X16-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
