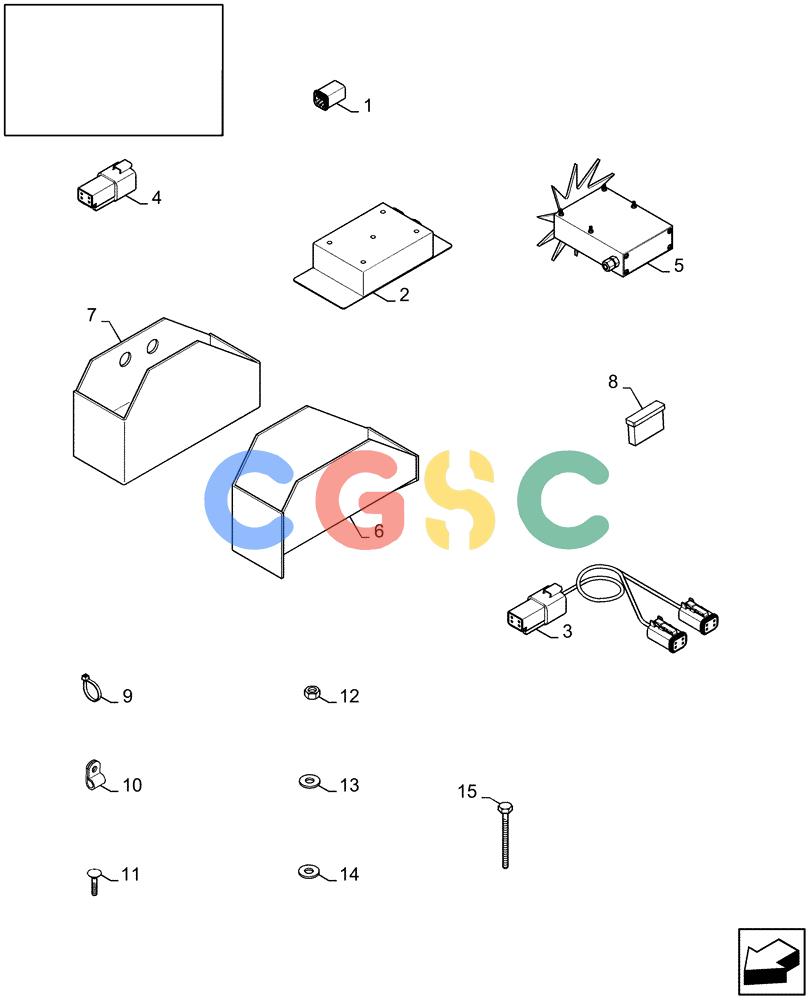

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.84342984[01]) - DIA KIT : MOISTURE SENSOR KIT - F868939 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84342984
|
[1] |
DIA KIT, HARVESTER
|
ZED
Superseded by part number: 84597563
|
| 1. |
87395160
|
[1] |
CABLE
|
ZED
Superseded by part number: 84597962
|
| 2. |
84258978
|
[1] |
ECU
|
ZED
Superseded by part number: 84597957
|
| 3. |
84460028
|
[1] |
WIRE HARNESS
|
ZED
|
| 4. |
87380352
|
[1] |
ELEC CONNECTOR
|
ZED
|
| 5. |
87395156
|
[2] |
REGULATING SYSTEM
|
ZED
|
| 6. |
87395158
|
[1] |
GUARD
|
ZED
LH
|
| 7. |
87395159
|
[1] |
GUARD
|
ZED
RH
|
| 8. |
84320044
|
[1] |
FUSE,5 Amp
|
ZED
Superseded by part number: 87693742
|
| 9. |
86566989
|
[5] |
CABLE TIE,208mm L
|
ZED
CABLE STRAP
|
| 10. |
9848767
|
[9] |
CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type
|
NH
|
| 11. |
86507486
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
9706690
|
[22] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 13. |
322358
|
[14] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 14. |
378243
|
[4] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 15. |
366046
|
[8] |
CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8
|
WIN
Superseded by part number: 120040
|
