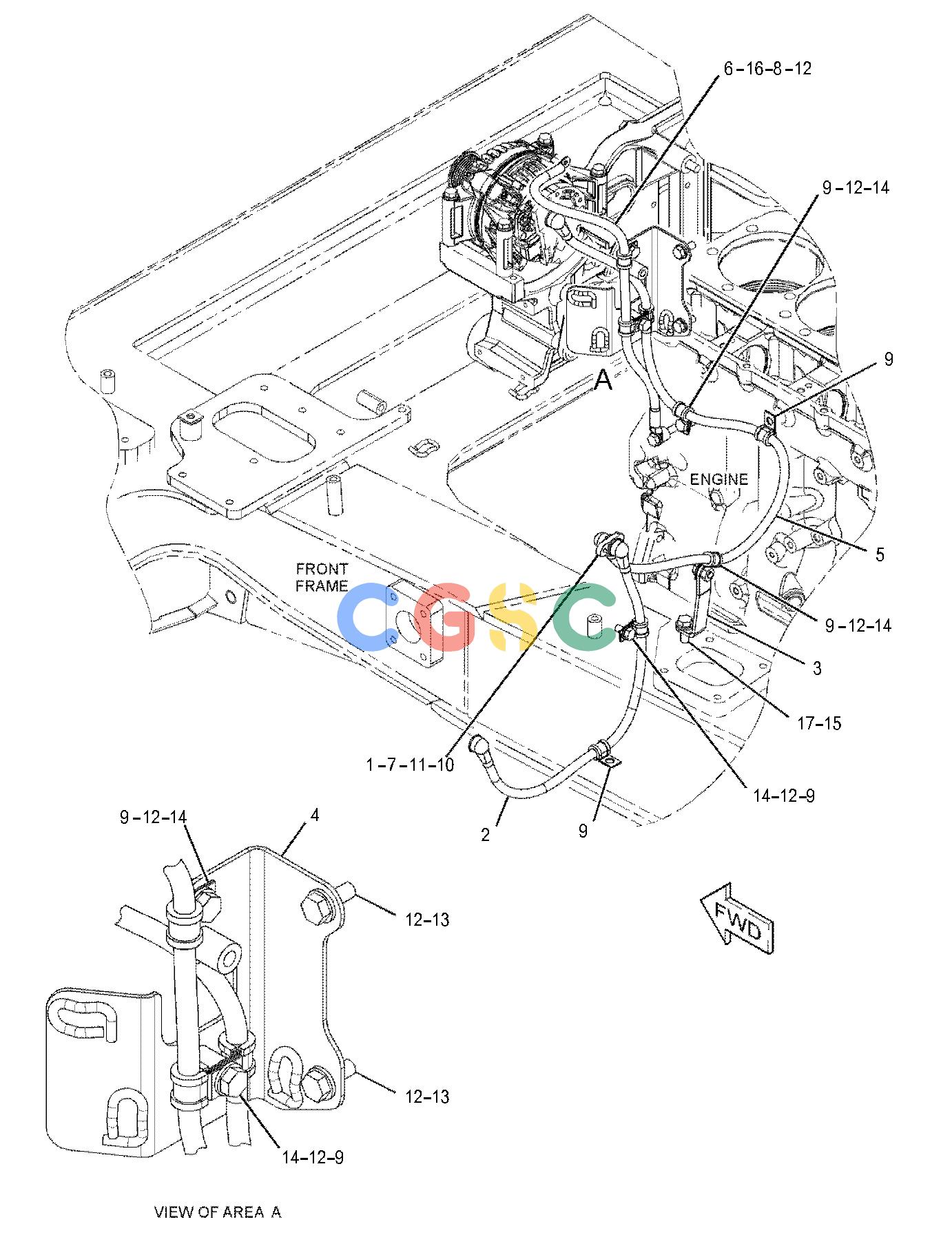

卡特零件查询（730C） 446-6305: WIRING GP-ALTERNATOR
广数供应链运营团队, 15 02月, 2025，浏览：
733 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 253-9557C | [1] | BLOCK AS-JUNCTION | |
| 2. | 459-9012C | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(70-CM) | |
| | 135-2543 | [2] | BOOT(RED) | |
| | 030-1712 | [2] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| 3. | 447-0078 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 4. | 447-6841 | [1] | PLATE AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2613M | [1] | BOSS-WELD(M10X1.5X25-MM) | |
| | 9R-2672M | [1] | BOSS-THREADED(M10X1.5X120-MM) | |
| 5. | 459-9011C | [1] | CABLE AS | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 8C-3056E | | CABLE(2-GA, RED)(115-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 135-2543 | [2] | BOOT(RED) | |
| 6. | 447-6921 | [1] | CABLE AS | |
| | 8C-0596 | | CABLE(2-GA)(71-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 311-6185 | [1] | TERMINAL AS | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 7. | 9X-8256C | [2] | WASHER(6.6X12X2-MM THK) | |
| 8. | 198-0230 | [1] | SPACER(10.5X19X15-MM THK) | |
| 9. | 349-1209 | [8] | CLIP | |
| 10. | 344-5673CM | [2] | NUT(M6X1-THD) | |
| 11. | 6V-5210CM | [2] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 12. | 8T-4121C | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4137M | [5] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 16. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 17. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
