神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (08-004[01]) - TOOL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次

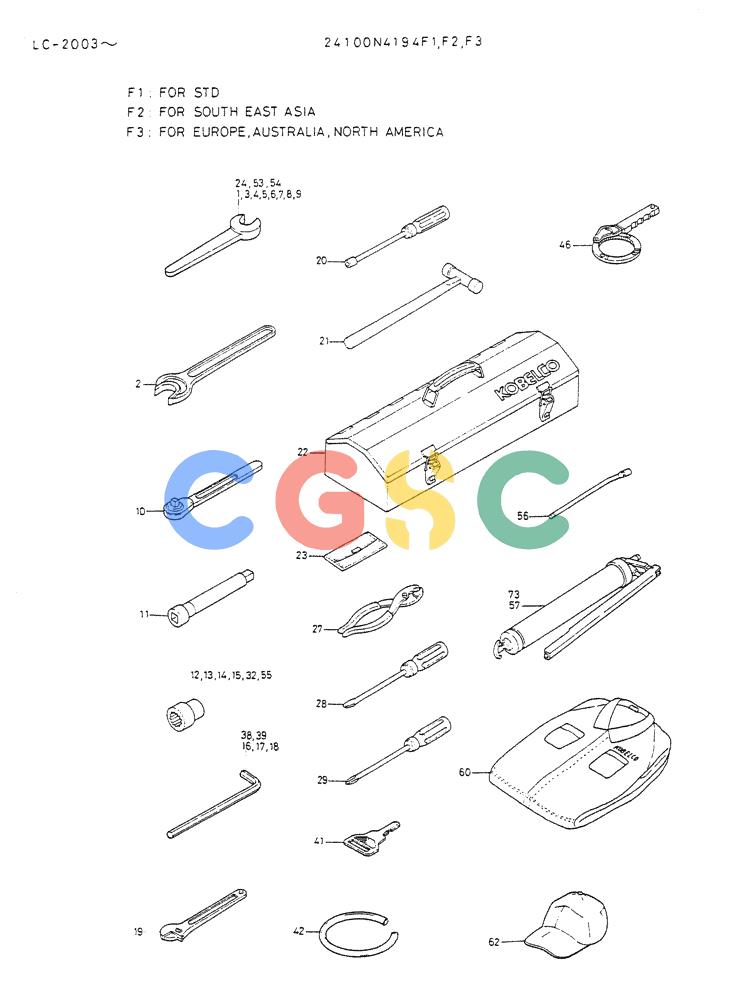

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4194F1 | [1] | TOOL ASSY | |
| 1. | ZT12A41000 | [1] | ADJUSTING WRENCH | KOBSpanner, 41mm |
| 2. | 4021Z1D3 | [1] | SPANNER | SPANNER |
| 3. | ZT12A36000 | [1] | SEAT BACK | KOBSpanner, 36mm |
| 4. | ZT12A32000 | [1] | SEAT BACK | KOB(32) |
| 5. | ZT12A46000 | [1] | POINT | KOB46mm |
| 6. | ZT12A19000 | [1] | GEAR | KOBSpanner, 19mm |
| 7. | ZT12A17000 | [1] | PLUG | KOBSpanner, 17mm |
| 8. | ZT12A14000 | [1] | BOX SPANNER | KOB(14) |
| 9. | ZT12A10000 | [1] | PLUG | KOBSpanner, 10mm |
| 10. | ZT31B13250 | [1] | HANDLE | KOBRATCHET |
| 11. | ZT31D13150 | [1] | BAR | KOB |
| 12. | ZT31A17000 | [1] | SOCKET | KOBSOCKET (17) |
| 13. | ZT31A19000 | [1] | SOCKET | KOB(19) |
| 14. | ZT31A24000 | [1] | SOCKET | KOB(24) |
| 15. | ZT31A27000 | [1] | SOCKET | KOBSOCKET (27) |
| 16. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 17. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 18. | ZT22A10000 | [1] | KEY | KOB10mm |
| 19. | ZT12D20000 | [1] | WRENCH, ADJUST 24mm Maximum | WRENCH, ADJUST 24mm Maximum |
| 20. | 2421T8 | [1] | TIGHTENER | KOBSOCKET |
| 21. | ZT71A15000 | [1] | HAMMER | KOB |
| 22. | 4027R1 | [1] | COMPLETE TOOL BOX | KOBBOX, TOOL |
| 23. | 2421Z210 | [1] | HOLDER | KOBKEY |
| 24. | ZT12A55000 | [1] | SPECIAL WRENCH | KOBSpanner -- 55mm |
| 27. | ZT51A15000 | [1] | PLIERS | KOB |
| 28. | ZT41A06100 | [1] | DRIVER | DRIVER |
| 29. | ZT41B30150 | [1] | DRIVER | DRIVER |
| 32. | ZT31A30000 | [1] | SOCKET | KOBSOCKET (30) |
| 38. | ZT22A14000 | [1] | KEY | KOB14mm |
| 39. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 41. | 2420Z1030 | [2] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 42. | 2444Z2329 | [1] | HOSE | KOB |
| 46. | 2421R127 | [1] | SPECIAL WRENCH | KOB |
| 53. | ZT12A27000 | [1] | HEATER | KOB27mm |
| 54. | ZT12A50000 | [1] | POINT | KOBSpanner -- 50mm Long (1-31/32 in) |
| 55. | ZT31A22000 | [1] | SOCKET | KOBSOCKET (22) |
| 56. | 2421R140 | [1] | NOZZLE | KOBAdapter -- 1/8"PFx180mm Long |
| 57. | 2421R145 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 60. | 2421Z245 | [1] | OVERALLS | |
