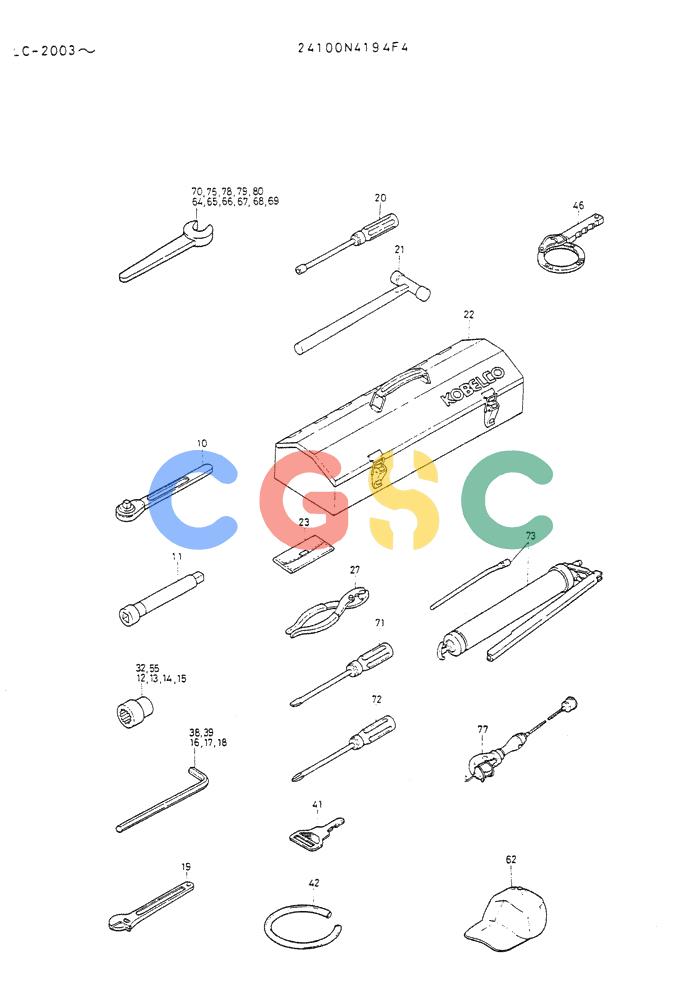

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (08-005) - TOOL ASSY (FOR NORTH EUROPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
162 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4194F4 | [1] | TOOL ASSY(FOR NORTH AMERICA) | |
| 10. | ZT31B13250 | [1] | HANDLE | KOBRATCHET |
| 11. | ZT31D13150 | [1] | BAR | KOBBAR, EXTENSION |
| 12. | ZT31A17000 | [1] | SOCKET | KOBSOCKET(17) |
| 13. | ZT31A19000 | [1] | SOCKET | KOB(19) |
| 14. | ZT31A24000 | [1] | SOCKET | KOB(24) |
| 15. | ZT31A27000 | [1] | SOCKET | KOBSOCKET(27) |
| 16. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 17. | ZT22A06000 | [1] | KEY, SCREW 06mm | KEY, SCREW 06mm |
| 18. | ZT22A10000 | [1] | KEY | KOB10mm |
| 19. | ZT12D20000 | [1] | WRENCH, ADJUST 24mm Maximum | WRENCH, ADJUST 24mm Maximum |
| 20. | 2421T8 | [1] | TIGHTENER | KOBSOCKET(30) |
| 21. | ZT71A15000 | [1] | HAMMER | KOB |
| 22. | 4027R1 | [1] | COMPLETE TOOL BOX | KOBBOX,TOOL |
| 23. | 2421Z210 | [1] | HOLDER | KOBKEY |
| 27. | ZT51A15000 | [1] | PLIERS | KOB |
| 32. | ZT31A30000 | [1] | SOCKET | KOBSOCKET (30) |
| 38. | ZT22A14000 | [1] | KEY | KOB14mm |
| 39. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 41. | 2420Z1030 | [2] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 42. | 2444Z2329 | [1] | HOSE | KOB |
| 46. | 2421R127 | [1] | SPECIAL WRENCH | KOB |
| 55. | ZT31A22000 | [1] | SOCKET | KOBSOCKET(22) |
| 62. | 2421Z243 | [1] | CAP, WORKING | |
| 64. | ZT13A41000 | [1] | BOX SPANNER | KOB(41 ) |
| 65. | ZT13A36000 | [1] | BOX SPANNER | KOB(36) |
| 66. | ZT13A27000 | [1] | HEATER | KOB(27) |
| 67. | ZT13A19000 | [1] | HEATER | KOB(19) |
| 68. | ZT13A17000 | [1] | SPANNER (17) | SPANNER (17) |
| 69. | ZT13A14000 | [1] | SPANNER (14) | SPANNER (14) |
| 70. | ZT13A10000 | [1] | SPANNER (10) | SPANNER (10) |
| 71. | ZT42A06100 | [1] | DRIVER | DRIVER |
| 72. | ZT42B30150 | [1] | DOG | KOB |
| 73. | 2421R154 | [1] | GREASE GUN | KOB Superseded by part number: EAPN17125A |
| 76. | ZT13A50000 | [1] | BOX SPANNER | KOB(50) |
| 77. | 2456Z314 | [1] | LIGHT, ROUBLE | |
| 78. | ZT13A32000 | [1] | BOX SPANNER | KOB(32) |
| 79. | ZT13A46000 | [1] | BOX SPANNER | KOB(46) |
| 80. | ZT13A55000 | [1] | BOX SPANNER | KOB(55) |
