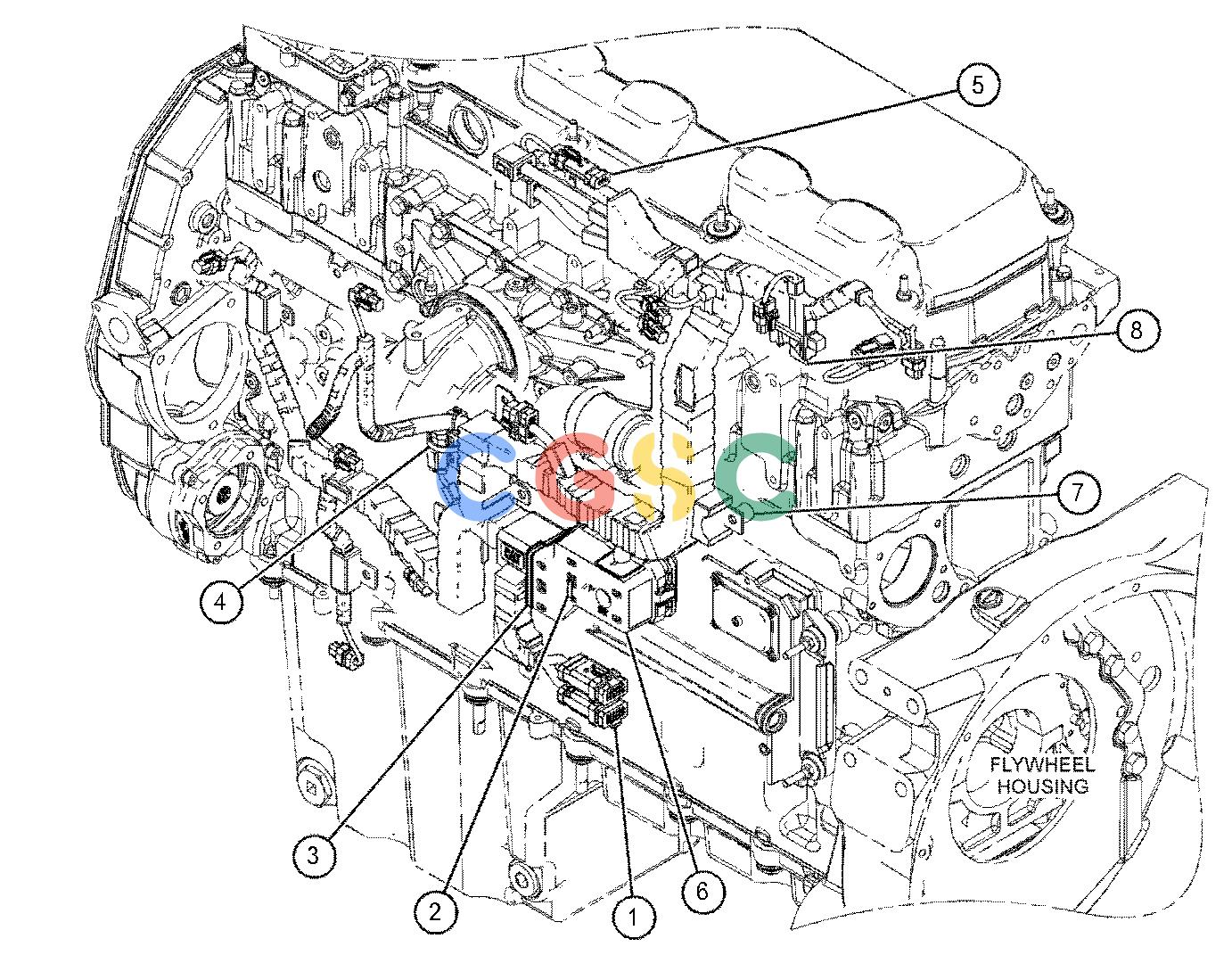

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | Y | [1] | HARNESS AS-ENGINE | |
| 2. | 3S-2093 | [1] | STRAP-CABLE | |
| 3. | 6K-0806 | [1] | STRAP-CABLE | |
| 4. | 7K-1181 | [1] | STRAP-CABLE | |
| 5. | 269-4005 | [1] | RECEPTACLE AS-CONNECTOR | |
| 8T-8737 | [3] | PLUG-SEAL | ||
| 230-4014 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | ||
| 6. | 344-2466 | [1] | COVER AS | |
| 7. | [2] | BRACKET AS | ||
| (EACH INCLUDES) | ||||
| 140-1823 | [1] | SPACER(11X19.05X10.5-MM THK) | ||
| [1] | COVER | |||
| 8. | [1] | BRACKET AS | ||
| 144-8344 | [1] | SPACER(11X19X20-MM THK) | ||
| Y | SEPARATE ILLUSTRATION | |||
