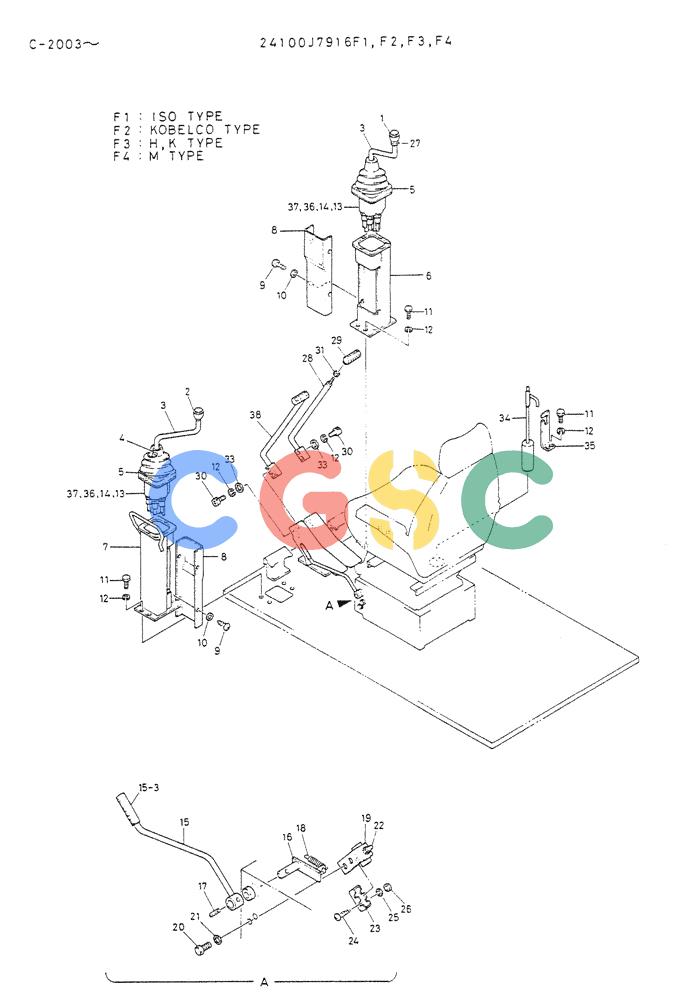

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (03-001 [02]) - CONTROL ASSY (LONG LEVER TYPE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
848 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7916F2 | [1] | CONTROL ASSY | |
| 1. | 2406R230D1 | [1] | BALL,LEVER | |
| 2. | 2406R230D2 | [1] | BALL,LEVER | |
| 3. | 2406P2560 | [2] | | |
| 4. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 5. | 2414R233 | [2] | BOOT | KOB |
| 6. | 2416N3216 | [1] | STAND,CONTROL | |
| 7. | 2416N3215 | [1] | STAND,CONTROL | |
| 8. | 2414T2685 | [2] | COVER | |
| 9. | ZS31C05010 | [8] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 10. | ZW16P05000 | [8] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 11. | ZS18C10030 | [10] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 12. | ZW26X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 14. | 24100X2178F2 | [1] | REMOTE CONTROL ASSY SEE FIG 03-002-01 &03-002-02 | |
| 15. | 2406P3494 | [1] | LEVER | |
| 15-3. | 2414Z270D1 | [1] | CAP | KOB |
| 16. | 2406P2558 | [1] | LEVER | |
| 17. | ZP26D05025 | [1] | ROLL PIN | KOBOD 05 x 25mm Long |
| 16. | 2417T510 | [1] | SPRING | KOB |
| 19. | 2416T13048 | [1] | SUPPORT | |
| 20. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 21. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 22. | 2479Z932 | [1] | SWITCH | KOB |
| 23. | 2414Z265 | [1] | COVER | KOB |
| 24. | ZS31C04030 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOBM04x0.7x30mm |
| 25. | ZW16K04000 | [2] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 26. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 27. | ZN17F12007 | [2] | NUT | KOB |
| 28. | 2406P3492D1 | [1] | LEVER | LEVER |
| 29. | 2406P2557 | [2] | GRIP | |
| 30. | ZS23C10040 | [4] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 31. | 2420T4479 | [2] | NUT | KOB3/8"-14UNF |
| 33. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419P2245 | [1] | PIN | PIN |
| 35. | 2416T15796 | [1] | BRACKET | |
| 38. | 2406P3492D2 | [1] | LEVER | LEVER |
