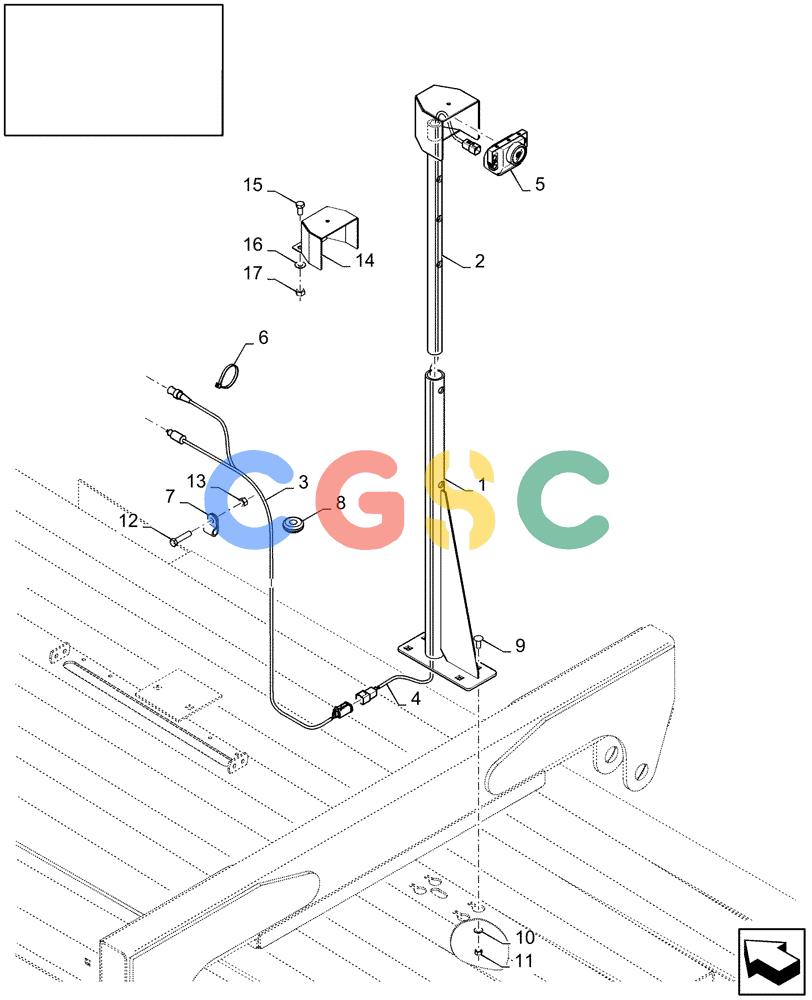

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (18.87732916[01]) - DIA : CAMERA KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
87732916
|
[1] |
DIA KIT, HARVESTER
|
ATT
|
| 1. |
87496772
|
[1] |
HOLDER
|
ZED
|
| 2. |
87498096
|
[1] |
HOLDER
|
ZED
|
| 3. |
84136553
|
[1] |
WIRE HARNESS
|
ZED
|
| 4. |
84136557
|
[1] |
WIRE HARNESS
|
ZED
|
| 5. |
87720156
|
[1] |
VIDEO CAMERA
|
ZED
|
| 6. |
86566990
|
[10] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
CABLE STRAP
|
| 7. |
9839372
|
[2] |
CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
|
| 8. |
84435431
|
[1] |
GROMMET,M15 x 40 x 30
|
ZED
|
| 9. |
120041
|
[4] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 10. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 11. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
43130
|
[2] |
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
|
NH
|
| 13. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 14. |
84210143
|
[1] |
BOOT
|
ZED
|
| 15. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 16. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 17. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
