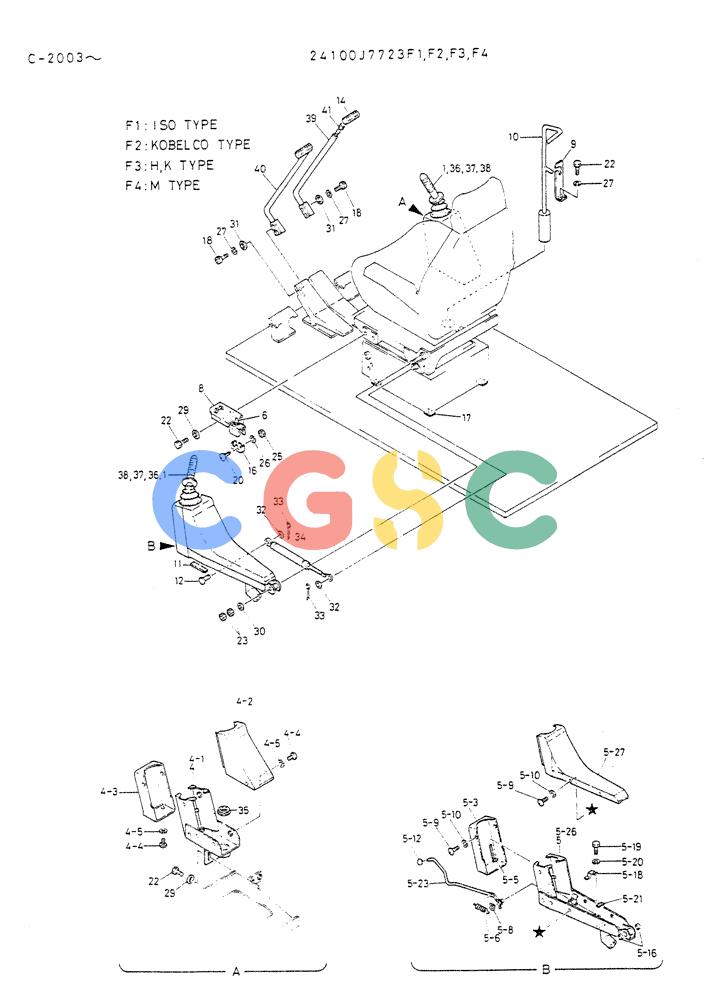

神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (03-004[04]) - CONTROL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7723F4 | [1] | CONTROL ASSY, WRIST | |
| 4. | 24100P1604F1 | [1] | SUPPORT ASSY | |
| 4-1. | 2416N4036 | [1] | SUPPORT | SUPPORT |
| 4-2. | 2414P2906 | [1] | COVER | KOB |
| 4-3. | 2414T1973 | [1] | COVER | COVER |
| 4-4. | ZS31C05014 | [6] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 4-5. | ZW11P05000 | [6] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 5. | 24100N2790F4 | [1] | SUPPORT ASSY | |
| 5-3. | 2414T1974 | [1] | COVER | |
| 5-5. | 2416Z332 | [1] | SHEET | KOB |
| 5-6. | 2417Z252 | [1] | SPRING | KOB |
| 5-6. | ZR36X00600 | [1] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 5-9. | ZS31C05014 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 5-10. | ZW11P05000 | [8] | WASHER | KOB Superseded by part number: ZW16P05000 |
| 5-12. | 2406Z294D3 | [1] | GRIP | KOB |
| 5-16. | 2405U101D1612 | [2] | BUSHING | KOB |
| 5-18. | 2432T1818 | [1] | CLAMP | CLAMP |
| 5-19. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 5-20. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5-21. | 2416T11070 | [1] | SEAT, RUBBER | SEAT, RUBBER |
| 5-23. | 2406P2544 | [1] | LEVER | KOB |
| 5-26. | 2416N1941 | [1] | SUPPORT | |
| 5-27. | 2414P4755 | [1] | COVER | COVER |
| 6. | 2479Z932 | [1] | SWITCH | KOB |
| 8. | 2416P10732 | [1] | SUPPORT | |
| 9. | 2416T15796 | [1] | BRACKET | |
| 10. | 2419P2245 | [1] | PIN | PIN |
| 11. | 2416Z376 | [1] | RUBBER | |
| 12. | 2419T3603 | [1] | PIN | PIN |
| 14. | 2406P2557 | [2] | GRIP | |
| 16. | 2414Z265 | [1] | COVER | KOB |
| 17. | 2418T12177 | [4] | PLATE | |
| 18. | ZS23C10040 | [4] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 20. | ZS31C04030 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOBM04x0.7x30mm |
| 22. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZN18C16010 | [2] | NUT | KOBM16x2.0mm |
| 25. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 26. | ZW16K04000 | [4] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 27. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 29. | 2418T5373C2 | [4] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 30. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 31. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 32. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 33. | ZP15K02020 | [2] | SPLIT PIN | KOB |
| 34. | 2417R63 | [1] | SPRING | KOB |
| 35. | 2420Z699 | [1] | GROMMET | KOB |
| 38. | 24100X2144F2 | [1] | REMOTE CONTROL ASSY SEE FIG 03-006-01 &03-006-02 | |
| 39. | 2406P3492D1 | [1] | LEVER | LEVER |
| 40. | 2406P3492D2 | [11] | LEVER | LEVER |
| 41. | 2420T4479 | [12] | NUT | KOB3/8"-14UNF |
