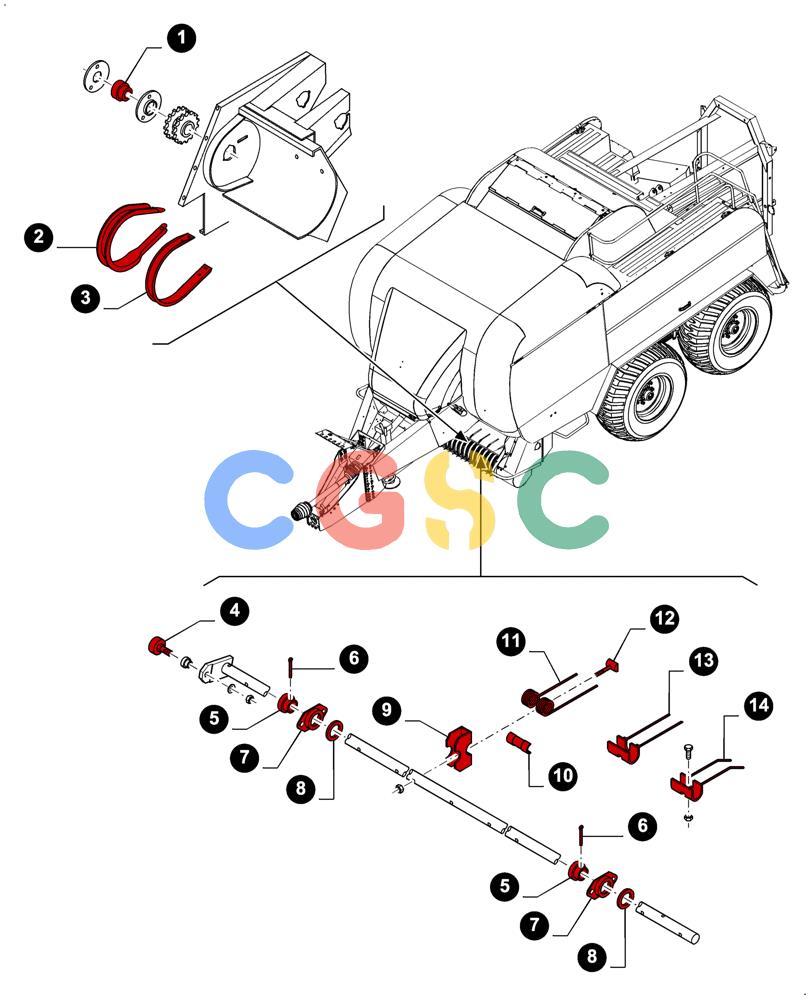

凯斯零件查询(LB433S) - BIG RECTANGULAR BALER (9/08-12/12) (00.00LB023[01]) - MAINTENANCE PARTS, PICK-UP FRAME, PICK-UP REEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
405 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89837842
|
[4] |
BEARING ASSY
|
ZED
Superseded by part number: 9837842
|
| 2. |
84801631
|
[27] |
GUARD
|
ZED
, Serial Range: -C799 Superseded by part number: 84468627
|
| 2. |
84214800
|
[27] |
GUARD
|
ZED
, Serial Range: -F800895 Superseded by part number: 84468627
|
| 2. |
84468627
|
[27] |
GUARD
|
ZED
, Start Serial: D896
|
| 3. |
84801614
|
[1] |
GUARD
|
ZED
, Serial Range: -C799 Superseded by part number: 84274384
|
| 3. |
84214795
|
[1] |
GUARD
|
ZED
, Serial Range: -F800895 Superseded by part number: 84274384
|
| 3. |
84274384
|
[1] |
BRACKET
|
ZED
, Start Serial: D896
|
| 4. |
84056924
|
[4] |
CAM FOLLOWER,Tine Shaft
|
ZED
|
| 5. |
54770
|
[1] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 6. |
136521
|
[1] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
|
| 7. |
54695
|
[1] |
BEARING HOUSING
|
NH
|
| 8. |
442245
|
[1] |
WASHER,35mm ID x 51.5mm OD x 0.8mm Thk
|
ZED
|
| 9. |
86627654
|
[1] |
SPACER
|
NH
Superseded by part number: 84427925
|
| 10. |
425870
|
[1] |
BRACKET
|
ZED
|
| 11. |
84074264
|
[1] |
REEL TINE,Coiled, 2 Prongs, 145mm L
|
ZED
,, Serial Range: -C895
|
| 11. |
84473346
|
[1] |
TINE
|
PLO
,, Start Serial: D896
|
| 12. |
535866
|
[1] |
SCREW
|
GI
|
| 13. |
84056883
|
[1] |
TINE,2 Prongs, 96.52mm L
|
ZED
Inside
|
| 14. |
9847572
|
[1] |
TINE,2 Prongs, 96.52mm L
|
NH
Outside
|
