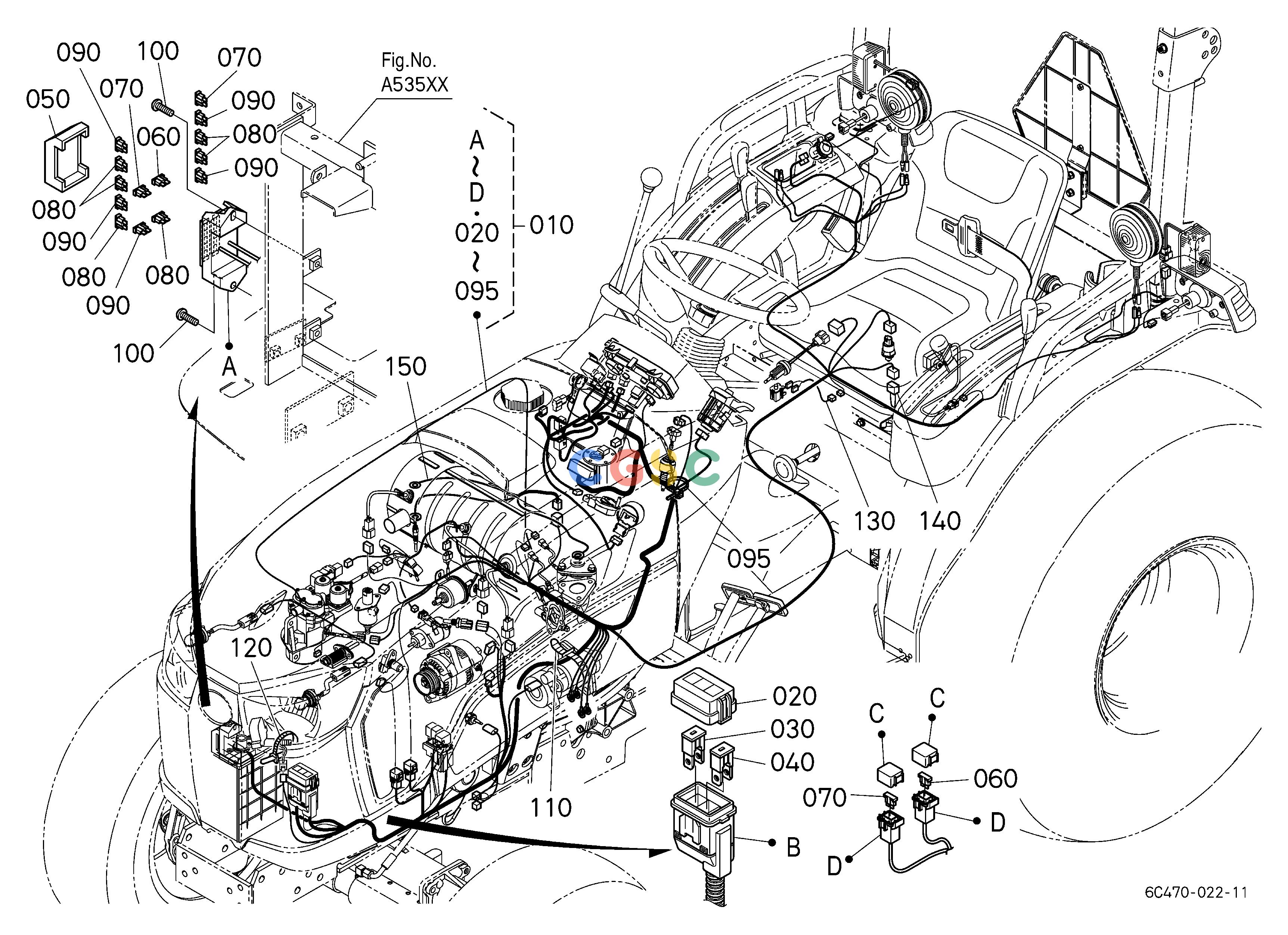

久保田零件查询B50103 ELECTRICAL WIRING ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
127 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C41030402
|
[1] |
HARNESS,WIRE,ASSY
|
8.6460(lbs); 3.930
|
| 010. |
6C41030403
|
[1] |
HARNESS,WIRE,ASSY
|
8.6460(lbs); 3.930
|
| 020. |
6C23030440
|
[1] |
CAP
|
0.0286(lbs); 0.013
|
| 030. |
3C15177880
|
[1] |
FUSE,SLOW-BLOW
|
0.0110(lbs); 0.005
|
| 040. |
1747860080
|
[1] |
FUSE
|
0.0176(lbs); 0.008
|
| 050. |
6C41030430
|
[1] |
CAP(FUSE BOX,BH)
|
0.0176(lbs); 0.008
|
| 060. |
5H05041660
|
[2] |
FUSE,AUTO(30A)
|
0.0022(lbs); 0.001
|
| 070. |
5H05041630
|
[3] |
FUSE
|
0.0022(lbs); 0.001
|
| 080. |
5H05041620
|
[6] |
FUSE
|
0.0066(lbs); 0.003
|
| 090. |
T106530430
|
[5] |
FUSE
|
0.0022(lbs); 0.001
|
| 095. |
6C47230460
|
[1] |
CLAMP,CORD(CL105800B)
|
0.0044(lbs); 0.002
|
| 100. |
0301450620
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 110. |
5531141260
|
[1] |
BAND,CORD
|
0.0154(lbs); 0.007
|
| 120. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 130. |
6C47030152
|
[1] |
HARNESS,WIRE(SEAT,SU
|
0.0374(lbs); 0.017
|
| 140. |
6C47030160
|
[1] |
HARNESS,WIRE(CONNECTION,SU)
|
0.0110(lbs); 0.005
|
| 150. |
6C43030632
|
[1] |
HARNESS,WIRE(GLOW)
|
0.1694(lbs); 0.077
|
