神钢零件查询(K912A) - EXCAVATOR BTW LC-2003 - LC-2016 (1/85-12/03) (06-004) - PUMP ASSY (2441U681F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
767 次

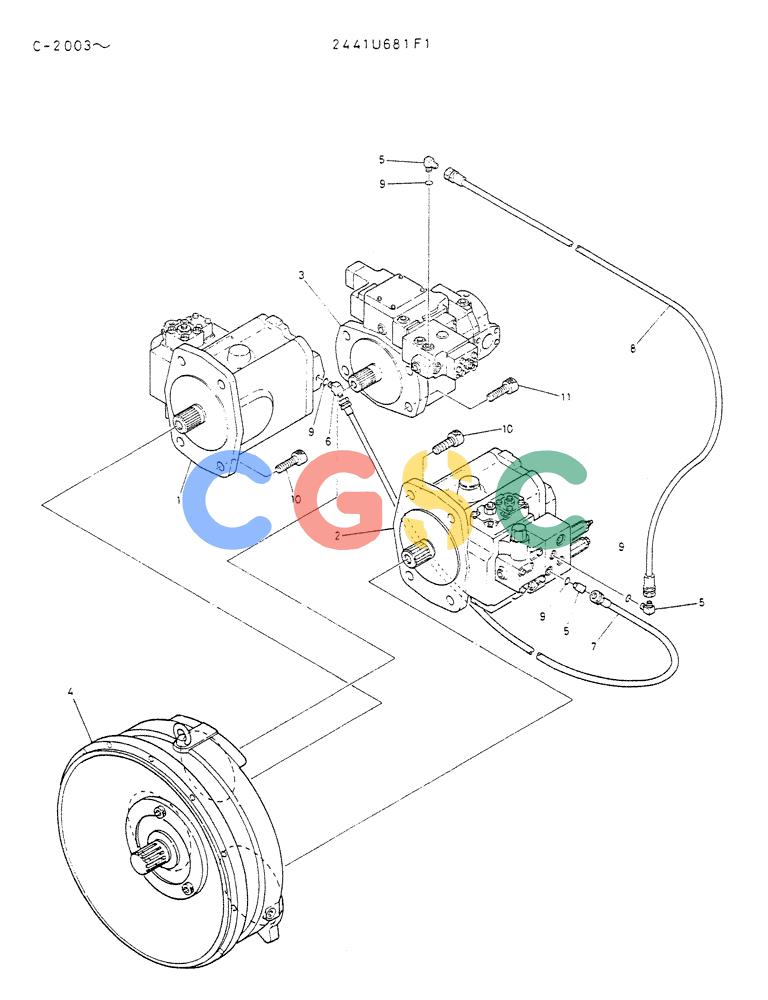

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U681F1 | [1] | PUMP ASSY | PUMP ASSY |
| 1. | 2441U716F1 | [1] | PUMP | KOBNO.1 |
| 2. | 2441U716F2 | [1] | PUMP | KOBASSY, NO. 2 |
| 3. | 2441U717F1 | [1] | PUMP | KOBNO. 3 |
| 4. | 2401U14F2 | [1] | DIVIDER | KOBSee Figure 06-004-01 |
| 5. | 2441U681S5 | [3] | LUBE NIPPLE | KOB |
| 6. | 2441U681S6 | [1] | LUBE NIPPLE | KOB |
| 7. | 2441U681S7 | [1] | HOSE | KOB |
| 8. | 2441U681S8 | [1] | HOSE | KOB |
| 9. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 10. | ZS23C20045 | [8] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew |
| 11. | ZS23C20040 | [4] | CAPSCREW,Hex Socket Head, M20 x 40mm | KOB |
