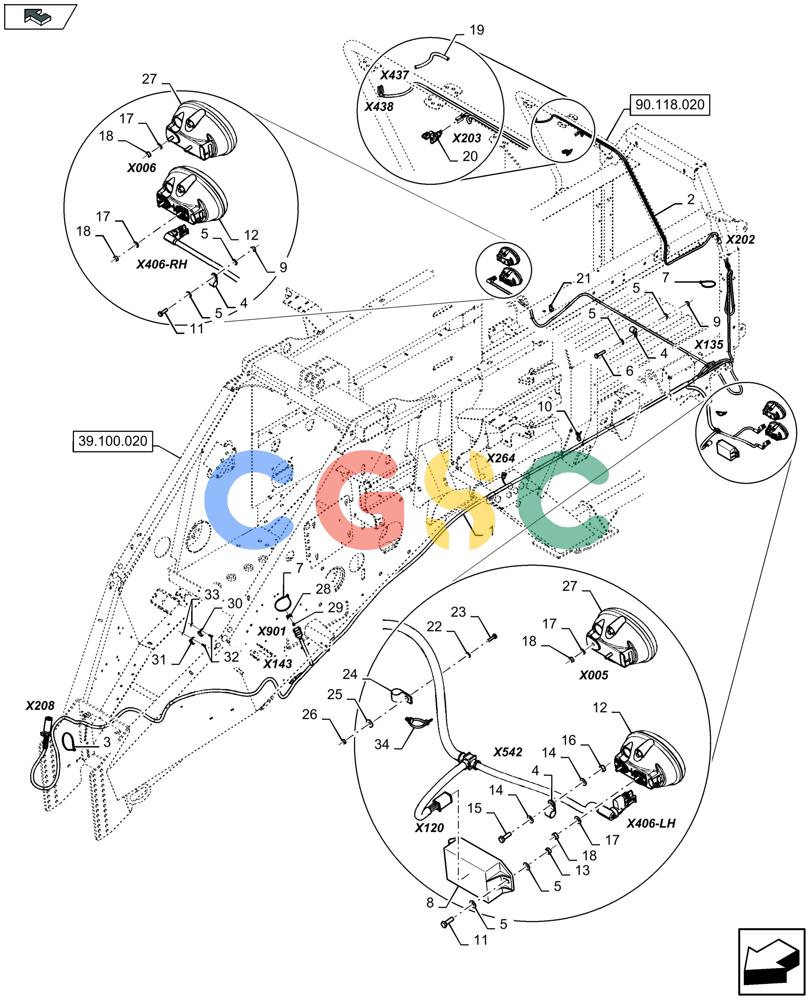

| 1. |
47585889
|
[1] |
WIRE HARNESS
|
ZED
|
| 1. |
47966449
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
47415539
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
47966412
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
84449335
|
[3] |
CABLE TIE,346mm L
|
ZED
|
| 4. |
86625035
|
[1] |
CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type
|
FAR
|
| 5. |
322357
|
[16] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 6. |
43117
|
[3] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 7. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 8. |
86561136
|
[1] |
MODULE
|
NH
|
| 9. |
9706755
|
[5] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 10. |
82013031
|
[1] |
CABLE TIE,193mm L
|
BAS
Superseded by part number: 87718512
|
| 11. |
120100
|
[4] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 12. |
84245246
|
[2] |
LIGHT
|
JES
Rear Oval Tail Light, Stop Light
|
| 13. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 14. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 15. |
120104
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 16. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 17. |
9824326
|
[8] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
| 18. |
2977215
|
[8] |
NUT,M5 x 0.8, Cl 8
|
BER
Superseded by part number: 80043440
|
| 19. |
47427651
|
[2] |
CONDUIT
|
CUR
L=10cm
|
| 20. |
84191453
|
[1] |
SOCKET,12/24V, 20A
|
DUB
|
| 21. |
134578
|
[1] |
CLAMP,J, 7/16" x 1/2" hole
|
GI
|
| 22. |
140013
|
[1] |
WASHER,M4
|
PA
Superseded by part number: 89824840
|
| 23. |
412064
|
[1] |
BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd
|
NH
|
| 24. |
9706748
|
[1] |
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 25. |
335872
|
[1] |
WASHER,4.1mm ID x 15mm OD x 1.6mm Thk
|
ZED
|
| 26. |
100012
|
[1] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 27. |
87356311
|
[2] |
LAMP,Halogen, 12V, 21W, Amber
|
JES
|
| 28. |
86590413
|
[1] |
BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk
|
ZED
|
| 29. |
445394
|
[1] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 30. |
84818444
|
[1] |
CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 31. |
84818443
|
[5] |
CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 32. |
445395
|
[6] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
|
| 33. |
87013357
|
[6] |
WASHER,5.5mm ID x 15mm OD x 1.6mm Thk
|
PA
|
| 34. |
84292754
|
[4] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
