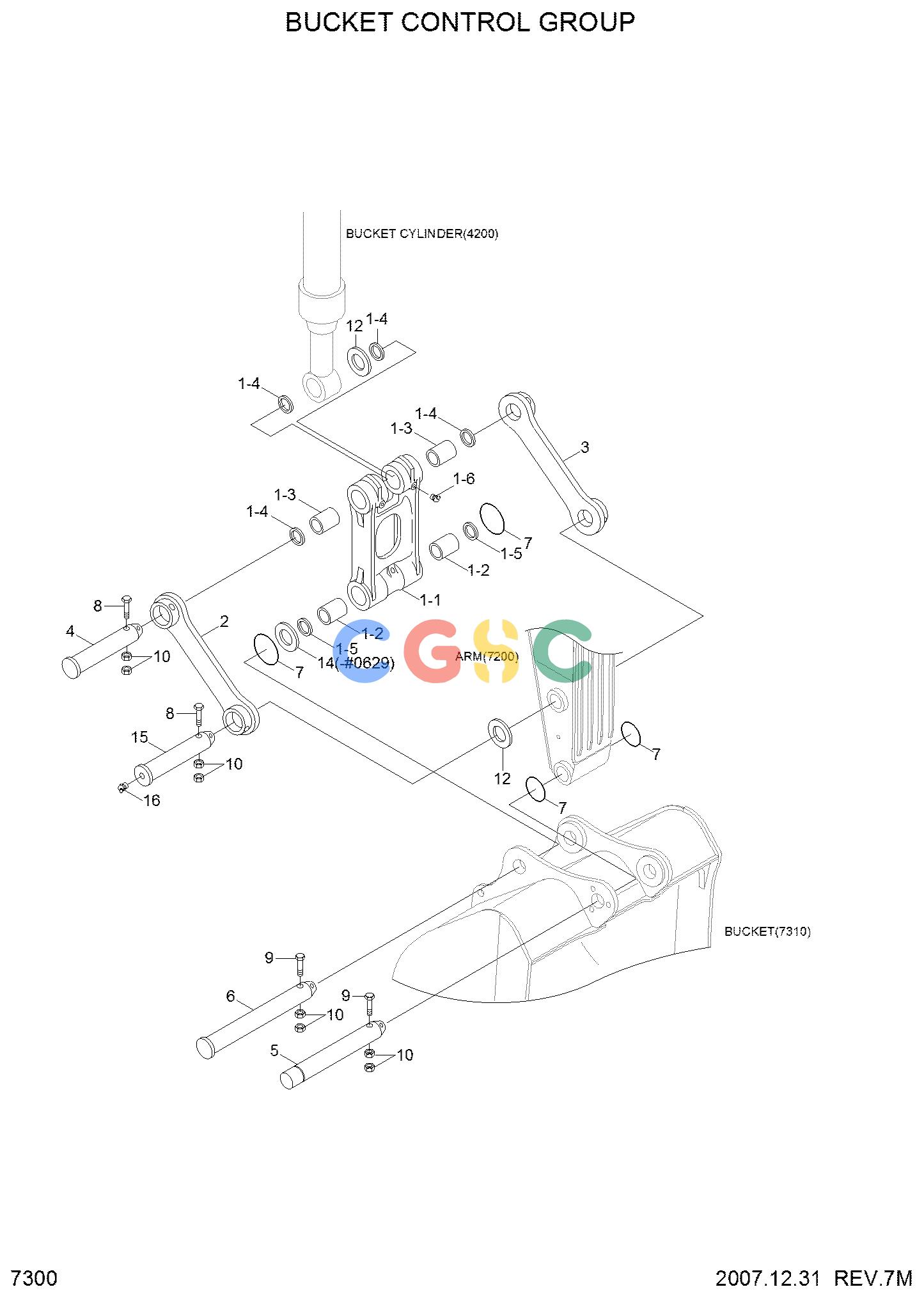

现代零件查询R450LC-7A BUCKET CONTROL GROUPEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
61NB-40010
|
[1] |
CONTROL ROD ASSY
|
|
| 1. |
61NB-40010BG
|
[1] |
CONTROL ROD ASSY
|
|
| N1-1. |
61NB-40090
|
[1] |
CONTROL ROD
|
|
| N1-1. |
61NB-40090BG
|
[1] |
CONTROL ROD
|
|
| 1-2. |
61EN-15100
|
[2] |
BUSHING
|
|
| 1-3. |
61EN-13350
|
[2] |
BUSHING
|
|
| 1-4. |
S700-100208
|
[6] |
DUST SEAL-DKIY TYPE
|
|
| 1-5. |
S651-810002
|
[3] |
NIPPLE-GREASE
|
|
| 2. |
61NB-40101
|
[1] |
CONTROL LINK-LH
|
|
| 2. |
61NB-40101BG
|
[1] |
CONTROL LINK-LH
|
|
| 2. |
61QB-40100BG
|
[1] |
CONTROL LINK-LH
|
|
| 3. |
61NB-40031
|
[1] |
CONTROL LINK-RH
|
|
| 3. |
61NB-40031BG
|
[1] |
CONTROL LINK-RH
|
|
| 3. |
61QB-40030BG
|
[1] |
CONTROL LINK-RH
|
|
| 4. |
61NB-40052
|
[1] |
PIN
|
|
| 4. |
61NB-40052-AS
|
[1] |
PIN
|
|
| 5. |
61NB-40060
|
[1] |
PIN
|
|
| 5. |
61NB-40061
|
[1] |
PIN
|
|
| 5. |
61NB-40061-AS
|
[1] |
PIN
|
|
| 6. |
61NB-40072
|
[1] |
PIN
|
|
| 6. |
61NB-40072-AS
|
[1] |
PIN
|
|
| 7. |
61NB-40081
|
[1] |
PIN
|
|
| 7. |
61NB-40081-AS
|
[1] |
PIN
|
|
| 8. |
S017-242006
|
[4] |
BOLT-HEX
|
|
| 9. |
S205-24100B
|
[8] |
NUT-HEX
|
|
| 10. |
E161-3054
|
[4] |
O-RING
|
|
| 11. |
S651-810002
|
[1] |
NIPPLE-GREASE
|
|
| 12. |
S391-100165
|
[8] |
SHIM-ROUND(1.0T)
|
|
| 12. |
S391-100165
|
[4] |
SHIM-ROUND(1.0T)
|
|
