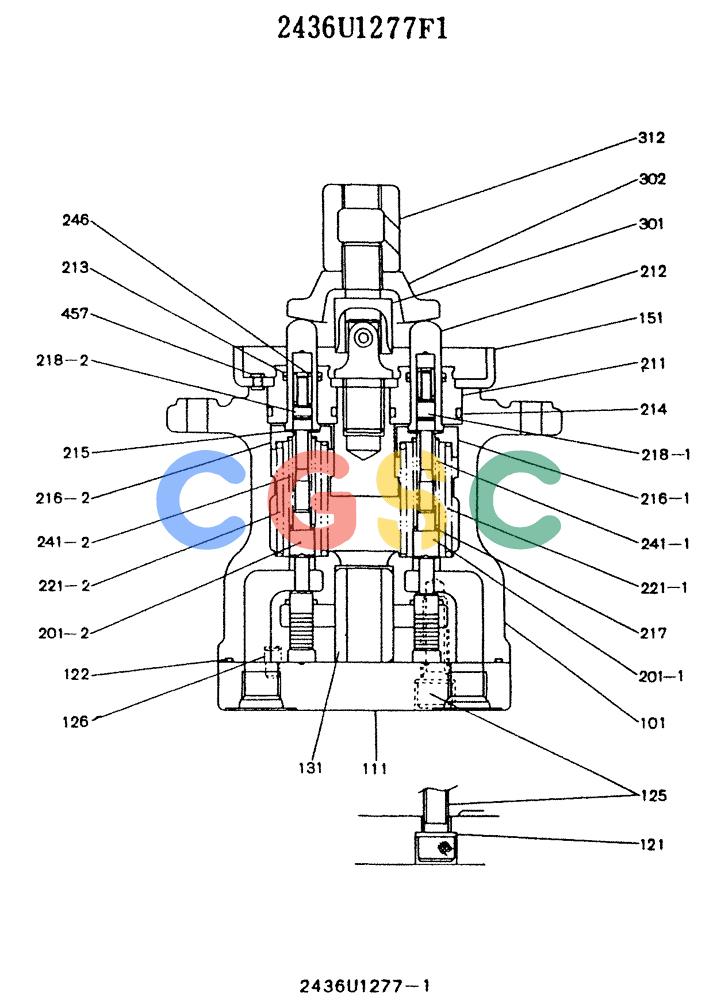

神钢零件查询(K912LC) - MARK II EXCAVATOR ASN YC-0301 (1/88-12/03) (11-013) - VALVE ASSY, PILOT (2436U1277F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
172 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1277F1 | [1] | VALVE, PILOT VALVE ASSY, PILOT | VALVE, PILOT VALVE ASSY, PILOT |
| 101. | 2436U1277S101 | [1] | BLOCK ASSY. | KOB |
| 111. | 2436U1277S111 | [1] | PLATE | |
| 121. | 2436U1277S121 | [2] | WASHER | KOB |
| 122. | 2436U1277S122 | [1] | O-RING | KOB |
| 125. | ZS23C08030 | [2] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 126. | ZP26D05010 | [1] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 131. | 2436U1277S131 | [1] | BUSHING | KOB |
| 151. | 2436U944S151 | [1] | PLATE | KOB |
| 201-1. | 2436U1277S2011 | [2] | SPOOL | KOB |
| 201-2. | 2436U1277S2012 | [2] | SPOOL | KOB Superseded by part number: 2436U1277S2011 |
| 211. | 2436U1277S211 | [4] | PLUG | KOB |
| 212. | 2436U1277S212 | [4] | ROD | KOB |
| 213. | 2436U1277S213 | [4] | SEAL | KOB |
| 214. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 215. | 2436U1277S215 | [8] | WASHER | KOB |
| 216-1. | 2436U1277S2161 | [2] | SPRING SEAT | KOB |
| 216-2. | 2436U1277S2162 | [2] | SPRING SEAT | KOB |
| 217. | 2436U1277S217 | [4] | WASHER | KOB |
| 218-1. | 2436U1277S2181 | [2] | PIN | KOB |
| 218-2. | 2436U1277S2182 | [2] | SPRING SEAT | KOB |
| 221-1. | 2436U1277S2211 | [2] | SPRING | KOB |
| 221-2. | 2436U1277S2212 | [2] | SPRING | KOB |
| 241-1. | 2436U1277S2411 | [2] | SPRING | KOB |
| 241-2. | 2436U1277S2412 | [2] | SPRING | KOB |
| 246. | 2436U1277S246 | [4] | SPRING | KOB |
| 301. | 2436U944S301 | [1] | KNUCKLE JOINT | KOB |
| 302. | 2436U1277S302 | [1] | BOOT | KOB |
| 312. | 2436U1242S312 | [1] | NUT | KOB Superseded by part number: PH30V00002S312 |
| 457. | 2436U1242S457 | [1] | GROMMET | KOB |
