纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-001[02]) - VALVE ASSY, CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
854 次

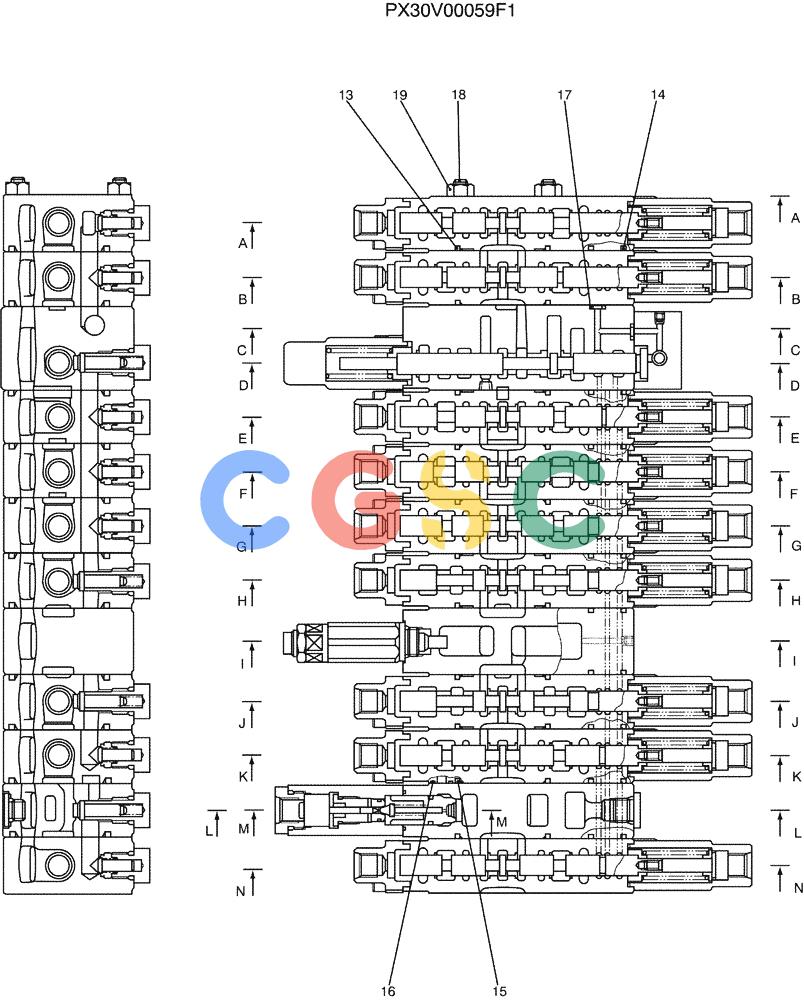

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX30V00059F1 | [1] | VALVE | KOBASSY, CONTROL Superseded by part number: PX30V00041F2 |
| 1. | PX30V00048F1 | [1] | VALVE | KOBASSY, CONTROL (DOZER), SEE FIG. 07-002 |
| 2. | PX30V00049F2 | [1] | VALVE | KOBASSY, CONTROL (SLEWING), SEE FIG. 07-003 Superseded by part number: PX30V00049F3 |
| 3. | PX30V00050F1 | [1] | VALVE | KOBASSY, CONTROL (SUPPLY & STRAIGHT TRAVEL), SEE FIG. 07-004 |
| 4. | PX30V00051F1 | [1] | VALVE | KOBASSY, CONTROL (ARM), SEE FIG. 07-005 Superseded by part number: PX30V00051F2 |
| 5. | PX30V00064F1 | [1] | VALVE | KOBASSY, CONTROL (SERVICE), SEE FIG. 07-006 |
| 6. | PX30V00065F1 | [1] | VALVE | KOBASSY, CONTROL (BOOM SWING), SEE FIG. 07-007 |
| 7. | PX30V00054F1 | [1] | VALVE | KOBASSY, CONTROL (TRAVEL RIGHT), SEE FIG. 07-008 Superseded by part number: PX30V00054F2 |
| 8. | PX30V00055F1 | [1] | VALVE | KOBASSY, CONTROL (SUPPLY), SEE FIG. 07-009 |
| 9. | PX30V00056F1 | [1] | VALVE | KOBASSY, CONTROL (TRAVEL LEFT), SEE FIG. 07-010 Superseded by part number: PX30V00056F2 |
| 10. | PX30V00057F1 | [1] | VALVE | KOBASSY, CONTROL (BOOM), SEE FIG. 07-011 Superseded by part number: PX30V00057F2 |
| 11. | PM30V00048F1 | [1] | VALVE | KOBASSY, CONTROL (BOOM LOCK), SEE FIG. 07-012 |
| 12. | PX30V00058F1 | [1] | VALVE | KOBASSY, CONTROL (BUCKET), SEE FIG. 07-013 Superseded by part number: PX30V00058F2 |
| 13. | PH30V00003S015 | [11] | O-RING | KOB |
| 14. | ZD11P01800 | [10] | O-RING | KOB |
| 15. | ZD12P01000 | [1] | O-RING | KOB |
| 16. | ZD12P00900 | [1] | O-RING | KOB |
| 17. | ZD11P00600 | [1] | O-RING | KOB |
| 18. | PW30V00017S022 | [4] | BOLT | KOB |
| 19. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
