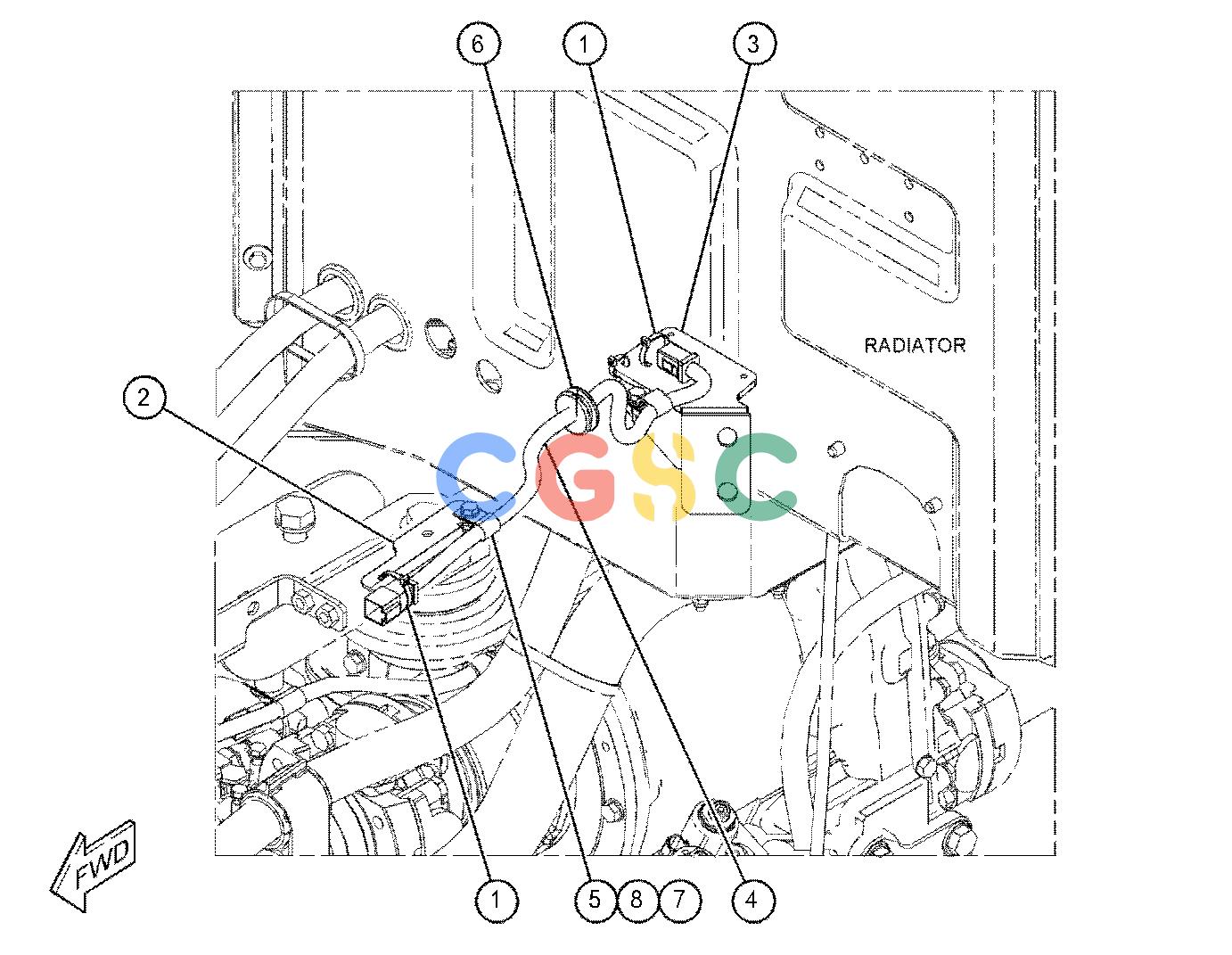

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 459-2067 | [1] | PLATE AS | |
| 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | ||
| 3. | 459-2198 | [1] | PLATE AS | |
| 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | ||
| 4. | 459-6326Y | [1] | HARNESS AS-SENSOR(INERTIAL MEASUREMENT UNIT) | |
| 5. | 149-9129 | [2] | CLIP(LOOP) | |
| 6. | 6H-4005 | [1] | GROMMET | |
| 7. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
