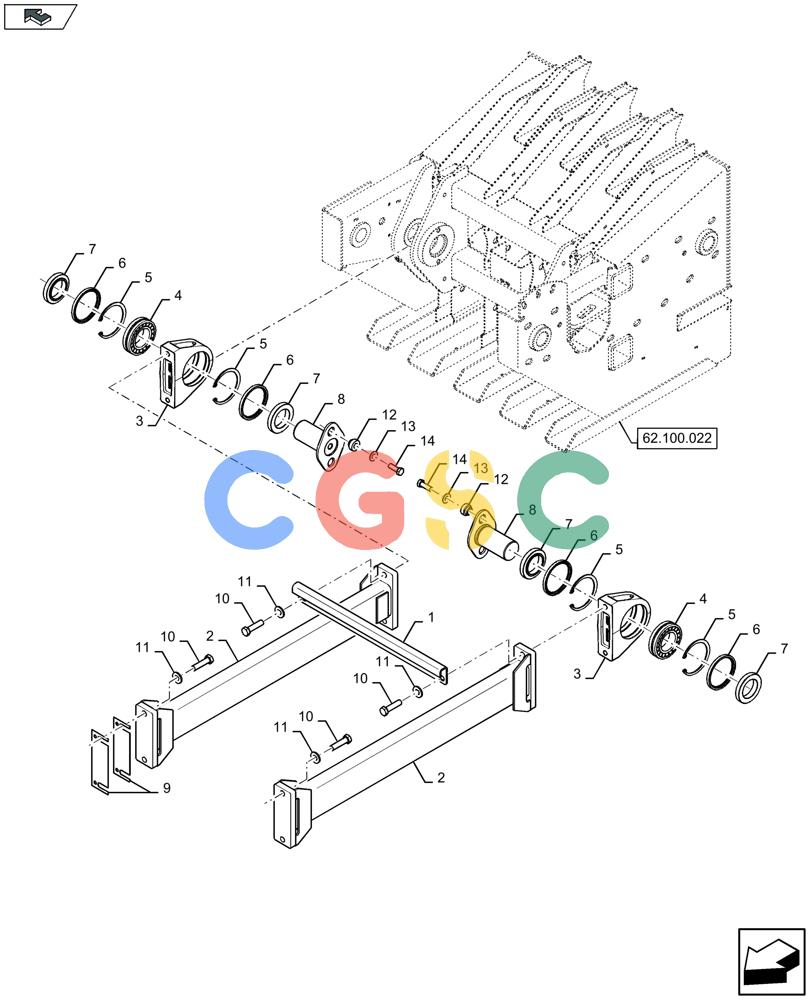

凯斯零件查询(LB434S XL) - BALER (11/16-) (62.100.011) - PLUNGER, RODS - D160 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47822182
|
[1] |
PROFILE
|
ZED
|
| 1. |
47822090
|
[1] |
PROFILE
|
ZED
|
| 2. |
87664702
|
[2] |
LINK CONROD
|
ZED
|
| 2. |
87664701
|
[2] |
LINK CONROD
|
ZED
|
| 3. |
47786818
|
[2] |
BEARING HOUSING
|
ZED
|
| 3. |
47786819
|
[2] |
BEARING HOUSING
|
ZED
|
| 4. |
9516384
|
[2] |
SPHERICAL BEARING,55mm ID x 100mm OD x 25mm W
|
ZED
|
| 4. |
9838113
|
[2] |
BEARING ASSY,65mm ID x 120mm OD x 31mm W
|
ZED
|
| 5. |
370026
|
[4] |
SNAP RING,M100 x 3mm Thk, Internal
|
ZED
Superseded by part number: S301572
|
| 5. |
412270
|
[4] |
SNAP RING,M120 x 4mm Thk, Internal
|
ZED
|
| 6. |
84004409
|
[4] |
SEAL,85mm ID x 100mm OD x 9mm Thk
|
ZED
|
| 6. |
9838315
|
[4] |
SEALING RING,100mm ID x 120mm OD x 10mm Thk
|
ZED
|
| 7. |
84000584
|
[4] |
SPACER,55mm ID x 85mm OD x 16mm L
|
ZED
|
| 7. |
9838119
|
[4] |
THRUST RING,55mm ID x 100mm OD x 20mm Thk
|
ZED
|
| 8. |
47940501
|
[2] |
PIN
|
ZED
|
| 8. |
47938295
|
[2] |
PIN
|
ZED
|
| 9. |
84000581
|
[2] |
ADJUSTING PLATE
|
ZED
|
| 9. |
9838109
|
[2] |
ADJUSTING PLATE
|
ZED
|
| 10. |
440419
|
[8] |
BOLT,Hex, M14 x 2 x 55mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 86523012
|
| 10. |
412398
|
[8] |
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
|
NH
|
| 11. |
84011662
|
[8] |
WASHER,14mm ID x 32mm OD x 3.5mm Thk
|
ZED
|
| 11. |
394631
|
[8] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
|
| 12. |
47862736
|
[4] |
|
SPACER
|
| 13. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 14. |
300389
|
[4] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
