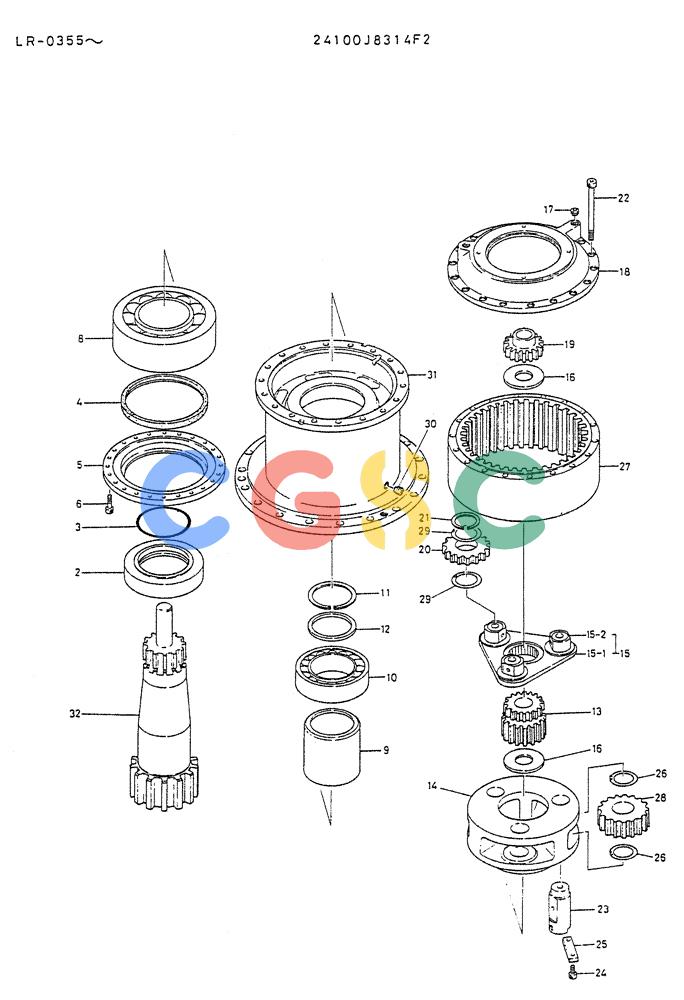

神钢零件查询(K914) - EXCAVATOR ASN LR-0143 (1/79-12/03) (01-011) - REDUCTION UNIT P/N 24100J8314F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J8314F2 | [1] | REDUCTION UNIT REDUCTION UNIT | REDUCTION UNIT REDUCTION UNIT |
| 2. | 2418T13777 | [1] | SLEEVE | KOB |
| 3. | ZD11G14000 | [1] | O-RING,139.40mm ID x 145.60mm OD x 3.10mm | KOBID 139.4 ± 1.12 x OD 145mm |
| 4. | ZD21T23000 | [1] | OIL SEAL | KOB |
| 5. | 2418N2788 | [1] | RETAINER | RETAINER |
| 6. | ZS23C10040 | [24] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 8. | R25P0047D12 | [1] | BEARING | KOB |
| 9. | 2418T9425 | [1] | SPACER | SPACER |
| 10. | 25Z494D16 | [1] | BEARING | KOB |
| 11. | 2418R2052 | [1] | RING ,SANP | |
| 12. | 2418T9835 | [1] | SPACER | KOB |
| 13. | 2401P808 | [1] | SUN GEAR | KOB |
| 14. | 2413J295 | [1] | AIR COMPRESSOR | AIR COMPRESSOR |
| 15. | 2413N353F1 | [1] | SPIDER | KOB |
| 15-1. | 2413N353 | [1] | SPIDER | |
| 15-2. | 2410P699 | [3] | SHAFT | |
| 16. | 2418T9426 | [2] | SPACER | KOB |
| 17. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 18. | 2414J1413 | [1] | COVER | COVER |
| 19. | 2401P993 | [1] | SUN GEAR | KOB |
| 20. | 2401P807 | [3] | PINION | KOB |
| 21. | ZR16X06500 | [3] | SNAP RING | KOBRetaining -- ID 65 x OD 81 x Th 2.5mm |
| 22. | 2420T4730D1 | [18] | SCREW,M16 x 190mm | KOB |
| 23. | 2410P700 | [3] | SHAFT | KOB |
| 24. | ZS23C08025 | [6] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 25. | 2418T9427 | [3] | LOCKING PLATE | KOB |
| 26. | 2418T5454 | [6] | THRUST WASHER | KOB |
| 27. | 2401N501 | [1] | GEAR, INTERNAL | GEAR, INTERNAL |
| 28. | 2401P809 | [3] | PINION, PLANETARY | PINION, PLANETARY |
| 29. | 2418T9428 | [6] | THRUST WASHER | KOB |
| 30. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 31. | 2414J1628 | [1] | HOUSING | |
| 32. | 2401N631 | [1] | SHAFT, PINION | SHAFT, PINION |
