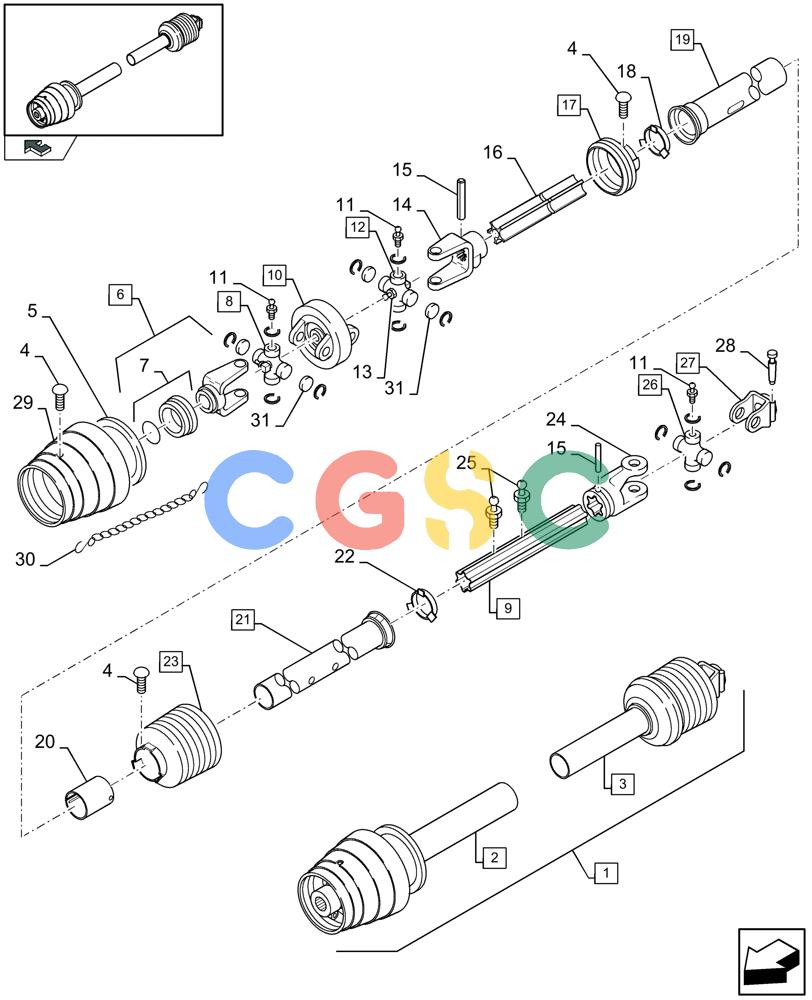

凯斯零件查询(LBX322S) - BIG RECTANGULAR BALER (10/04-12/08) (01.02[01]) - POWER TAKE-OFF, FRONT - C527 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
191 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84110103
|
[1] |
PTO SHAFT
|
ZED
6 Splines (1.3/8"), (2,3)
|
| 1. |
84110105
|
[1] |
PTO
|
ZED
20 Splines (1.3/4"), (2,3)
|
| 1. |
84110104
|
[1] |
PTO
|
ZED
21 Splines (1.3/8"), (2,3)
|
| 2. |
84819742
|
[1] |
PTO
|
ZED
6 Splines (1.3/8"), (4 to 8, 10 to 20, 29)
|
| 2. |
84819744
|
[1] |
PTO
|
ZED
20 Splines (1.3/4"), (4 to 8, 10 to 20, 29)
|
| 2. |
84819732
|
[1] |
PTO
|
ZED
21 Splines (1.3/8"), (4 to 8, 10 to 20, 29)
|
| 3. |
84819733
|
[1] |
PTO
|
ZED
(9, 15, 21-28)
|
| 4. |
80321803
|
[8] |
BOLT
|
ZED
M4 x 10 Superseded by part number: 72181877
|
| 5. |
84037068
|
[1] |
PLASTIC RING
|
ZED
BEARING ASSY
|
| 6. |
84819743
|
[1] |
YOKE
|
ZED
6 Splines (1.3/8"), (7)
|
| 6. |
84819745
|
[1] |
YOKE
|
ZED
20 Splines (1.3/4"), (7)
|
| 6. |
84819735
|
[1] |
YOKE
|
ZED
21 Splines (1.3/8"), (7)
|
| 7. |
84429875
|
[1] |
LOCKING TAB
|
ZED
6,21 Splines
|
| 7. |
84056793
|
[1] |
PIN
|
ZED
20 Splines (1.3/4") Superseded by part number: 86579910
|
| 8. |
84819736
|
[1] |
SPIDER
|
ZED
(11, 31) Superseded by part number: 84819738
|
| 9. |
84819741
|
[1] |
PTO SHAFT
|
ZED
(25)
|
| 10. |
84819737
|
[1] |
YOKE
|
ZED
|
| 11. |
80750236
|
[3] |
LUBE NIPPLE
|
ZED
Superseded by part number: 750236
|
| 12. |
84819738
|
[1] |
SPIDER
|
ZED
(11, 13, 31)
|
| 13. |
84037062
|
[1] |
LUBE NIPPLE
|
ZED
|
| 14. |
84819739
|
[1] |
YOKE
|
ZED
Superseded by part number: 87381489
|
| 15. |
80412360
|
[2] |
ROLL PIN
|
ZED
Superseded by part number: 838-31090
|
| 16. |
84819740
|
[1] |
PTO SHAFT
|
ZED
Superseded by part number: 87381490
|
| 17. |
84807059
|
[1] |
PROTECTION CAP
|
ZED
(4)
|
| 18. |
411728
|
[2] |
BEARING WASHER
|
NH
|
| 19. |
84819734
|
[1] |
PROTECTING COVER
|
ZED
(17-20)
|
| 20. |
84031199
|
[1] |
GUARD
|
ZED
|
| 21. |
84819713
|
[1] |
PROTECTING COVER
|
ZED
(22, 23)
|
| 22. |
84819707
|
[1] |
PROTECTION CAP
|
ZED
|
| 23. |
84819718
|
[1] |
PROTECTION CAP
|
ZED
(4)
|
| 24. |
84819717
|
[1] |
YOKE
|
ZED
|
| 25. |
80750220
|
[4] |
LUBE NIPPLE
|
ZED
|
| 26. |
84819714
|
[1] |
SPIDER
|
ZED
(11) Superseded by part number: 84355349
|
| 27. |
84037057
|
[1] |
YOKE
|
ZED
(28)
|
| 28. |
84037058
|
[1] |
LOCK PIN
|
ZED
Superseded by part number: 84031204
|
| 29. |
84807052
|
[1] |
PROTECTION CAP
|
ZED
|
| 30. |
89602979
|
[1] |
CHAIN
|
ZED
Superseded by part number: 700713239
|
| 31. |
NSS
|
[4] |
NOT SOLD SEPARAT
|
CON
Plate
|
