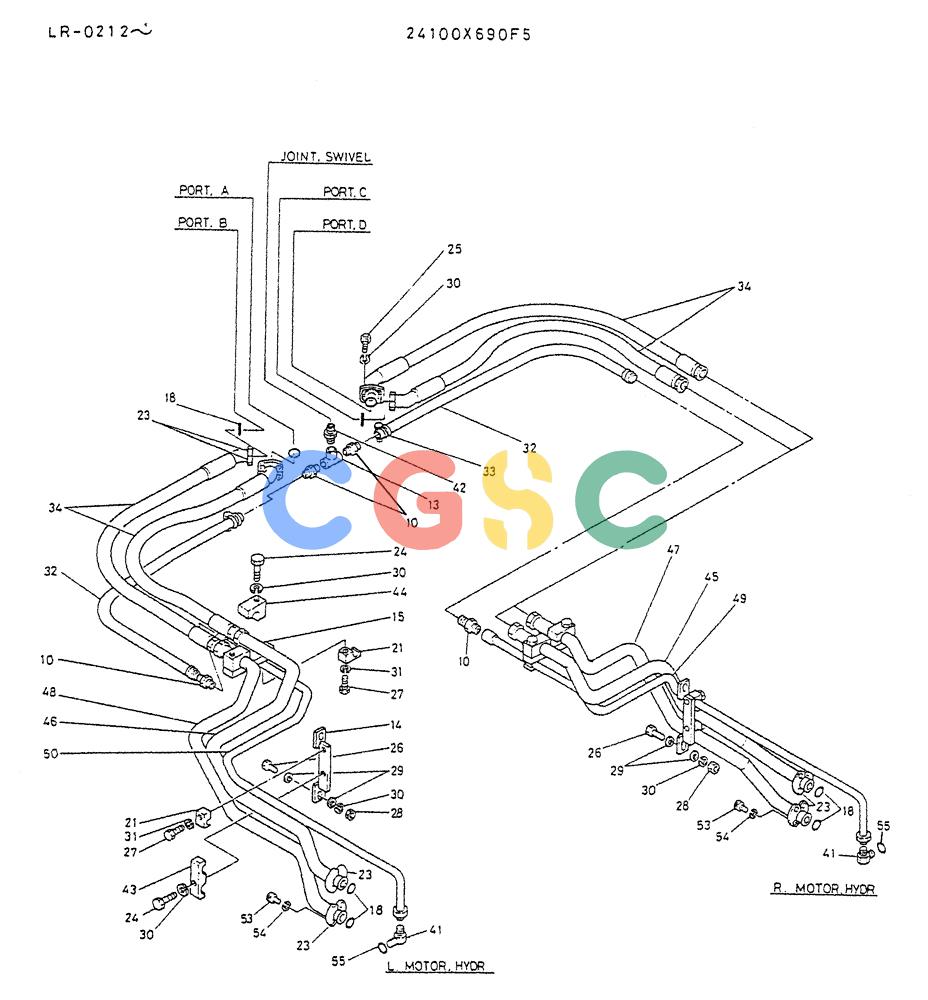

神钢零件查询(K914) - EXCAVATOR ASN LR-0143 (1/79-12/03) (06-015) - HYDR LINES, LOW P/N 24100X690F5 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X690F5 | [1] | HYDR LINES, LOWER | |
| 10. | 2444Z1695D6 | [4] | HYD CONNECTOR | KOB |
| 13. | ZG51U12000 | [1] | TEE | TEE |
| 14. | 2416T5110 | [2] | BRACKET | BRACKET |
| 15. | 2418T5620 | [2] | PLATE | |
| 18. | ZD12P03400 | [8] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 21. | ZC27X22012 | [4] | COLLAR | HIT |
| 23. | ZE13X16000 | [16] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 24. | ZS18C12065 | [6] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm -- Was ZS12C12065 |
| 25. | ZS12C12040 | [16] | CAPSCREW M12x1.75x40mm | CAPSCREW M12x1.75x40mm |
| 26. | ZS12C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 27. | ZS12C10050 | [4] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 28. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 29. | ZW11X12000 | [8] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 30. | ZW22X12000 | [26] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 31. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 32. | 2420R417 | [2] | HOSE | KOB |
| 33. | ZC15X02600 | [4] | CLAMP | KOB |
| 34. | 2444R646D1 | [4] | HOSE | KOB |
| 4 1. | ZK33F22008 | [2] | ELBOW | KOB Superseded by part number: ZA33F22008 |
| 42. | ZG21E12008 | [1] | CONNECTOR | CONNECTOR |
| 43. | 2432T1212 | [2] | CLAMP | KOB |
| 44. | 2432T1213 | [4] | CLAMP | CLAMP |
| 45. | 2418N2359D1 | [1] | TUBE | TUBE |
| 46. | 2418N2359D2 | [1] | RIGID TUBE | KOB |
| 47. | 2418N2360D1 | [1] | TUBE | TUBE |
| 48. | 2418N2360D2 | [1] | RIGID TUBE | KOB |
| 49. | 2418N2361D1 | [1] | RIGID TUBE | KOB |
| 50. | 2418N2361D2 | [1] | TUBE | TUBE |
| 53. | ZS23C12040 | [16] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 54. | ZW22K12000 | [16] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 55. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
