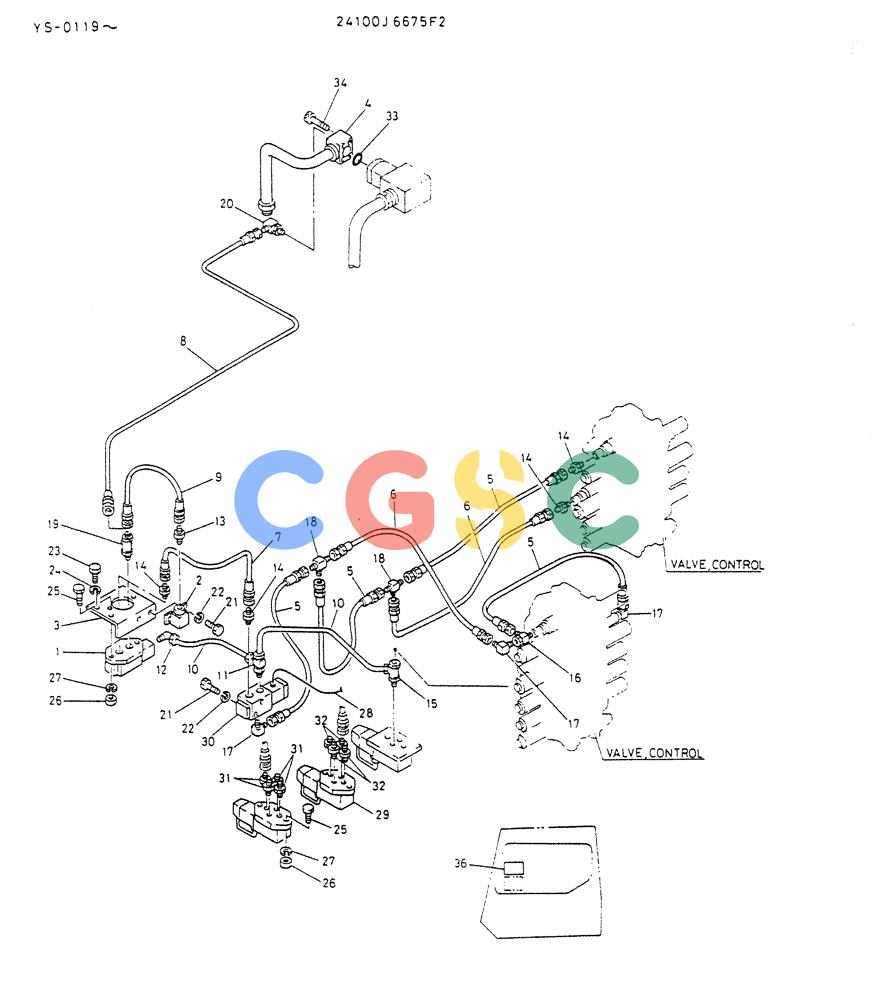

| . . | 24100J6675F2 | [1] | REWORK-CONTROL ASSY | |
| 1. | 2436R757F1 | [1] | VALVE, REDUCTION, Serial Range: YS.0119-YS.0132 | VALVE, REDUCTION, Serial Range: YS.0119-YS.0132 |
| . . | 2436R757F2 | [1] | VALVE | KOB, Start Serial: YS.0133- |
| 2. | 2479R1337F1 | [1] | PRESSURE SWITCH | KOB |
| 3. | 2416T20378 | [1] | BRACKET | BRACKET |
| 4. | 2418P18014 | [1] | TUBE | TUBE |
| 5. | 2420R349D100 | [4] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 6. | 2420R349D080 | [2] | HOSE,6.35mm ID x 800mm L | KOB800mm Long (31-1/2 in) |
| 7. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 8. | ZX26N04300 | [1] | HOSE | HOSE |
| 9. | ZX26N04025 | [1] | HOSE | HOSE |
| 10. | ZX15K08050 | [2] | PLASTIC-RUBBER TUBE | KOB |
| 11. | 2444Z2733 | [1] | TEE | KOB |
| 12. | ZH31M08004 | [1] | ELBOW | KOB |
| 13. | ZF23H10004 | [1] | HYD CONNECTOR | KOB |
| 14. | ZH22X04000 | [4] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 15. | 2444Z2734 | [1] | TEE | TEE |
| 16. | 2444T3324 | [1] | TEE | KOB |
| 17. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 18. | ZH52X04000 | [2] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 19. | 2444Z2538 | [1] | HYD CONNECTOR | KOB |
| 20. | 2444Z2539 | [1] | HYD CONNECTOR | KOB |
| 21. | ZS18C05050 | [4] | SCREW,Hex, M5 x 50mm | KOBM05x0.8x50mm |
| 22. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 23. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 25. | 2420N458D06020 | [6] | SCREW,Hex Socket Head, M6 x 20mm | KOB Superseded by part number: ZS28C06020 |
| 26. | ZN18C06005 | [6] | NUT | KOBM06x1.0mm |
| 27. | ZW26K06000 | [6] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 28. | 24100N4776F3 | [1] | HARNESS ASSY SEE FIG.05-027 | |
| 29. | 2436R732F1 | [2] | SOLENOID VALVE | KOB |
| 30. | 2436R688F2 | [1] | SOLENOID VALVE | KOB |
| 31. | ZH22X06000 | [4] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 32. | ZH22X04006 | [4] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 33. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 34. | 2420N458D12160 | [4] | SCREW | KOB |
| 36. | 2432N1147 | [1] | LABEL | KOB |
