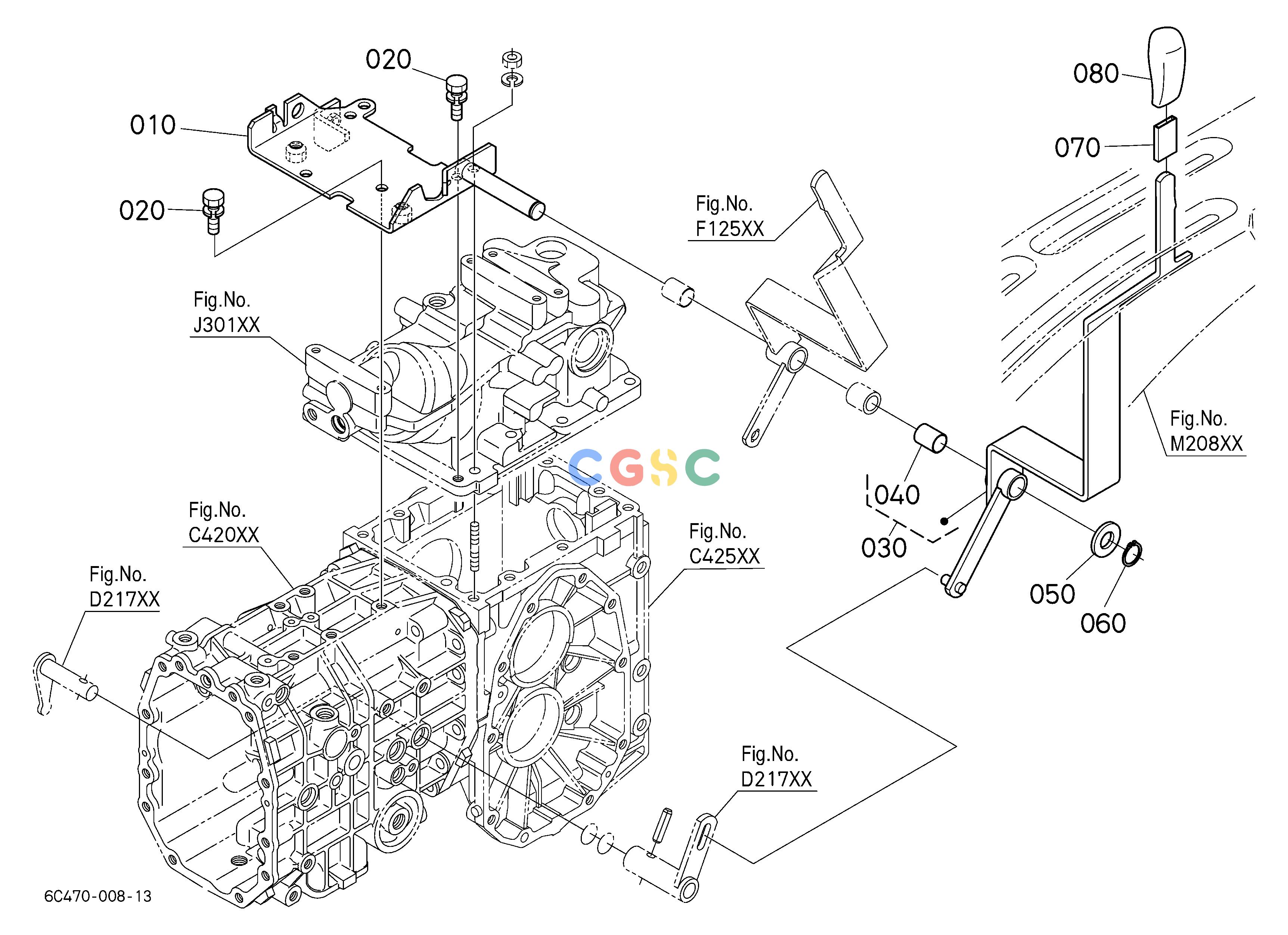

久保田零件查询F11002 RANGE SHIFT LEVER CONTROL LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C41011180
|
[1] |
BRACKET(FULCRUM)
|
2.9040(lbs); 1.320
|
| 010. |
6C41011183
|
[1] |
BRACKET(FULCRUM)
|
2.9040(lbs); 1.320
|
| 010. |
6C41011184
|
[1] |
BRACKET(FULCRUM)
|
2.9040(lbs); 1.320
|
| 020. |
0112351025
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 030. |
6C20018500
|
[1] |
LEVER,RANGE SHIFT
|
2.8600(lbs); 1.300
|
| 040. |
0851101825
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 050. |
0401150180
|
[1] |
WASHER,PLAIN
|
0.0264(lbs); 0.012
|
| 060. |
0461200180
|
[1] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6A90042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 080. |
6A70018352
|
[1] |
GRIP,ORENGE 83
|
0.1144(lbs); 0.052
|
