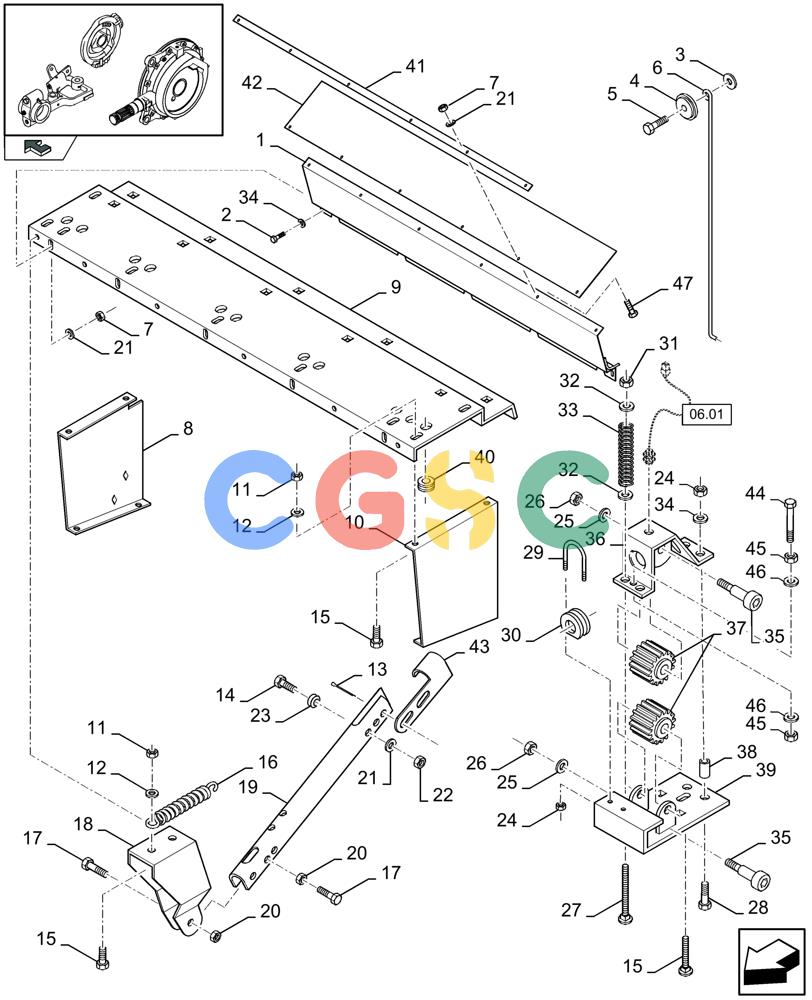

| 1. |
84078873
|
[1] |
PLATE
|
ZED
|
| 1. |
84817172
|
[1] |
PLATE
|
ZED
|
| 2. |
86508568
|
[1] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 3. |
80335872
|
[1] |
WASHER
|
ZED
Superseded by part number: 335872
|
| 4. |
84011441
|
[1] |
RING,6mm ID x 60mm OD x 2mm Thk
|
ZED
|
| 5. |
89512290
|
[1] |
RIVET
|
ZED
Superseded by part number: 9512290
|
| 6. |
84019720
|
[1] |
ROD
|
ZED
|
| 7. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 8. |
84074558
|
[1] |
SUPPORT
|
ZED
RH
|
| 9. |
84078879
|
[1] |
SUPPORT
|
ZED
|
| 9. |
84817128
|
[1] |
SUPPORT
|
ZED
|
| 10. |
84000177
|
[1] |
SUPPORT
|
ZED
LH
|
| 11. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
80140045
|
[1] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 13. |
80130004
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 130004
|
| 14. |
80043117
|
[1] |
SCREW
|
ZED
Superseded by part number: 87317695
|
| 15. |
80120041
|
[1] |
CARRIAGE BOLT
|
ZED
Superseded by part number: 120041
|
| 16. |
84806599
|
[1] |
SPRING
|
ZED
Upper
|
| 16. |
84807327
|
[1] |
SPRING
|
ZED
Lower
|
| 17. |
80043130
|
[1] |
SCREW,M8 x 50mm
|
ZED
M8 x 50 Superseded by part number: 43130
|
| 17. |
300510
|
[1] |
BOLT,Hex, M8 x 65mm, Cl 8.8
|
NH
|
| 18. |
84005807
|
[1] |
SUPPORT
|
ZED
Upper, Serial Range: -C519
|
| 18. |
87351343
|
[1] |
SUPPORTING ARM
|
ZED
Upper, Start Serial: D520
|
| 18. |
84000767
|
[1] |
SUPPORT
|
ZED
Lower, Serial Range: -C519 Superseded by part number: 87352418
|
| 18. |
87352418
|
[1] |
SUPPORTING ARM
|
ZED
Lower, Start Serial: D520
|
| 19. |
84078917
|
[1] |
ARM
|
ZED
|
| 20. |
80412250
|
[1] |
LOCK NUT
|
ZED
M8 Superseded by part number: 86528579
|
| 21. |
80322357
|
[1] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 22. |
80353308
|
[1] |
NUT
|
ZED
M6 Superseded by part number: 353308
|
| 23. |
89838236
|
[1] |
ROLLER
|
ZED
, Serial Range: -C547 Superseded by part number: 47508395
|
| 23. |
87521132
|
[1] |
ROPE GUIDE ROLLER,31.5mm OD x 12mm L
|
ZED
, Start Serial: D548 Superseded by part number: 47508395
|
| 25. |
80080680
|
[1] |
LOCK WASHER
|
ZED
, Serial Range: -C547 Superseded by part number: 80680
|
| 25. |
378244
|
[1] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
, Start Serial: D548
|
| 25. |
87391155
|
[1] |
SPACER,10.5mm ID x 16mm OD x 3mm L
|
ZED
, Start Serial: D548
|
| 26. |
280136
|
[1] |
NUT,3/8"-16, G8
|
WIN
, Serial Range: -C547
|
| 27. |
84018757
|
[1] |
BOLT,M10 x 1.5 x 160mm, CL 4.6
|
ZED
M10 x 160
|
| 28. |
86977789
|
[1] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
, Serial Range: -C547
|
| 28. |
43118
|
[1] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
, Start Serial: D548 Superseded by part number: 120102
|
| 29. |
80799339
|
[1] |
U-BOLT
|
ZED
, Serial Range: -C547 Superseded by part number: 799339
|
| 29. |
370004
|
[1] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
, Start Serial: D548 Superseded by part number: 11068376
|
| 30. |
84429814
|
[1] |
GUIDE BUSHING
|
ZED
, Serial Range: -C547
|
| 30. |
87331610
|
[1] |
GUIDE
|
ZED
, Start Serial: D548
|
| 31. |
86514720
|
[1] |
NUT
|
WIN
M10 Superseded by part number: 190003888452
|
| 32. |
80378244
|
[1] |
LOCK WASHER
|
ZED
10 MM Superseded by part number: 378244
|
| 33. |
89838888
|
[1] |
SPRING
|
ZED
Superseded by part number: 858027
|
| 34. |
86588450
|
[1] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 35. |
84022924
|
[1] |
STEP BOLT,3/8" - 16 x 2.17"
|
ZED
, Serial Range: -C547
|
| 35. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
, Start Serial: D548
|
| 36. |
9838900
|
[1] |
SUPPORT
|
ZED
Lower, Serial Range: -C547 Superseded by part number: 84056920
|
| 36. |
87528187
|
[1] |
BRACKET
|
ZED
Lower, Start Serial: D548 Superseded by part number: 87528185
|
| 36. |
84320035
|
[1] |
SUPPORT
|
ZED
Upper, Serial Range: -C547
|
| 36. |
87528185
|
[1] |
BRACKET
|
ZED
Upper, Start Serial: D548
|
| 37. |
89838895
|
[1] |
DRIVEN SPROCKET
|
ZED
Z= 16, Serial Range: -C547 Superseded by part number: 9838895
|
| 37. |
87382295
|
[2] |
GEAR
|
ZED
Z= 17, Start Serial: D548
|
| 38. |
89838894
|
[1] |
SPACER
|
ZED
L= 19 MM, Serial Range: -C547 Superseded by part number: 9838894
|
| 38. |
87391207
|
[1] |
BUSHING
|
ZED
L= 24 MM, Start Serial: D548
|
| 39. |
89838902
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C547 Superseded by part number: 9838902
|
| 39. |
87528200
|
[1] |
BRACKET
|
ZED
, Start Serial: D548
|
| 40. |
80102043
|
[1] |
GROMMET
|
ZED
Superseded by part number: 102043
|
| 41. |
84078867
|
[1] |
FIXING PLATE
|
ZED
|
| 41. |
84078865
|
[1] |
FIXING PLATE
|
ZED
|
| 42. |
84078868
|
[1] |
CANVAS
|
ZED
|
| 42. |
84078869
|
[1] |
CANVAS
|
ZED
|
| 43. |
84032625
|
[1] |
SCRAPER BLADE
|
ZED
|
| 44. |
120062
|
[1] |
BOLT,Hex, M8 x 70mm, Cl 8.8
|
NH
, Start Serial: D480 Superseded by part number: 7120024
|
| 45. |
322358
|
[1] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
, Start Serial: D480
|
| 46. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
, Start Serial: D480 Superseded by part number: 43362
|
