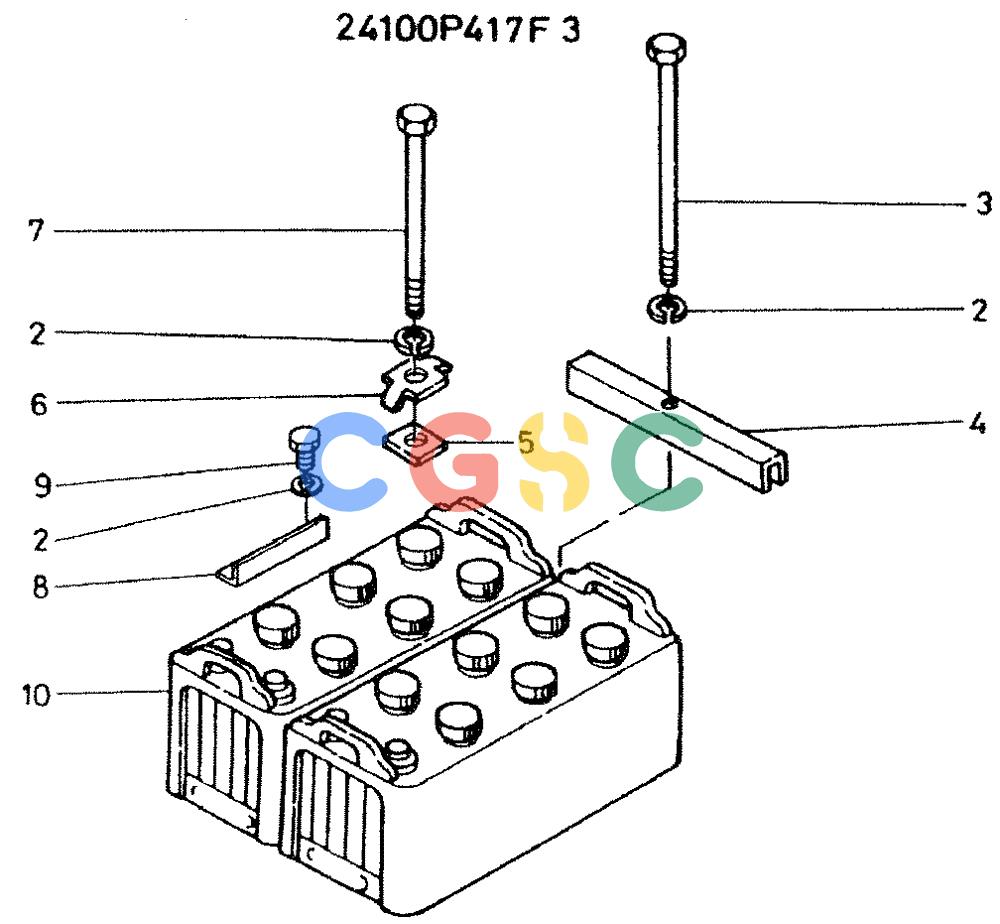

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (01-007) - MOUNT ASSY, BATTERY, P/N 24100P417F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
748 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P417F3 | [1] | MOUNT ASSY, BATTERY CONSISTS OF REF. 2 TO 10 | |
| 2. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 3. | R20T0084D1 | [1] | SCREW | KOBM10x1.50x275mm |
| 4. | B16T0039 | [1] | SUPPORT | |
| 5. | B1610041 | [1] | PLATE | |
| 6. | B16T0040 | [1] | PLATE | |
| ?. | R20T0084D2 | [1] | CAPSCREW | KOBSCREW M10x1.50x235mm |
| 8. | 2416T4473 | [1] | BRACKET | |
| 9. | ZS11C10020 | [2] | CAPSCREW M10x1.50x20mm | CAPSCREW M10x1.50x20mm |
| 10. | 2484U106 | [2] | BATTERY | |
