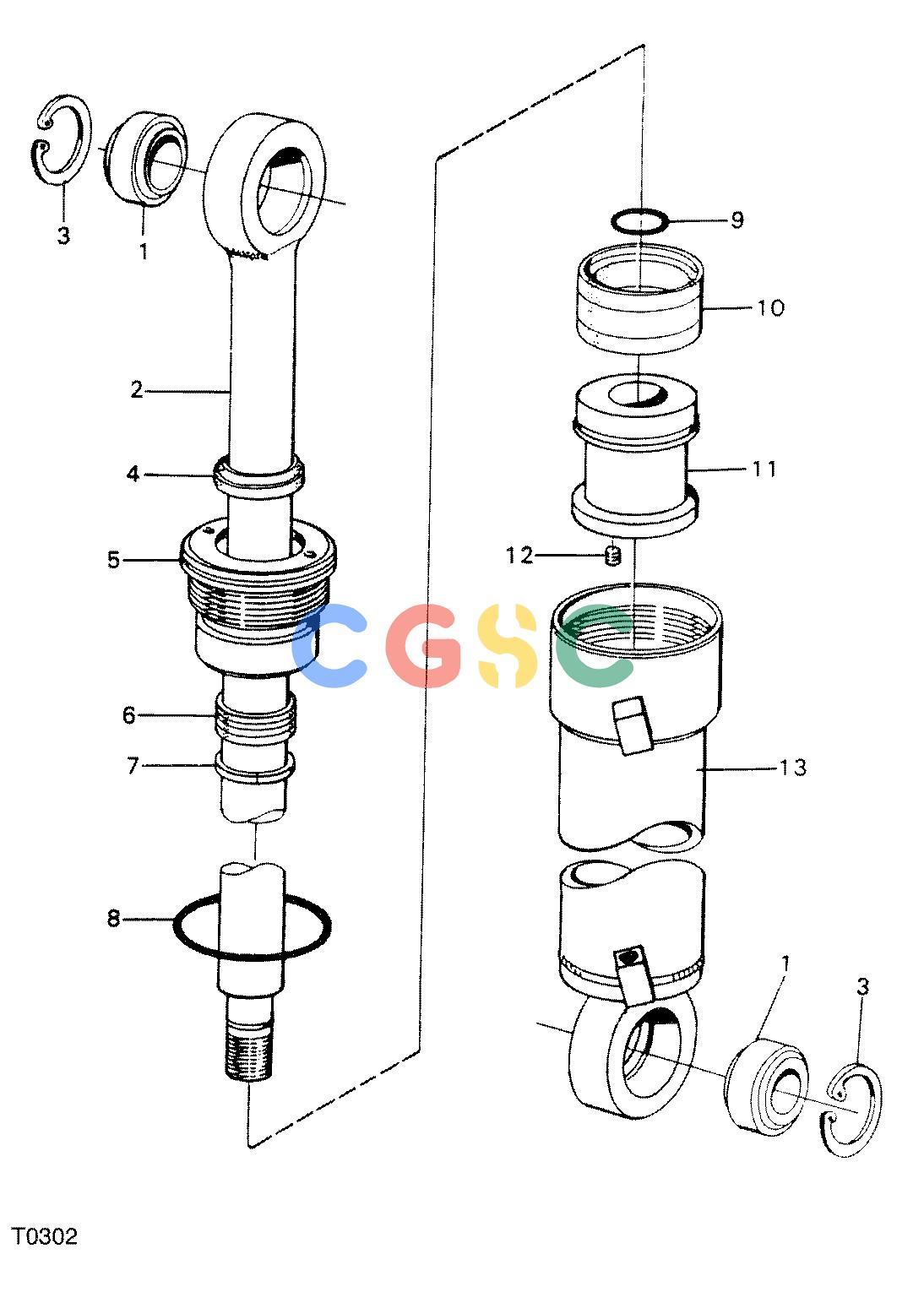

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE CYLINDER F042138 11 56 T0302 [T0302]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F003226
|
[1] |
Cylinder
|
|
| 1. |
F003820
|
[2] |
SPHERICAL BEARING
|
|
| 2. |
F008713
|
[1] |
PISTON ROD
|
|
| 3. |
F003373
|
[4] |
CIRCLIP
|
|
| 4. |
F011473
|
[1] |
Scraper
|
|
| 5. |
F035250
|
[1] |
PISTON GUIDE
|
|
| 6. |
F035251
|
[1] |
Seal
|
|
| 7. |
F035252
|
[2] |
Ring
|
|
| 8. |
F012866
|
[1] |
O-Ring
|
|
| 9. |
F035253
|
[1] |
O-Ring
|
|
| 10. |
F035254
|
[1] |
Seal
|
|
| 11. |
F035255
|
[1] |
Piston
|
|
| 12. |
F014887
|
[1] |
STOP SCREW
|
|
| 13. |
F035256
|
[1] |
CYLINDER TUBE
|
|
| |
F003225
|
[1] |
Seal Kit
|
|
