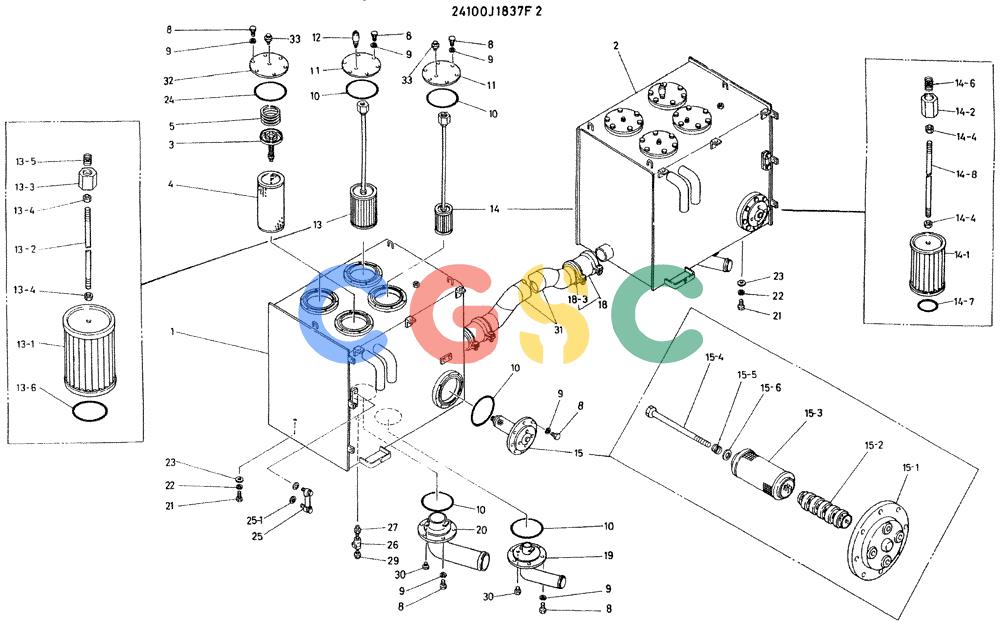

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (01-009) - TANK ASSY, HYDR, P/N 24100J1837F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
428 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1837F2 | [1] | TANK ASSY. HYDR CONSISTS OF REF. 1 TO 32 | |
| 1. | 2427J667 | [1] | TANK, HYDR | |
| 2. | 2427J670 | [1] | TANK, HYDR | |
| 3. | 2446R131 | [4] | VALVE | KOB |
| 4. | R36P0012 | [4] | ELEMENT | KOB Superseded by part number: 24046Z2P |
| 5. | 2417T296 | [4] | SPRING | KOB |
| 8. | ZS12C10025 | [88] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 9. | ZW22X10000 | [88] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 10. | ZD11G16500 | [10] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 11. | 2418T4571 | [4] | FLANGE | |
| 12. | 2436Z270D1 | [2] | SAFETY VALVE | KOB |
| 13. | 2446R116F1 | [2] | STRAINER ELEMENT | KOBCONSISTS OF REF. 13-1 TO 13-6 |
| 13-1. | 2446R116E1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446R116F3, 77259136 |
| 13-2. | 2446R116S2 | [1] | BOLT | |
| 13-3. | 2446R110S2 | [1] | HOLDER | KOB |
| 13-4. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 13-5. | 2446R110S6 | [1] | SPRING | KOB |
| 13-6. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 14. | 2446R110F3 | [2] | STRAINER CONSISTS OF REF. 14-1 TO 14-8 | STRAINER CONSISTS OF REF. 14-1 TO 14-8 |
| 14-1. | 2446R110S1 | [1] | STRAINER ELEMENT | KOB |
| 14-2. | 2446R110S2 | [1] | HOLDER | KOB |
| 14-4. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 14-6. | 2446R110S6 | [1] | SPRING | KOB |
| 14-7. | 45Z91D53 | [1] | O-RING | KOB |
| 14-8. | 2446R110S8 | [1] | BOLT | |
| 15. | R36N0008F1 | [2] | FILTER CONSISTS OF REF. 15-2 TO 15-10 | FILTER CONSISTS OF REF. 15-2 TO 15-10 |
| 15-2. | R36N0008E2 | [1] | MAGNET | KOB |
| 15-3. | R36N0008E3 | [1] | STRAINER ELEMENT | KOB |
| 15-4. | R36N0008E4 | [1] | BOLT | |
| 15-5. | R36N0008E5 | [1] | SPRING | |
| 15-6. | R36N0008E6 | [1] | SEAL | SEAL |
| 15-7. | ZD11G12500 | [1] | O-RING,3.1mm Thk x 124.4mm ID, 70 Duro | KOBO-Ring -- ID 124.4 ± 1.01 x OD 130mm |
| 15-8. | R36N0008E8 | [1] | COVER | |
| 15-9. | ZS23C06012 | [2] | SCREW,Hex Socket Head, M6 x 12mm | KOBM06x1.0x12mm |
| 15-10. | R36N0008E10 | [1] | FLANGE | |
| 18. | R44P0089D3 | [2] | COUPLING INCL. REF. 18-3 | COUPLING INCL. REF. 18-3 |
| 18-3. | R44P0089D3S3 | [2] | GASKET | GASKET |
| 19. | 2418P3716 | [2] | PIPE | PIPE |
| 20. | 2418P3717 | [2] | PIPE | PIPE |
| 21. | ZS12C16040 | [8] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 22. | ZW22X16000 | [8] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 23. | ZW11X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 24. | ZD11G19000 | [4] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 25. | 2489Z204D1 | [2] | LEVEL GAUGE | KOBINCL. REF. 25-1 |
| 25-1. | R45T0004D7 | [4] | WASHER | KOB |
| 26. | ZG52U08000 | [1] | TEE | KOB |
| 27. | ZG22E08000 | [1] | NIPPLE | NIPPLE |
| 29. | R44P0012D1 | [2] | COCK, DRAIN | COCK, DRAIN |
| 30. | R20T0133D2 | [2] | PLUG | PLUG |
| 31. | 2418P4177 | [1] | PIPE | PIPE |
| 32. | 2418T4625D2 | [4] | FLANGE | |
| 33. | 2436Z277 | [2] | BLEEDER | KOB |
| . . | 24046Z2 | [1] | ELEMENT | HITCONSISTS OF THE FOLLOWING REF. Superseded by part number: 24046Z2P, 77250281 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONELEMENT, FILTER |
