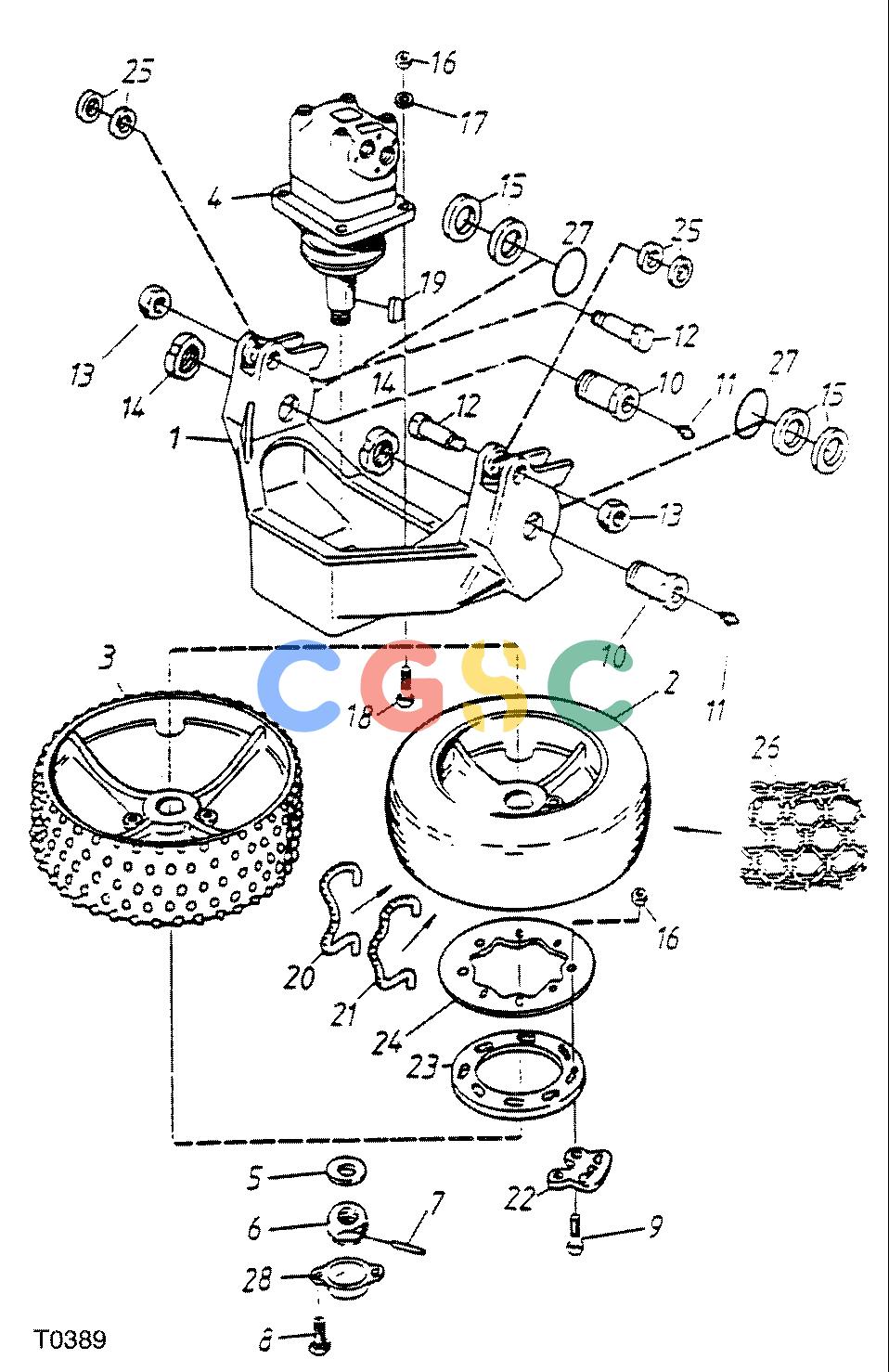

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE FEED ROLL F042138 11 8 T0389 [T0389]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
845 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024746
|
[1] |
WHEEL MOUNTING
|
|
| |
F024747
|
[1] |
WHEEL MOUNTING
|
|
| 2. |
F024748
|
[1] |
FEED ROLL
|
|
| |
F024749
|
[1] |
FEED ROLL
|
|
| |
F036609
|
[1] |
FEED ROLL
|
|
| |
F052831
|
[1] |
Roller
|
|
| |
F052833
|
[1] |
Roller
|
|
| |
F052832
|
[13] |
PARTS OF CRAWLER CHAINS
|
|
| |
F052839
|
[13] |
Shackle
|
|
| 3. |
F024750
|
[1] |
SPIKED ROLL
|
|
| |
F024751
|
[1] |
SPIKED ROLL
|
|
| 4. |
F034495
|
[1] |
Hydraulic Motor
|
|
| 5. |
F024743
|
[1] |
Washer
|
|
| 6. |
F024740
|
[1] |
CASTLE NUT
|
|
| 7. |
F003621
|
[1] |
Spring Pin
|
|
| 8. |
F003548
|
[2] |
Screw
|
|
| 9. |
F011422
|
[8] |
Screw
|
|
| 10. |
F024753
|
[2] |
Pin
|
|
| 11. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 12. |
F030851
|
[2] |
Pin
|
|
| 13. |
F024735
|
[2] |
Lock Nut
|
|
| 14. |
F024754
|
[2] |
Lock Nut
|
|
| 15. |
F024755
|
[4] |
Spacer
|
|
| |
F024756
|
|
Spacer
|
|
| 16. |
F003591
|
[12] |
Lock Nut
|
|
| 17. |
F003341
|
[4] |
Washer
|
|
| 18. |
F024757
|
[4] |
Screw
|
|
| 19. |
F024739
|
[1] |
Wedge
|
|
| 20. |
F024758
|
[24] |
TRACK
|
|
| 21. |
F024759
|
[24] |
TRACK
|
|
| 22. |
F024760
|
[8] |
Yoke
|
|
| 23. |
F024761
|
[1] |
FRAME PLATE
|
|
| 24. |
F024762
|
[1] |
Spacer
|
|
| 25. |
F024703
|
[4] |
Spacer
|
|
| 26. |
F024763
|
[1] |
CHAIN
|
|
| 27. |
F030994
|
[8] |
O-Ring
|
|
| 28. |
F030995
|
[1] |
Cover
|
|
