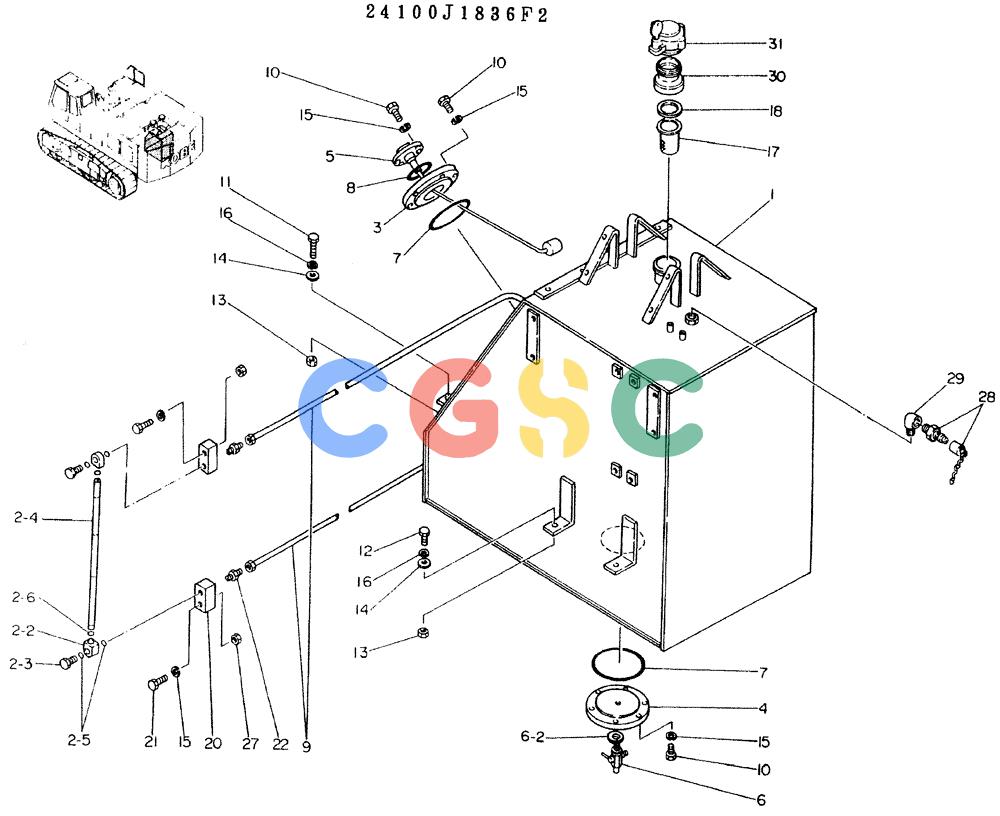

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (01-011) - TANK ASSY, FUEL, P/N 24100J1836F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1836F2 | [1] | TANK ASSY, FUEL CONSISTS OF REF. 1 TO 31 | |
| 1. | 2427J666 | [1] | TANK, FUEL | |
| 2. | 2489R149 | [1] | GAUGE/ LEVEL CONSISTS OF REF. 2-2 TO 2-6 | |
| 2-2. | 2489R149S2 | [2] | BLOCK | |
| 2-3. | 2489R149S3 | [2] | BOLT | |
| 2-4. | 2489R149S4 | [1] | GAUGE | |
| 2-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 2-6. | ZD11P01800 | [2] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 3. | 2418T4117 | [1] | FLANGE | |
| 4. | 2418T4055 | [1] | FLANGE | |
| 5. | 2427U127F1 | [1] | SENDER UNIT | KOB |
| 6. | 2436R241F1 | [1] | COCK | KOBINCL. REF. 6-2 Superseded by part number: LC20P01028P1 |
| 6-2. | B41N0094E14 | [1] | PACKING | |
| 7. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 8. | ZD11G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 9. | ZX15K08200 | [2] | TUBE | KOB |
| 10. | ZS11C10025 | [16] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 11. | ZS11C12045 | [2] | CAPSCREW M12x1.75x45mm | CAPSCREW M12x1.75x45mm |
| 12. | ZS11C12075 | [4] | CAPSCREW M12x1.75x75mm | CAPSCREW M12x1.75x75mm |
| 13. | ZN11C12010 | [6] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 14. | ZW11X16000 | [6] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 15. | ZW22X10000 | [18] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 16. | ZW22X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 17. | W14P0020E3 | [1] | STRAINER ELEMENT | KOB |
| 18. | W14P0020E4 | [1] | PACKING | KOB |
| 20. | 2416T4744 | [2] | BLOCK | |
| 21. | ZS11C10060 | [2] | CAPSCREW -- M10x1.50x60mm | |
| 22. | ZH21K08006 | [4] | HYD CONNECTOR | KOB |
| 27. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 28. | 2444Z1793 | [1] | COUPLER | |
| 29. | ZG31B16000 | [1] | ELBOW | KOB |
| 30. | 2414T1081 | [1] | NECK, FILLER | |
| 31. | 2414R127 | [1] | CAP | |
