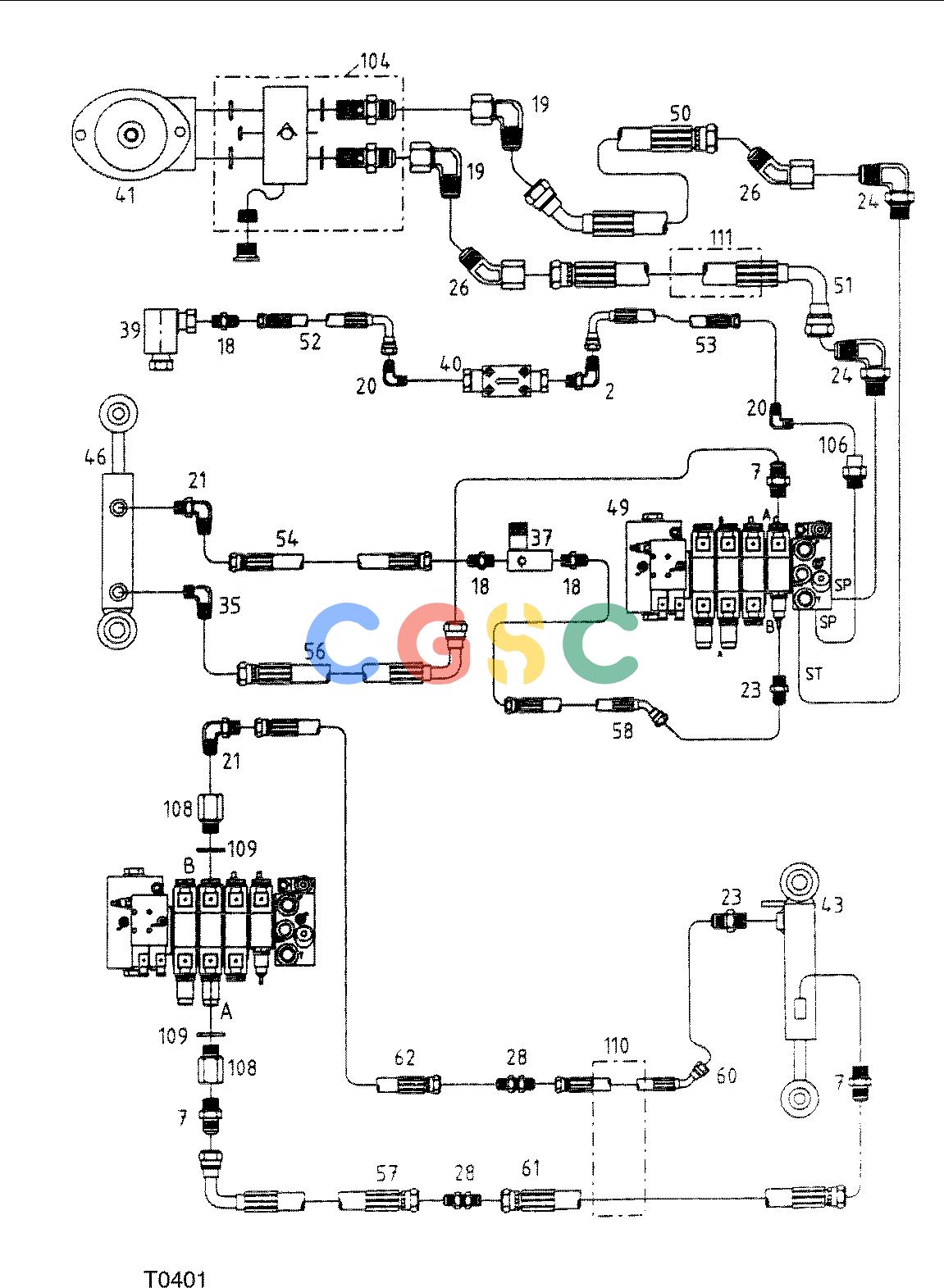

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042138 11 46.2 T0401 [T0401]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
F031937
|
[1] |
CONNECTION
|
|
| 7. |
F005055
|
[6] |
NIPPLE
|
|
| 11. |
F031883
|
[1] |
CONNECTION
|
|
| 18. |
F031896
|
[3] |
CONNECTION
|
|
| 19. |
F011482
|
[2] |
ELBOW NIPPLE
|
|
| 20. |
F031885
|
[2] |
CONNECTION
|
|
| 21. |
F031897
|
[1] |
CONNECTION
|
|
| 23. |
F031898
|
[2] |
CONNECTION
|
|
| 24. |
F023026
|
[2] |
CONNECTION
|
|
| 26. |
F005089
|
[2] |
ELBOW NIPPLE
|
|
| 28. |
F031938
|
[2] |
CONNECTION
|
|
| 35. |
F031939
|
[2] |
CONNECTION
|
|
| 37. |
F008675
|
[1] |
Check Valve
|
|
| 39. |
F003214
|
[1] |
SHAFT COUPLING
|
|
| 40. |
F002938
|
[1] |
Oil Pump
|
|
| |
F031886
|
[1] |
Pump
|
|
| 41. |
F024732
|
[1] |
Hydraulic Motor
|
|
| 43. |
F024721
|
[1] |
Cylinder
|
|
| 46. |
F024733
|
[1] |
Hydraulic Cylinder
|
|
| 49. |
F031887
|
[1] |
VALVE BLOCK
|
|
| 50. |
F031888
|
[1] |
HOSE-ASSY
|
|
| 51. |
F031940
|
[1] |
HOSE-ASSY
|
|
| 52. |
F031941
|
[1] |
HOSE-ASSY
|
|
| 53. |
F031942
|
[1] |
HOSE-ASSY
|
|
| 54. |
F031943
|
[1] |
HOSE-ASSY
|
|
| 56. |
F031944
|
[1] |
HOSE-ASSY
|
|
| 57. |
F014738
|
[1] |
HOSE-ASSY
|
|
| 58. |
F031946
|
[1] |
HOSE-ASSY
|
|
| 60. |
F031947
|
[1] |
HOSE-ASSY
|
|
| 61. |
F031948
|
[1] |
HOSE-ASSY
|
|
| 62. |
F033380
|
[1] |
HOSE-ASSY
|
|
| 104. |
F031950
|
[1] |
VALVE BLOCK
|
|
| |
F047911
|
[2] |
BANJO SCREW
|
|
| |
F047912
|
[1] |
BANJO SCREW
|
|
| |
F021627
|
[1] |
Seal Kit
|
|
| 106. |
F022105
|
[1] |
Valve
|
|
| 108. |
F033375
|
[2] |
CONNECTION
|
|
| 109. |
F005166
|
[2] |
SEAL RING
|
|
| 110. |
F033376
|
[1] |
HOSE PROTECTION
|
|
| 111. |
F033377
|
[1] |
HOSE PROTECTION
|
|
