纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-031) - CYLINDER ASSY, BOOM (CANOPY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
840 次

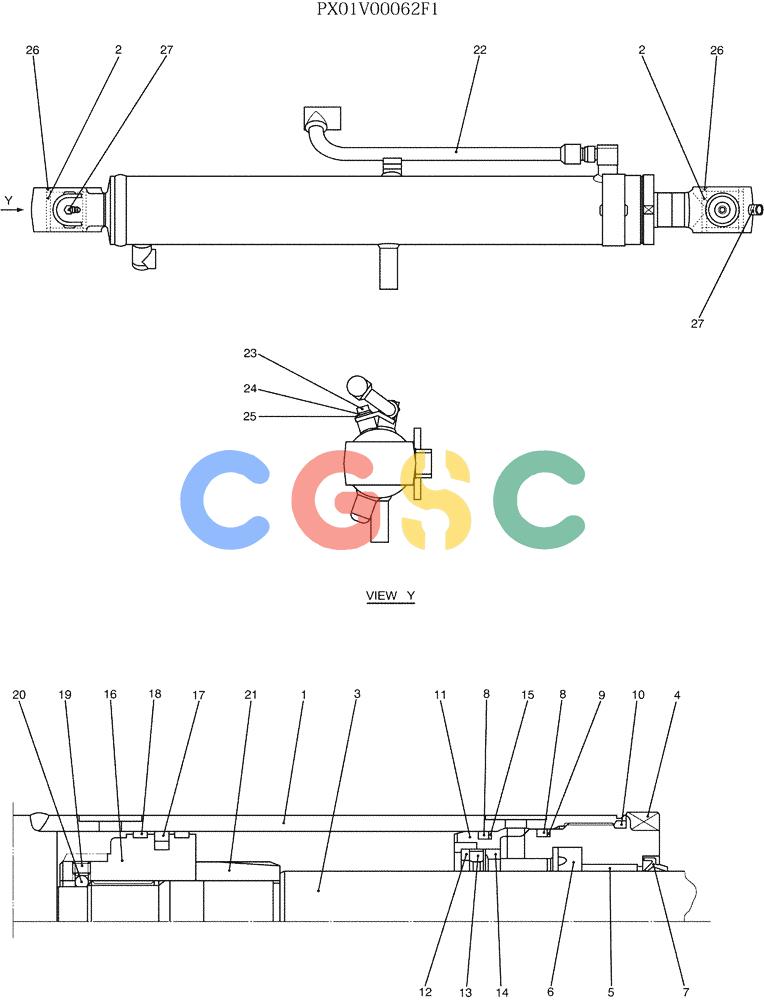

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX01V00062F1 | [1] | HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 578mm Stroke | KOBCYLINDER ASSY, BOOM, Start Serial: 0 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 2. | PW01V01086D1 | [2] | BUSHING | KOB |
| 4. | PW01V00068S004 | [1] | CYLINDER END CAP | KOBCYLINDER HEAD |
| 5. | PV01V00047S019 | [1] | BUSHING | KOBBUSHING |
| 6. | 2438U635S3 | [1] | RING | KOB |
| 7. | PH01V00006S006 | [1] | RING | KOB |
| 8. | ZD12G07500 | [2] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 9. | PH01V00015S008 | [1] | BACK-UP RING | KOB |
| 10. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 11. | PX01V00045S011 | [1] | HOLDER | KOB |
| 12. | PH01V00015S024 | [1] | CAP | KOB |
| 13. | PH01V00015S011 | [1] | SEAL | KOB |
| 15. | PW01V00014S008 | [1] | BACK-UP RING | KOB |
| 16. | PX01V00045S017 | [1] | PISTON | KOB |
| 17. | 2438U852S15 | [1] | RING | KOB |
| 18. | PW01V00068S018 | [2] | RING | KOBRING SLIDE |
| 19. | 2438U1057S16 | [1] | SET SCREW | KOB |
| 20. | 2436U946S11 | [1] | BALL | KOB |
| 21. | PX01V00045S022 | [1] | CUSHION | KOB |
| 22. | PX01V00052S022 | [1] | TUBE ASSY. | KOB |
| 23. | PM01V00060S025 | [1] | CAPSCREW | KOBSCREW CAP |
| 24. | ZW22K10000 | [1] | WASHER | KOB |
| 25. | PR01V00002S024 | [1] | WASHER | KOB Superseded by part number: ZW16P10000 |
| 26. | PR01V00002S027 | [4] | SEAL | KOB |
| 27. | ZG91V02000 | [2] | LUBE NIPPLE | KOB |
| . . | PX01V00062R100 | [1] | REPAIR KIT | KOBREPAIR KIT, CONSISTS OF REF. 1(1), 2(1), 26(2) |
| . . | PX01V00052R400 | [1] | REPAIR KIT | KOBREPAIR KIT, CONSISTS OF REF. 2(1), 3(1), 26(2) |
| . . | PX01V00045R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 6(1), 7(1), 8(2), 9(1), 10(1), 15(1), 17(1), 18(2) Superseded by part number: PW01V00043R300 |
