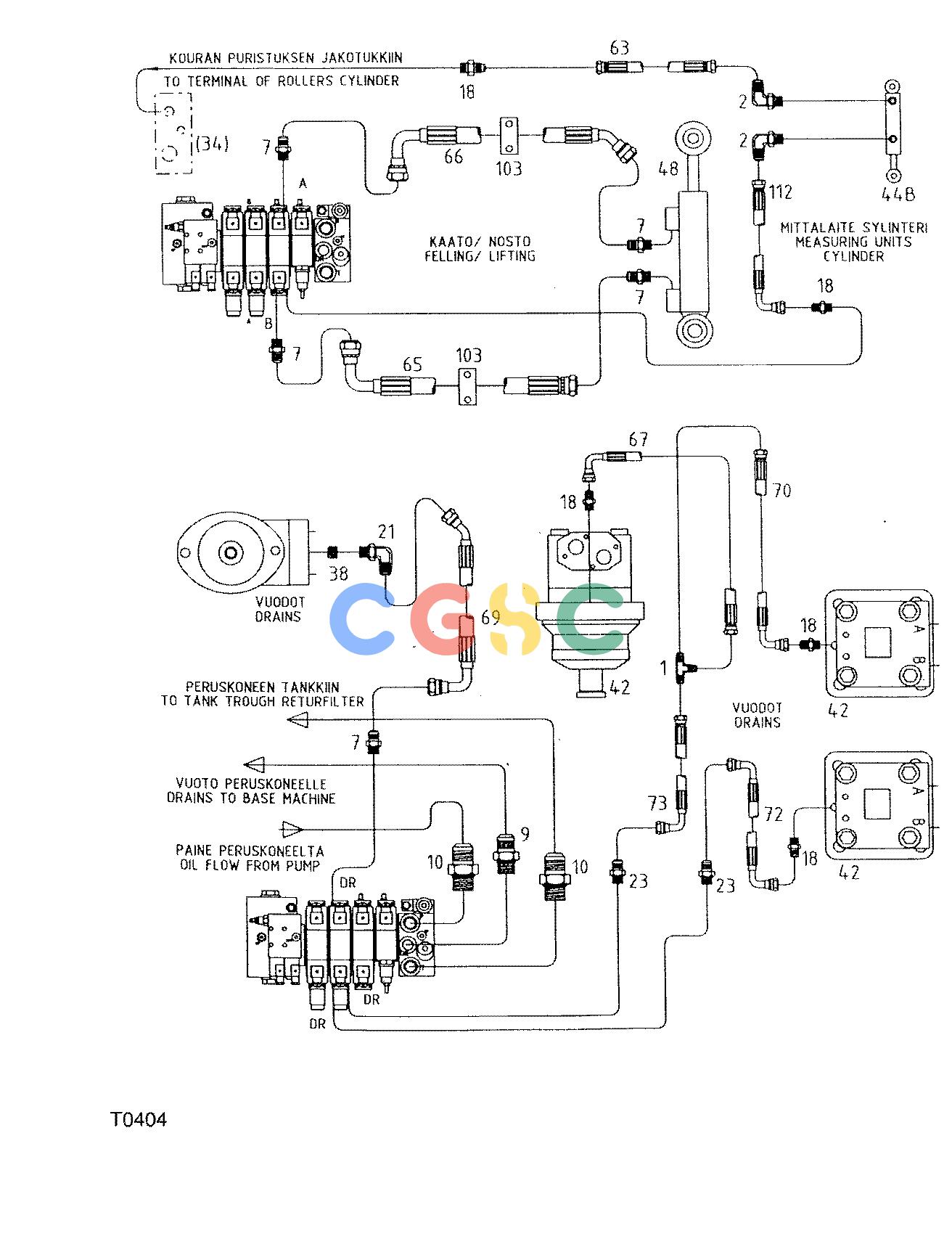

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042138 11 48.2 T0404 [T0404]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F031951
|
[1] |
CONNECTION
|
|
| 2. |
F031937
|
[2] |
CONNECTION
|
|
| 7. |
F005055
|
[5] |
NIPPLE
|
|
| 9. |
F005063
|
[1] |
NIPPLE
|
|
| 10. |
F005095
|
[2] |
NIPPLE
|
|
| 18. |
F031896
|
[5] |
CONNECTION
|
|
| 21. |
F031897
|
[1] |
CONNECTION
|
|
| 23. |
F031898
|
[2] |
CONNECTION
|
|
| 38. |
F008653
|
[1] |
Check Valve
|
|
| 42. |
F034495
|
[3] |
Hydraulic Motor
|
|
| 48. |
F003226
|
[1] |
Cylinder
|
|
| 63. |
F033381
|
[1] |
HOSE-ASSY
|
|
| 65. |
F031900
|
[1] |
HOSE-ASSY
|
|
| 66. |
F031901
|
[1] |
HOSE-ASSY
|
|
| 67. |
F033390
|
[1] |
HOSE-ASSY
|
|
| 69. |
F031903
|
[1] |
HOSE-ASSY
|
|
| 70. |
F001500
|
[1] |
HOSE-ASSY
|
|
| 72. |
F031905
|
[1] |
HOSE-ASSY
|
|
| 73. |
F031954
|
[1] |
HOSE-ASSY
|
|
| 103. |
F008059
|
[2] |
Hose Clamp
|
|
| 112. |
F031902
|
[1] |
HOSE-ASSY
|
|
