纽荷兰零件查询(E35SR) - COMPACT CRAWLER EXCAVATOR ASN PX13-15001 (N6TN61732) (NA) (1/06-) (07-036) - CYLINDER ASSY, SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
508 次

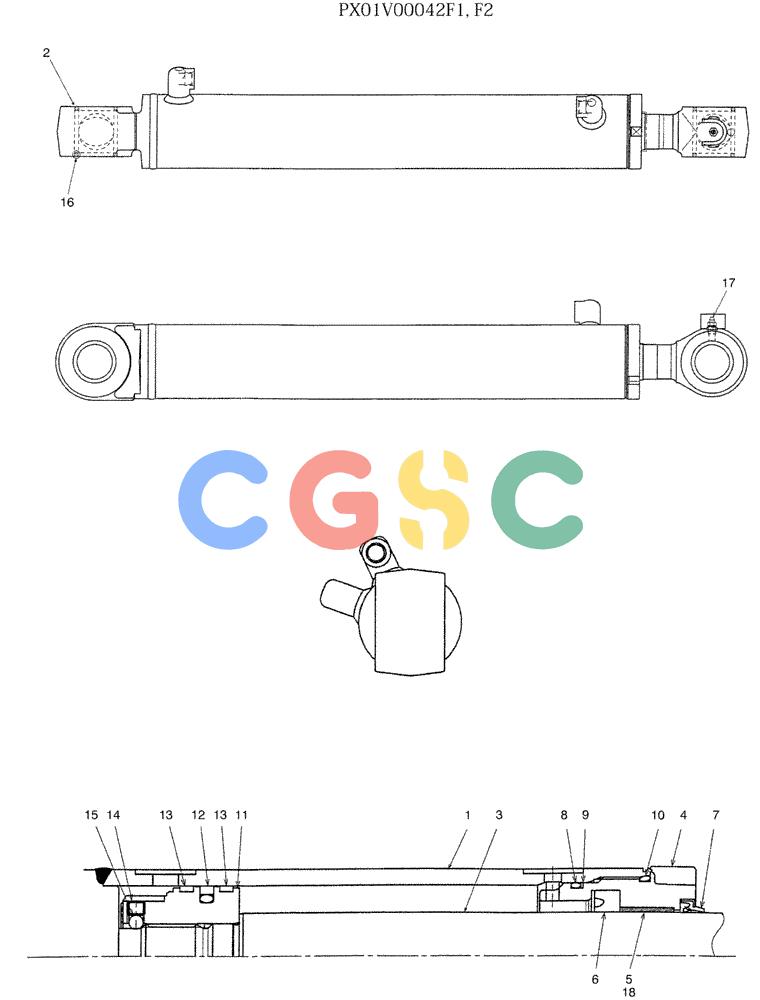

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PX01V00042F1 | [1] | CYLINDER | KOBCYLINDER ASSY, SWING Superseded by part number: PX01V00042F2 |
| . . | PX01V00042F2 | [1] | HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 488mm Stroke | KOBCYLINDER ASSY, SWING |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 2. | PX01V00042S002 | [2] | BUSHING | KOB |
| 4. | PX01V00042S004 | [1] | CYLINDER HEAD | KOB Superseded by part number: PW01V00068S004 |
| 5. | 2438U1169S4 | [1] | BUSHING | KOB(F1 ONLY) Superseded by part number: 2405U104D045025 |
| 6. | 2438U635S3 | [1] | RING | KOB |
| 7. | PH01V00006S006 | [1] | RING | KOB |
| 8. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 9. | PH01V00015S008 | [1] | BACK-UP RING | KOB |
| 10. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 11. | PX01V00042S011 | [1] | PISTON | KOB |
| 12. | 2438U852S15 | [1] | RING | KOB |
| 13. | PH01V00015S017 | [2] | RING | KOB |
| 14. | 2438U1057S16 | [1] | SET SCREW | KOB |
| 15. | 2436U946S11 | [1] | BALL | KOB |
| 16. | PR01V00002S027 | [4] | SEAL | KOB |
| 17. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| 18. | PV01V00047S019 | [1] | BUSHING | KOBBUSHING, (F2 ONLY) |
| . . | PX01V00042R100 | [1] | TUBE | KOBREPAIR KIT, CONSISTS OF REF. 1(1), 2(1), 16(2) |
| . . | PX01V00042R200 | [1] | ROD | KOBREPAIR KIT, CONSISTS OF REF. 2(1), 3(1), 16(2) |
| . . | PX01V00042R300 | [1] | SEAL | KOBCONSISTS OF REF. 6(1), 7(1), 8(1), 9(1), 10(1), 12(1), 13(2) |
