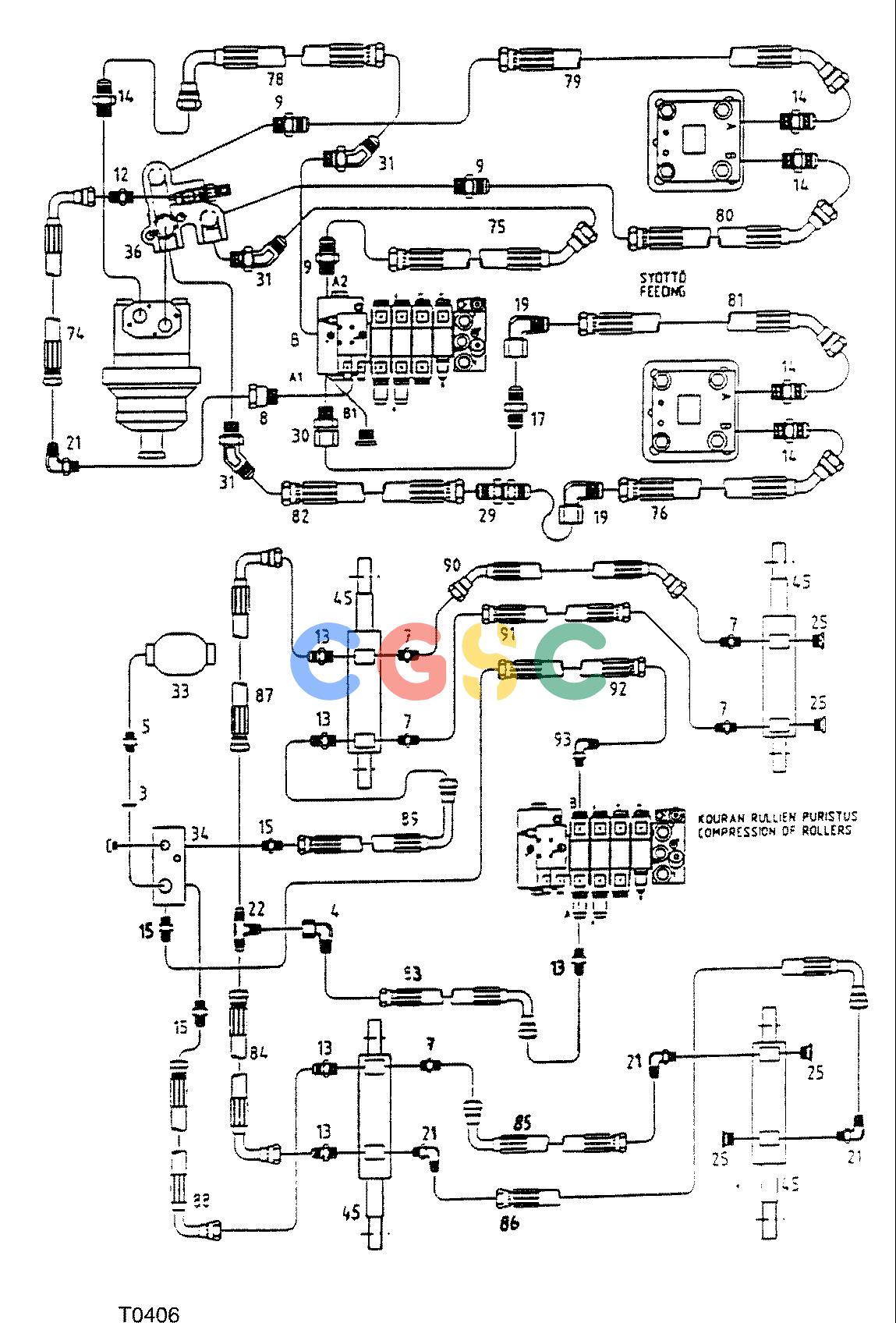

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042138 11 50.1 T0406 [T0406]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
F005168
|
[1] |
SEAL RING
|
|
| 4. |
F031907
|
[1] |
REPLACED
|
|
| 5. |
F004360
|
[1] |
NIPPLE
|
|
| 7. |
F005055
|
[5] |
NIPPLE
|
|
| 8. |
F031908
|
[1] |
CONNECTION
|
|
| 9. |
F005063
|
[4] |
NIPPLE
|
|
| 12. |
F031909
|
[1] |
CONNECTION
|
|
| 13. |
F005060
|
[6] |
NIPPLE
|
|
| 14. |
F031910
|
[5] |
CONNECTION
|
|
| 15. |
F031911
|
[3] |
CONNECTION
|
|
| 17. |
F031912
|
[1] |
CONNECTION
|
|
| 19. |
F011482
|
[2] |
ELBOW NIPPLE
|
|
| 21. |
F031897
|
[4] |
CONNECTION
|
|
| 22. |
F010124
|
[1] |
T-CONNECTION
|
|
| 25. |
F024820
|
[4] |
Plug
|
|
| 29. |
F031913
|
[1] |
CONNECTION
|
|
| 30. |
F031914
|
[1] |
CONNECTION
|
|
| 31. |
F031915
|
[3] |
CONNECTION
|
|
| 33. |
F031916
|
[1] |
Reservoir
|
|
| 34. |
F031917
|
[1] |
BLOCK
|
|
| 36. |
F031918
|
[1] |
BLOCK
|
|
| |
F008602
|
[1] |
Relief Valve
|
|
| |
F008603
|
[1] |
Seal Kit
|
|
| 45. |
F024822
|
[4] |
Cylinder
|
|
| 74. |
F031983
|
[1] |
HOSE-ASSY
|
|
| 75. |
F031920
|
[1] |
HOSE-ASSY
|
|
| 76. |
F031921
|
[1] |
HOSE-ASSY
|
|
| 78. |
F031984
|
[1] |
HOSE-ASSY
|
|
| 79. |
F031923
|
[1] |
HOSE-ASSY
|
|
| 80. |
F031924
|
[1] |
HOSE-ASSY
|
|
| 81. |
F031925
|
[1] |
HOSE-ASSY
|
|
| 82. |
F031926
|
[1] |
HOSE-ASSY
|
|
| 83. |
F031927
|
[1] |
HOSE-ASSY
|
|
| 84. |
F031928
|
[1] |
HOSE-ASSY
|
|
| 85. |
F031929
|
[1] |
HOSE-ASSY
|
|
| 86. |
F031930
|
[1] |
HOSE-ASSY
|
|
| 87. |
F031931
|
[1] |
HOSE-ASSY
|
|
| 88. |
F031932
|
[1] |
HOSE-ASSY
|
|
| 89. |
F031933
|
[1] |
HOSE-ASSY
|
|
| 90. |
F031934
|
[1] |
HOSE-ASSY
|
|
| 91. |
F031935
|
[1] |
HOSE-ASSY
|
|
| 92. |
F031985
|
[1] |
HOSE-ASSY
|
|
| 93. |
F023013
|
[1] |
CONNECTION
|
|
