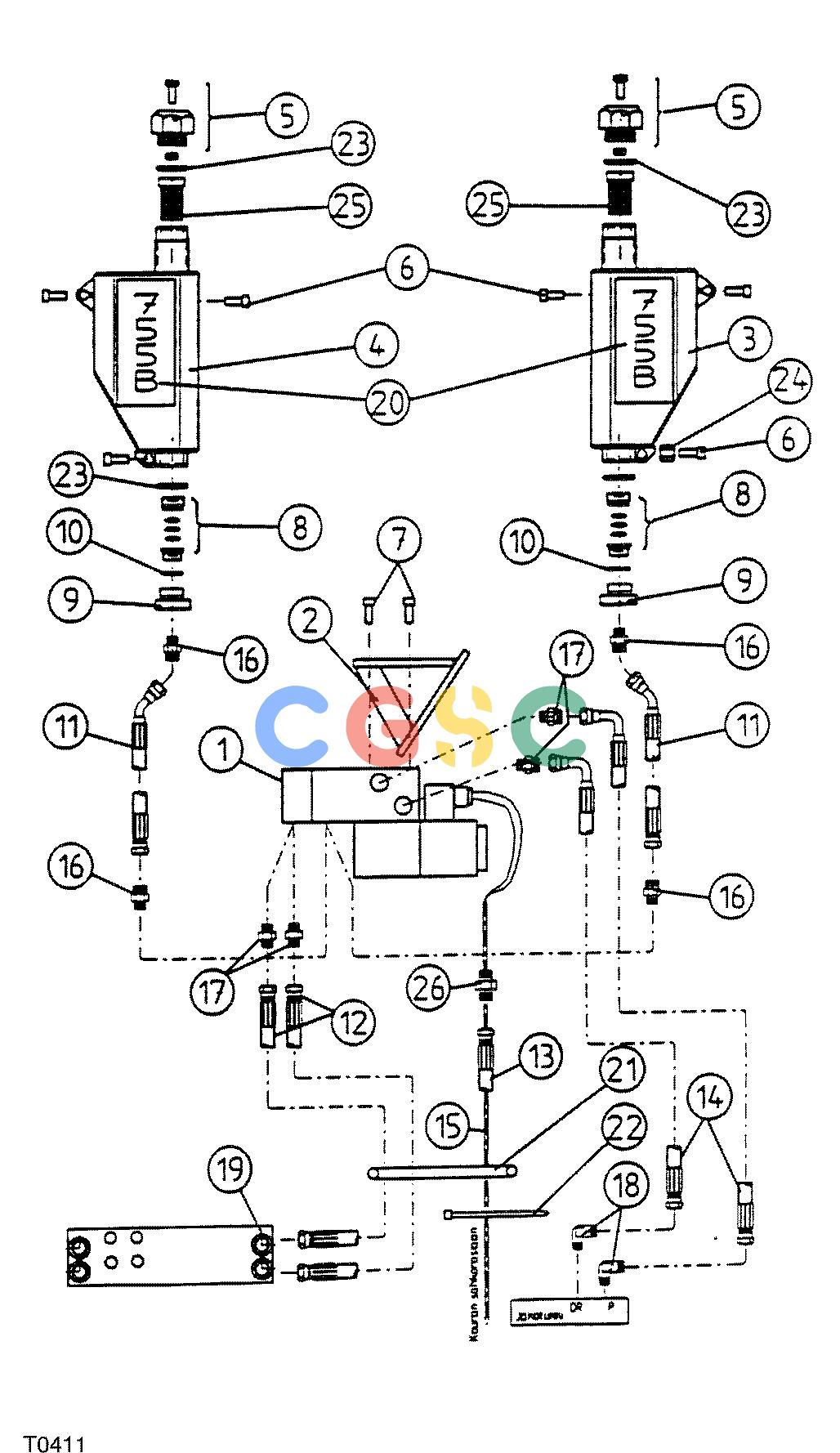

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F042138 11 70 T0411 [T0411]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F032003
|
|
PAINT MARKING DEVICE
|
|
| 1. |
F032004
|
[1] |
Pump
|
|
| 2. |
F021662
|
[1] |
Plate
|
|
| 3. |
F032005
|
[1] |
Tank
|
|
| 4. |
F032006
|
[1] |
Tank
|
|
| 5. |
F021661
|
[2] |
Plug
|
|
| 6. |
F003424
|
[6] |
Screw
|
|
| 7. |
F003410
|
[4] |
Screw
|
|
| 8. |
F022165
|
[2] |
Filter
|
|
| 9. |
F021651
|
[2] |
NIPPLE
|
|
| 10. |
F021653
|
[2] |
O-Ring
|
|
| 11. |
F032007
|
[2] |
HOSE-ASSY
|
|
| 12. |
F032008
|
[2] |
HOSE-ASSY
|
|
| 13. |
F032009
|
[1] |
HOSE-ASSY
|
|
| 14. |
F035449
|
[2] |
HOSE-ASSY
|
|
| 15. |
F021598
|
[1] |
CABLE HARNESS
|
|
| 16. |
F005057
|
[4] |
NIPPLE
|
|
| 17. |
F031896
|
[4] |
CONNECTION
|
|
| 18. |
F031937
|
[2] |
CONNECTION
|
|
| 19. |
F021691
|
[1] |
Frame
|
|
| 21. |
F032012
|
[1] |
Lug
|
|
| 22. |
F023452
|
[3] |
HOSE TIE
|
|
| 23. |
F021652
|
[4] |
O-Ring
|
|
| 24. |
F032013
|
[2] |
Nut
|
|
| 25. |
F023455
|
[2] |
Filter
|
|
| 26. |
F032014
|
[1] |
CONNECTION
|
|
