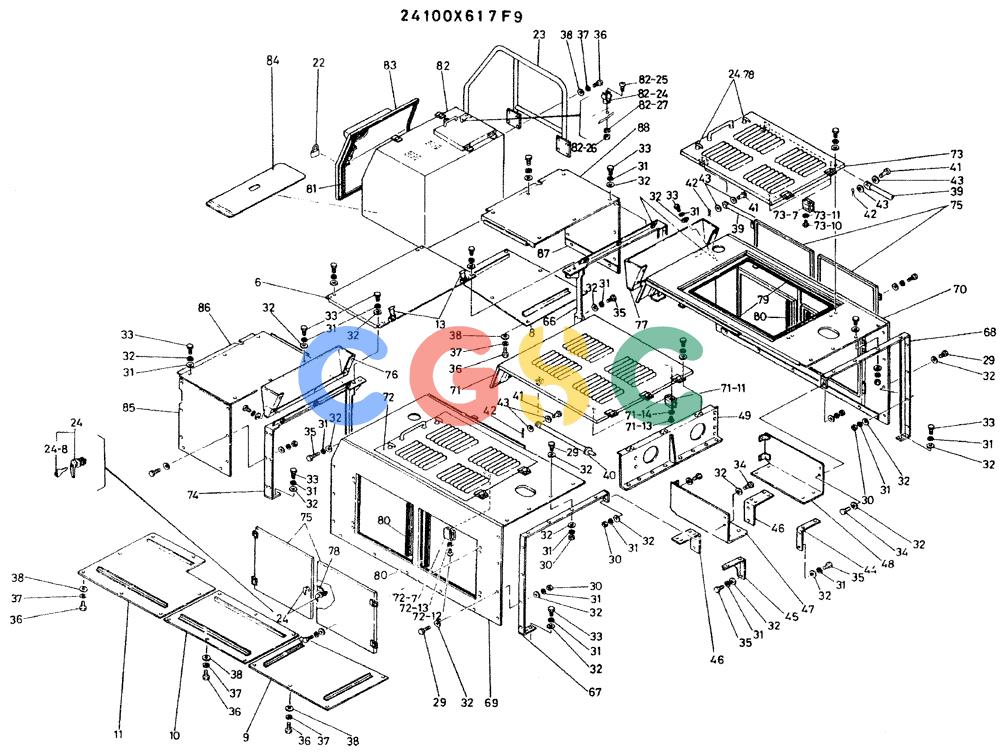

| . . | 24100X617F9 | [1] | GUARD ASSY, CONSISTS OF REF 6 TO 88 | |
| 6. | 2414P1374 | [1] | GUARD | |
| 8. | 2414P1366D2 | [1] | COVER | COVER |
| 9. | 2414P1366 | [1] | COVER | COVER |
| 10. | 2414P1370 | [1] | COVER | COVER |
| 11. | 2414P1372 | [1] | COVER | COVER |
| 13. | R27T0013D2 | [2] | LATCH | KOB |
| 22. | 21Z1 | [2] | WRENCH | KOBKEY, LOCK |
| 23. | 2406N455 | [1] | HANDRAIL | |
| 24. | 2427R171 | [8] | HANDLE | KOBINCLUCE REF 24-8 TO 24-8 |
| 24-8. | 2427R171S8 | [2] | KEY | KOB |
| 29. | ZS11C12030 | [48] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 30. | ZN11C12010 | [68] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 31. | ZW22X12000 | [100] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 32. | ZW11X12000 | [173] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 33. | ZS11C12025 | [48] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 34. | ZS11C12040 | [4] | CAPSCREW -- M12x1.75x40mm | |
| 35. | ZS11C12020 | [16] | SCREW,Hex, M12 x 20mm, Cl 4.8 | KOBM12x1.75x20mm |
| 36. | ZS11C10015 | [37] | CAPSCREW M10x1.50x15mm | CAPSCREW M10x1.50x15mm |
| 37. | ZW22X10000 | [41] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 38. | ZW11X10000 | [41] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 39. | 2406P1355D1 | [3] | STAY | |
| 40. | 2406P1355D2 | [2] | STAY | |
| 41. | ZP45X16050 | [5] | PIN -- OD 16 x 50mm Long | |
| 42. | ZP15D04040 | [5] | COTTER PIN | KOBOD 04 x 40mm Long Superseded by part number: ZP15D04050 |
| 43. | ZW11X16000 | [10] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 44. | 2416T5329D1 | [1] | BRACKET | |
| 45. | 2416T5329D2 | [1] | BRACKET | |
| 46. | 2416T5330 | [2] | BRACKET | |
| 47. | 2416P5987D2 | [1] | BRACKET | |
| 48. | 2416P5987D1 | [1] | BRACKET | |
| 49. | 2416P4123 | [1] | BRACKET | |
| 66. | 2416N1867D2 | [1] | BRACKET | BRACKET |
| 67. | 2416N2215 | [1] | BRACKET | |
| 68. | 2416N2216 | [1] | BRACKET | |
| 69. | 2414J752 | [1] | GUARD | |
| 70. | 2414J753 | [1] | GUARD | |
| 71. | 2414J760 | [1] | GUARD, INCLUDE REF 71-11 TO 71-14 | |
| 71-11. | 2427T519 | [2] | LOCK | LOCK |
| 71-13. | ZS31C04012 | [4] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 71-14. | ZW22X04000 | [4] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 72. | 2414N1388 | [1] | DOOR, INCLUDE REF 72-7 TO 72-13 | |
| 72-7. | 2427T519 | [1] | LOCK | LOCK |
| 72-12. | ZS31C04012 | [2] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 72-13. | ZW22X04000 | [2] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 73. | 2414N1389 | [1] | DOOR, INCLUDE REF 73-7 TO 73-11 | |
| 73-7. | 2427T519 | [2] | LOCK | LOCK |
| 73-10. | ZS31C04012 | [4] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 73-11. | ZW22X04000 | [4] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 74. | 2416N1982 | [1] | BRACKET | |
| 75. | 2414P2148 | [4] | DOOR | |
| 76. | 2427P1554D1 | [1] | DUCT | |
| 77. | 2427P1554D2 | [1] | DUCT | |
| 78. | 2418T7655 | [8] | PLATE | |
| 79. | 2416Z218D9 | [2] | SEAT, RUBBER | |
| 80. | 2416Z218D10 | [4] | SEAT, RUBBER | |
| 81. | 2416Z218D11 | [4] | SEAT, RUBBER | |
| 82. | 2427J992 | [1] | BOX, TOOL,INCLUDE REF 82-24 TO 82 | |
| 82-24. | 2427T328 | [2] | LOCK | |
| 82-25. | ZS31C05012 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 82-26. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 82-27. | ZW22X05000 | [4] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 83. | 2414N1423 | [1] | COVER | |
| 84. | 2414P2190 | [1] | COVER | |
| 85. | 2414P2423D1 | [1] | COVER | COVER |
| 86. | 2414P2424 | [1] | COVER | |
| 87. | 2414P2423D2 | [1] | COVER | |
| 88. | 2414P2425 | [1] | COVER | COVER |
