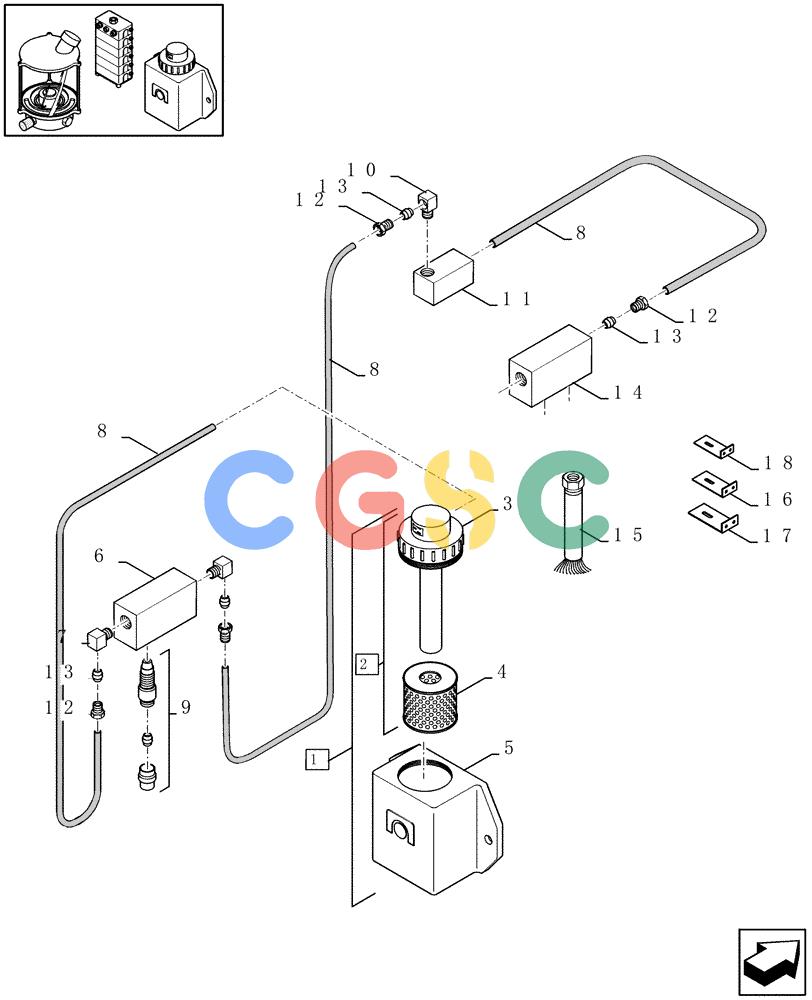

凯斯零件查询(LBX331R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (8/01-12/03) (09.02[01]) - AUTOMATIC OILING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84320115
|
[1] |
LUBE PUMP
|
ZED
, Serial Range: (2-4)
|
| 2. |
84320116
|
[1] |
SMALL PUMP
|
ZED
(3,4) Superseded by part number: 84320115
|
| 3. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Oil pump
|
| 4. |
84018926
|
[1] |
HYDRAULIC OIL FILTER
|
ZED
|
| 6. |
84320725
|
[1] |
MANIFOLD
|
ZED
|
| 6. |
84320726
|
[1] |
MANIFOLD
|
ZED
|
| 7. |
84012698
|
[1] |
ELBOW
|
ZED
G5/16"
|
| 8. |
84429057
|
[1] |
HOSE
|
ZED
5M
|
| 9. |
84012689
|
[1] |
REDUCER
|
ZED
IM22
|
| 9. |
84036721
|
[1] |
REDUCER
|
ZED
IM23
|
| 9. |
84320724
|
[1] |
REDUCER
|
ZED
IM27
|
| 10. |
84100115
|
[1] |
90 ELBOW
|
ZED
G1/8"
|
| 12. |
89817682
|
[1] |
NUT
|
ZED
M4 Superseded by part number: 576895
|
| 13. |
84015660
|
[1] |
FERRULE
|
ZED
4MM
|
| 15. |
89835044
|
[1] |
COMMUTATOR BRUSH
|
ZED
Superseded by part number: 9835044
|
| 16. |
84012717
|
[1] |
|
BRACKET
|
| 17. |
84012719
|
[1] |
|
BRACKET
|
| 18. |
84058004
|
[1] |
|
BRACKET
|
