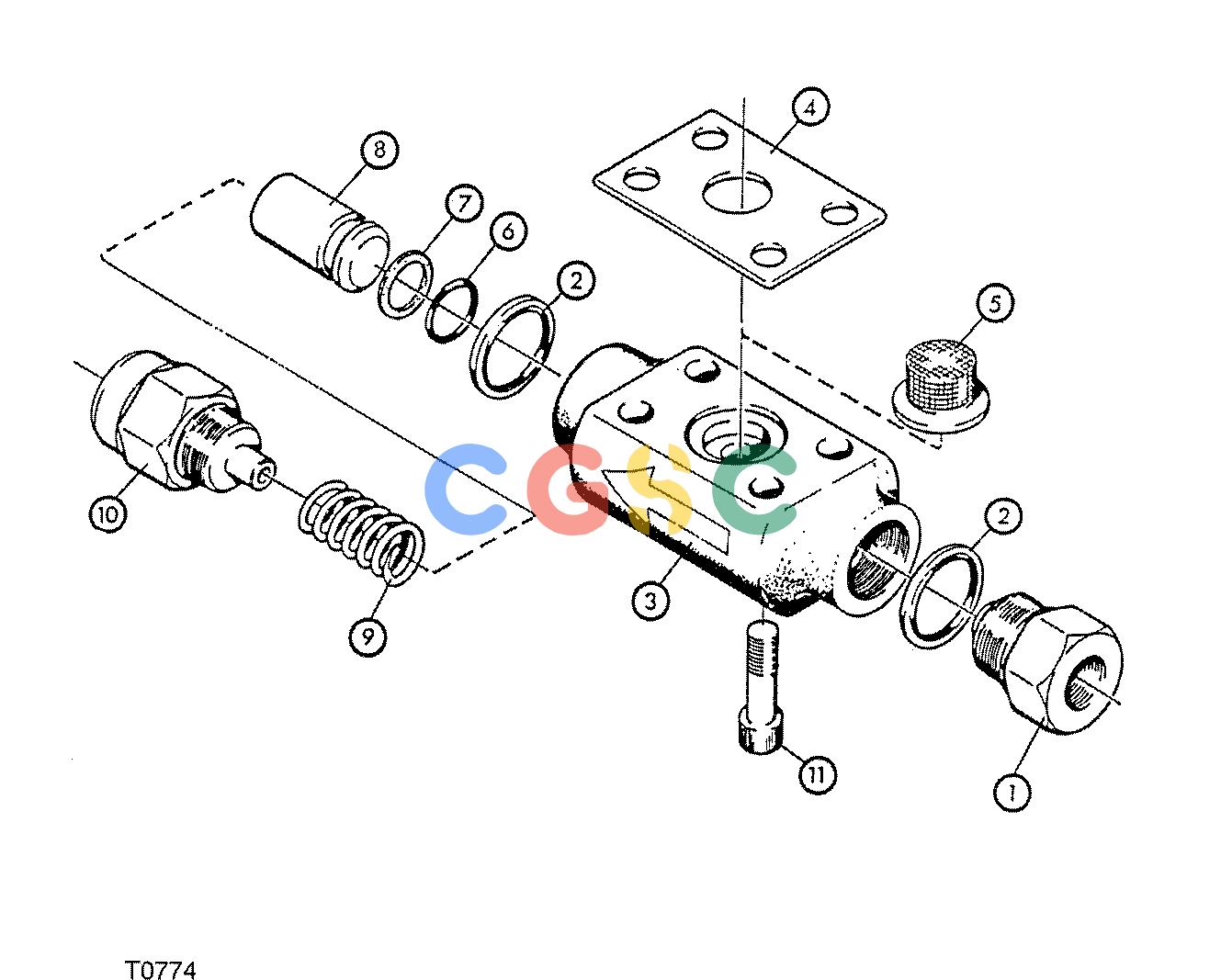

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE LUBRICATING OIL PUMP F042138 11 78 T0774 [T0774]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
372 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F002938
|
[1] |
Oil Pump
|
|
| |
F031886
|
[1] |
Pump
|
|
| 1. |
F008352
|
[1] |
CONNECTION
|
|
| 2. |
F005166
|
[2] |
SEAL RING
|
|
| 3. |
F008353
|
[1] |
Housing
|
|
| 4. |
F008354
|
[1] |
Seal
|
|
| 5. |
F008355
|
[1] |
Strainer
|
|
| 6. |
F010686
|
[1] |
O-Ring
|
|
| 7. |
F010687
|
[1] |
SUPPORT RING
|
|
| 8. |
F008356
|
[1] |
Piston
|
|
| 9. |
F010688
|
[1] |
Spring
|
|
| 10. |
F008357
|
[1] |
CONNECTION
|
|
| |
F034836
|
[1] |
NIPPLE
|
|
| 11. |
F010685
|
[4] |
Screw
|
|
| |
F012865
|
[1] |
Seal Kit
|
|
