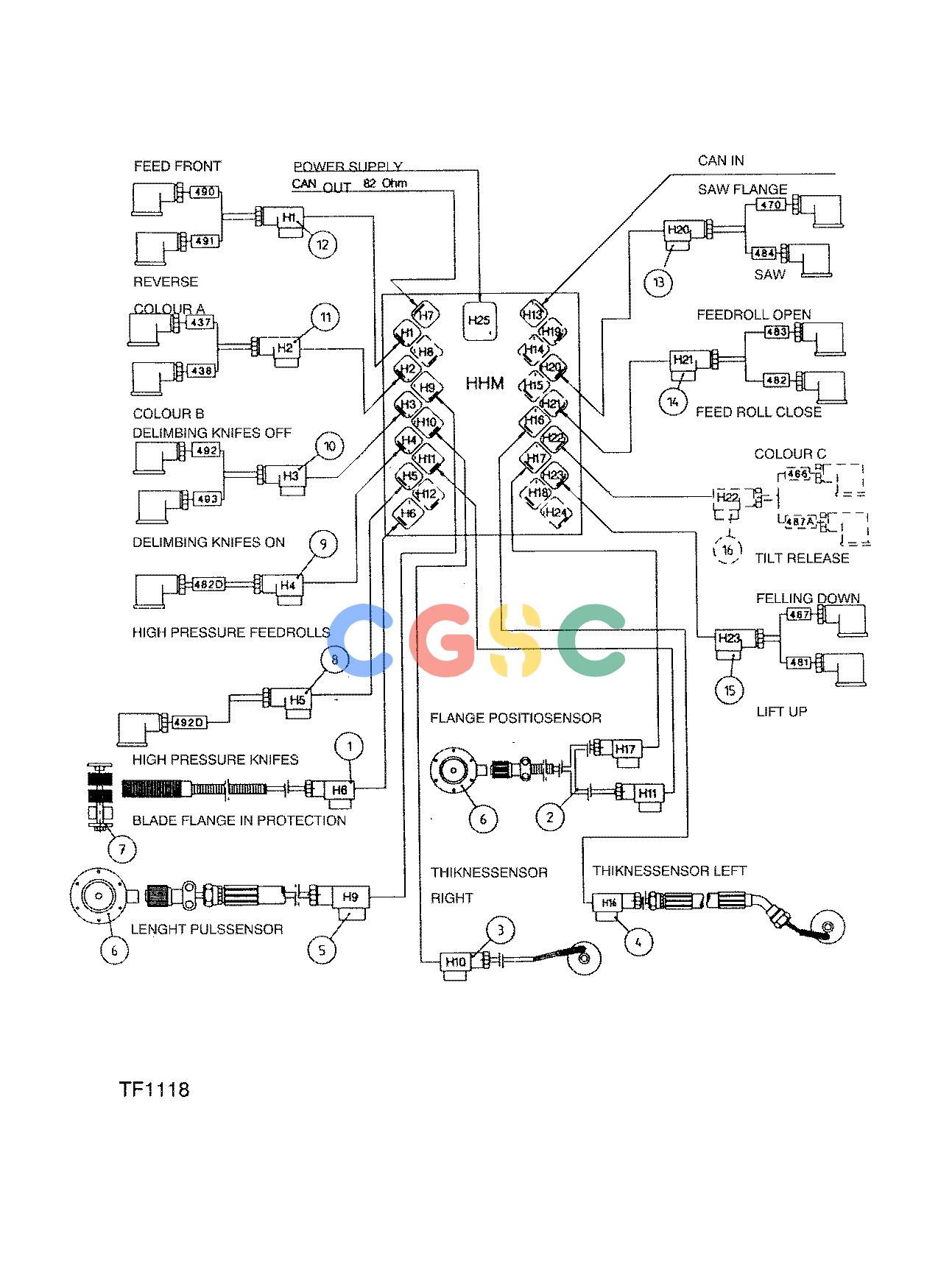

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE EL EQUIPMENTS F042138 11 44.2 TF1118 [TF1118]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F052873
|
[1] |
WIRE HARNESS
|
|
| 1. |
F032020
|
[1] |
Sensor
|
|
| |
F024842
|
[1] |
Sensor
|
|
| 2. |
F032021
|
[1] |
Cable
|
|
| 3. |
F032022
|
[1] |
Plug
|
|
| |
F035781
|
[1] |
Sensor
|
|
| 4. |
F032023
|
[1] |
Plug
|
|
| |
F035781
|
[1] |
Sensor
|
|
| |
F032025
|
[1] |
HOSE-ASSY
|
|
| 5. |
F032024
|
[1] |
Cable
|
|
| 6. |
F052863
|
[%] |
PULSE SENSOR
|
|
| |
F005559
|
[2] |
Sensor
|
|
| |
F052840
|
[1] |
HOSE-ASSY
|
|
| 7. |
F008711
|
[1] |
Holder
|
|
| 8. |
F052874
|
[1] |
Cable
|
|
| 9. |
F052875
|
[1] |
Cable
|
|
| 10. |
F052876
|
[1] |
Cable
|
|
| 11. |
F052877
|
[1] |
Cable
|
|
| 12. |
F052878
|
[1] |
Cable
|
|
| 13. |
F052879
|
[1] |
Cable
|
|
| 14. |
F052880
|
[1] |
Cable
|
|
| 15. |
F052881
|
[1] |
Cable
|
|
| 16. |
F052882
|
[%] |
Cable
|
|
