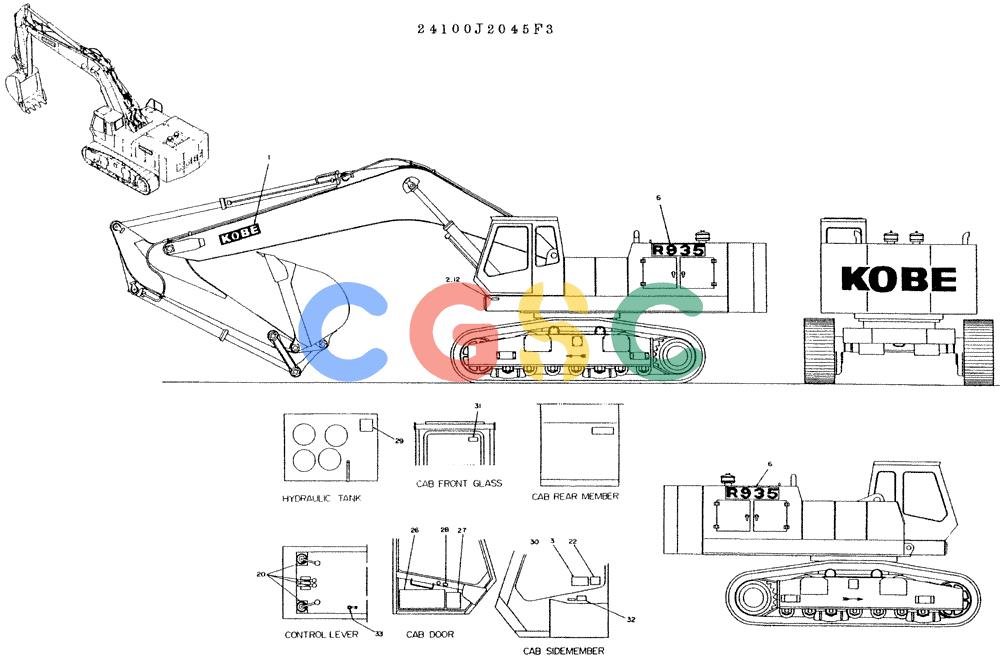

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (07-011) - LABEL NAME-PLATE, P/N 24100J2045F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2045F3 | [1] | LABEL.NAME-PLATE CONSISTS OF REF. 1 TO 25 | |
| 1. | 2432J642 | [2] | NAME-PLATE | |
| 2. | R32T0003 | [1] | LABEL | |
| 3. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 6. | 2432J604 | [2] | NAME-PLATE | |
| 12. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 20. | 2432P524 | [1] | LABEL | |
| 22. | 2432T886 | [1] | LABEL | |
| 26. | 2432J677 | [1] | CHART, LUB | |
| 27. | 2432P630 | [1] | PLATE, CAUTION | |
| 28. | 2432T1090 | [1] | LABEL | |
| 29. | 2432P639 | [2] | PLATE, CAUTION | |
| 30. | 2432T1089 | [1] | LABEL | |
| 31. | 2432T1091 | [1] | PLATE, CAUTION | |
| 32. | 2432T1092 | [1] | PLATE, CAUTION | |
| 33. | 2432T1093 | [1] | LABEL | |
